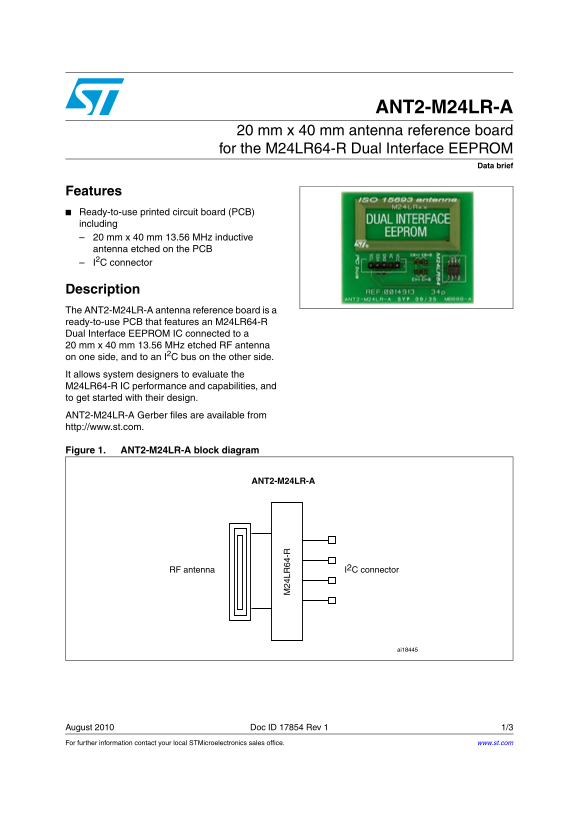

ANT2-M24LR-A
20 mm x 40 mm antenna reference board for the M24LR64-R Dual Interface EEPROM
Data brief
Features Ready-to-use printed circuit board (PCB) including
mm x 40 mm 13.56 MHz inductive antenna etched on the PCB I2C connector
Description The ANT2-M24LR-A antenna reference board is a ready-to-use PCB that features an M24LR64-R Dual Interface EEPROM IC connected to a mm x 40 mm 13.56 MHz etched RF antenna on one side, and to an I2C bus on the other side. It allows system designers to evaluate the M24LR64-R IC performance and capabilities, and to get started with their design. ANT2-M24LR-A Gerber files are available from http://www.st.com.
Figure 1. ANT2-M24LR-A block diagram
August 2010 Doc ID 17854 Rev 1 1/3 For further information contact your local STMicroelectronics sales office. www.st.com
