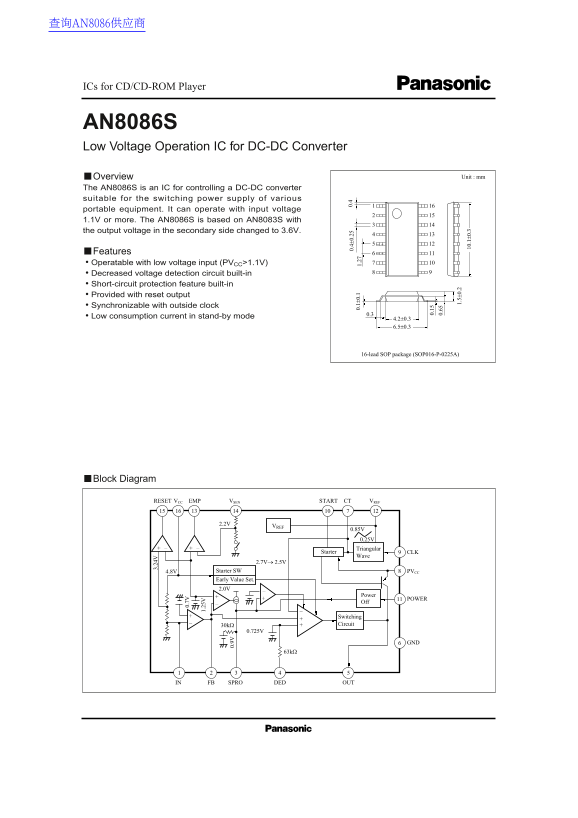

Page 1 Text Content
查询AN8086供应商
ICs for CD/CD-ROM Player
AN8086S Low Voltage Operation IC for DC-DC Converter
Overview Unit : mm
The AN8086S is an IC for controlling a DC-DC converter 0. 7V
suitable for the switching power supply of various
portable equipment. It can operate with input voltage 1.1V or more. The AN8086S is based on AN8083S with the output voltage in the secondary side changed to 3.6V. 0. 9V
Features • Operatable with low voltage input (PVCC>1.1V) • Decreased voltage detection circuit built-in • Short-circuit protection feature built-in • Provided with reset output • Synchronizable with outside clock
• Low consumption current in stand-by mode
16-lead SOP package (SOP016-P-0225A)
Block Diagram
RESET VCC EMP VSEN START CT VREF
–+ –+ Triangular
CLKStarter
4.8V Starter SW PVCC Early Value Set. 2.0V
Power
POWER
Switching 30kΩ Circuit
IN FB SPRO DED OUT
Page Summary Contents For Panasonic AN8086S Low Voltage Operation IC Data Sheet - For DC-DC Converter
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 3 |
| File Size | 38.01 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the minimum operating voltage (PV)?
The AN8086S operates with a low voltage input of 1.1V or more.
Does it include safety features like short-circuit protection?
Yes, it has built-in short-circuit detection on both the SPRO and IN POWER pins.
How can I synchronize its operation with an external clock?
Synchronization is achieved using the CLK pin, which operates at the rising edge of the clock signal.
What are the standard operating temperature ranges?
The device features an operating ambient temperature range of -20°C to +75°C.
