OMRON Safety Product F39-TC5 Safety Light Curtain F3SJ Series F39-PB[][][][](-S) Protective Bar for Model F3SJ-E B Instruction Sheet (ENG JPN)
Summary
This essential guide provides detailed instructions for installing, mounting, and maintaining protective support bars and brackets designed specifically for OMRON F3SJ-E/B sensors. The manual includes comprehensive dimensional drawings and step-by-step assembly walkthroughs for secure installation during backside or side mounting. It is intended for system integrators, maintenance technicians, and machine builders who require accurate hardware placement to ensure safe operation and longevity of their photoelectric sensing systems.

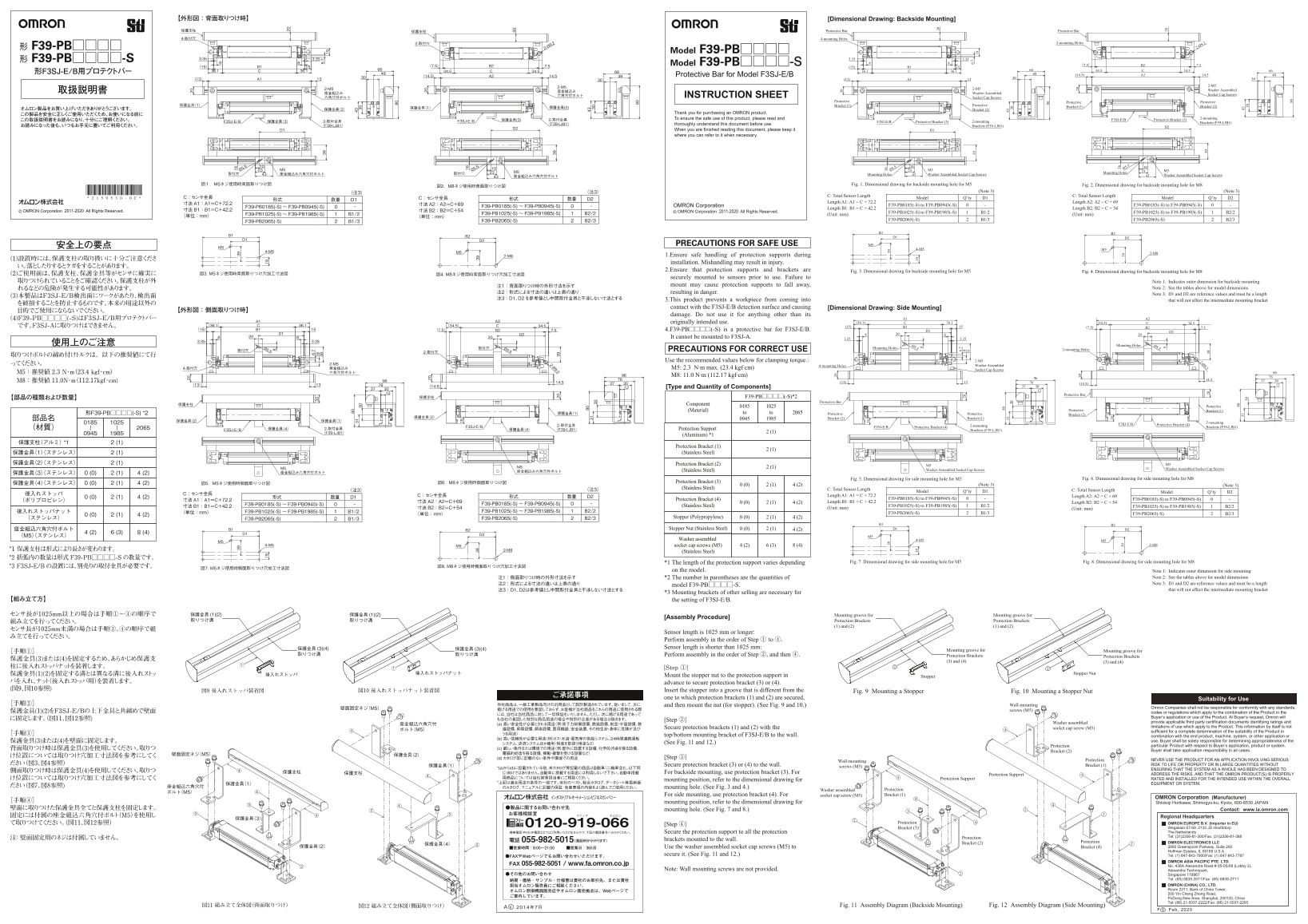

![OMRON Safety Product F39-TC5 Safety Light Curtain F3SJ Series F39-PB[][][][](-S) Protective Bar for Model F3SJ-E B Instruction Sheet (ENG JPN) - Page 1](https://img2.seekmanuals.com/20260605/db4da16743/omron-safety-product-f39-tc5-safety-light-curtain-f3sj-series-f39-pb-s-protective-bar-for-model-f3sj/1.png)
Manual Details
| Brand | Omron |
|---|---|
| Pages | 1 |
| File Size | 482.45 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What detectors is this protective bar for?
The F39-PB□□□□(-S) is designed specifically for F3SJ-E/B and cannot be mounted to F3SJ-A.
What are the recommended tightening torques for mounting bolts?
Use 2.3 N·m max for M5 bolts, and 11.0 N·m for M8 bolts.
Are wall mounting screws included with this product?
No, wall mounting screws are not provided and must be handled carefully during installation.
