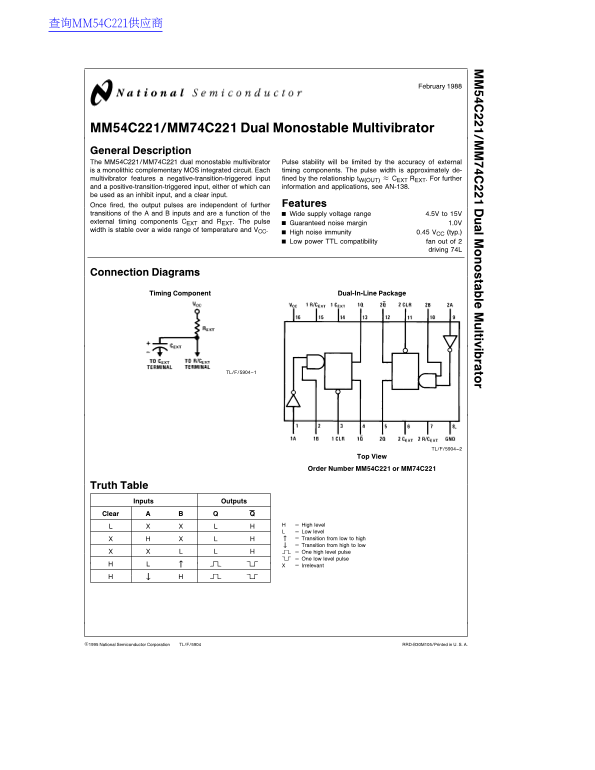

MM54C221/MM74C221 Dual Monostable Multivibrator General Description
The MM54C221/MM74C221 dual monostable multivibrator Pulse stability will be limited by the accuracy of external is monolithic complementary MOS integrated circuit. Each timing components. The pulse width is approximately de- multivibrator features negative-transition-triggered input fined by the relationship t W(OUT) CEXT REXT. For further
and positive-transition-triggered input, either of which can information and applications, see AN-138. be used as an inhibit input, and clear input.
Once fired, the output pulses are independent of further Features
transitions of the and inputs and are function of the Wide supply voltage range 4.5V to 15V external timing components CEXT and REXT. The pulse Guaranteed noise margin 1.0V width is stable over wide range of temperature and VCC.
High noise immunity 0.45 VCC (typ.) Low power TTL compatibility fan out of
driving 74L
Connection Diagrams
Timing Component Dual-In-Line Package
TL/F/5904–1
TL/F/5904–2
Order Number MM54C221 or MM74C221
Truth Table
Inputs Outputs
Clear
High level Low level Transition from low to high Transition from high to low One high level pulse One low level pulse Irrelevant
C1995 National Semiconductor Corporation TL/F/5904 RRD-B30M105/Printed in U. S. A.
