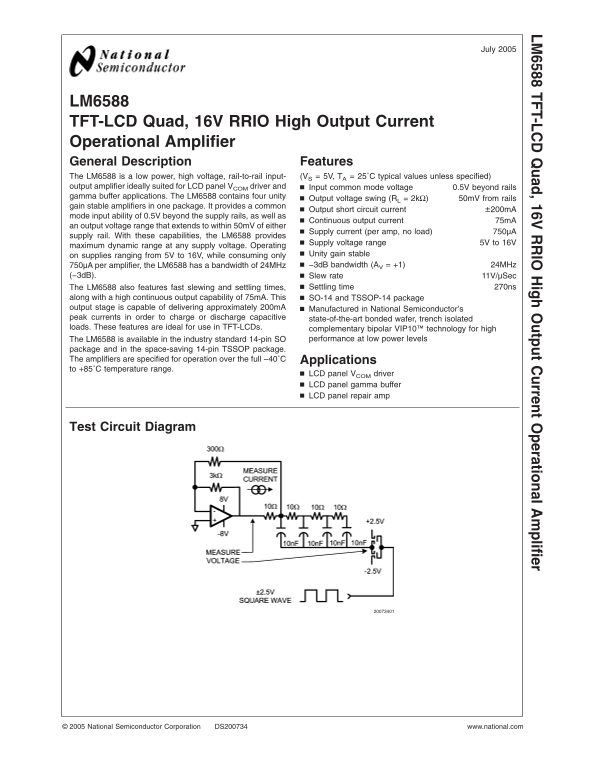

National Semiconductor LM6588 TFT-LCD Quad, 16V RRIO High Output Current Operational Amplifier Data Manual
Summary
The LM6588 is a low-power quad operational amplifier engineered specifically for demanding LCD panel applications. It provides high voltage support (up to 16V), reliable rail-to-rail output, and sufficient continuous current capacity for accurate display driving. This manual details the component's electrical characteristics and performance metrics, making it an essential resource for electronics engineers designing high-performance TFT-LCD displays, including COM and gamma buffer circuits.
Manual Details
| Brand | National |
|---|---|
| Pages | 16 |
| File Size | 976.45 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What applications is the LM6588 amplifier best suited for?
It is ideally suited for use in LCD panel driver, COM buffer, and gamma buffer applications.
What are its key electrical performance specifications?
It features a 24MHz bandwidth, an 11V/µSec slew rate, and fast settling times.
What supply voltage range does the amplifier support?
The LM6588 operates on supplies ranging from 5V up to 16V.
What is its operational temperature range?
The amplifiers are specified for operation over the full -40°C to +85°C temperature range.
