National Semiconductor DM5437 DM7437 Data Handbook/Manual
Summary
Powerful quad 2-input NAND Buffers (5437 series) designed for foundational digital logic applications. This manual provides comprehensive technical specifications, including detailed electrical characteristics, absolute maximum ratings, temperature ranges, and multiple packaging options (DIP). It is an essential resource for professional electronics engineers and circuit designers building robust and reliable digital systems or requiring MIL/Aerospace grade components.
Page 1 Text Content
-In ffe rs

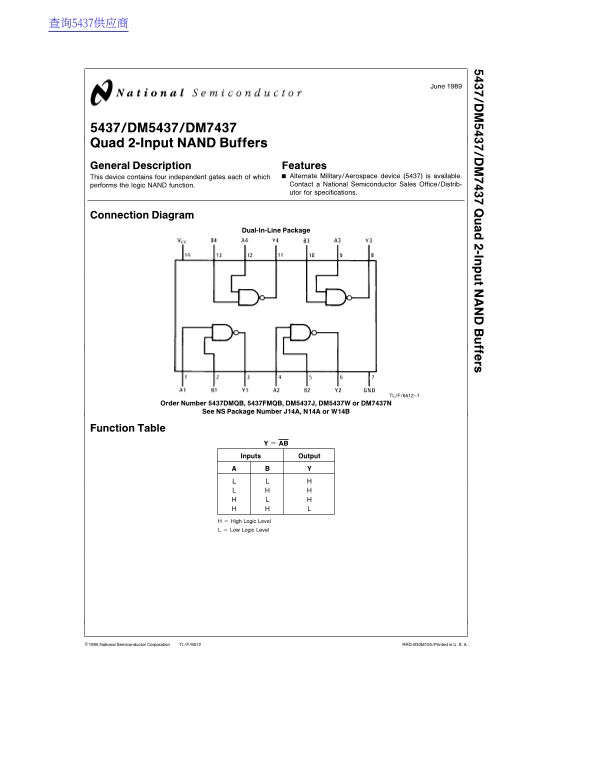

5437/DM5437/DM7437 Quad 2-Input NAND Buffers General Description Features
This device contains four independent gates each of which Alternate Military/Aerospace device (5437) is available. performs the logic NAND function. Contact National Semiconductor Sales Office/Distrib- utor for specifications.
Connection Diagram
Dual-In-Line Package
TL/F/6512–1
Order Number 5437DMQB, 5437FMQB, DM5437J, DM5437W or DM7437N
See NS Package Number J14A, N14A or W14B
Function Table
Inputs Output
High Logic Level Low Logic Level
C1995 National Semiconductor Corporation TL/F/6512 RRD-B30M105/Printed in U. S. A.
