MAXIM INTEGRATED PRODUCTS DS1803 Addressable Dual Digital Potentiometer

Summary

This addressable dual digital potentiometer provides two independently adjustable 256-position potentiometers controlled via a simple 2-wire serial interface. Ideal for applications requiring precise, non-volatile analog voltage adjustment without complex wiring. The manual details full device operation, communication protocols (SDA/SCL), and addressing schemes, making it essential for electronics engineers designing compact, programmable circuitry using standard resistors (10kΩ, 50kΩ, or 100kΩ).

📄 Preview PAGE OF 11

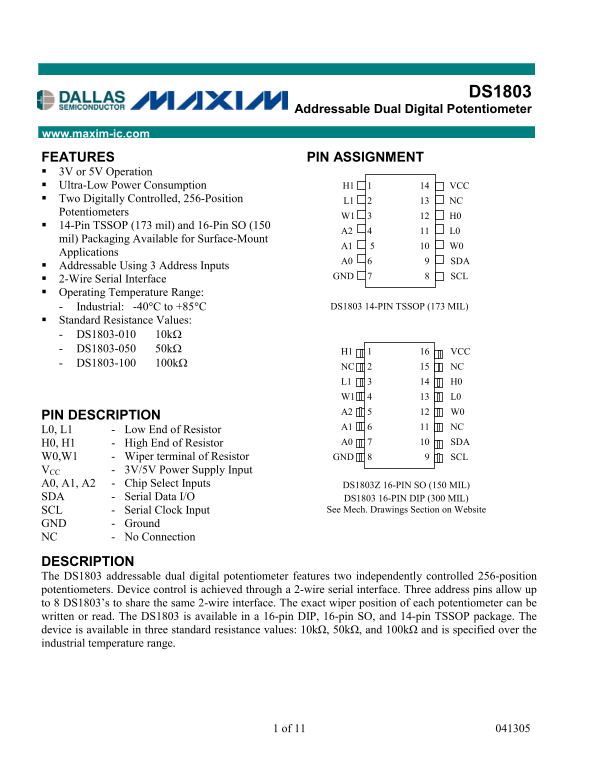

Page 1 Text Content

DS1803

Addressable Dual Digital Potentiometer

www.maxim-ic.com

FEATURES PIN ASSIGNMENT 3V or 5V Operation Ultra-Low Power Consumption H1 1 14 VCC Two Digitally Controlled, 256-Position L1 2 13 NC Potentiometers

14-Pin TSSOP (173 mil) and 16-Pin SO (150

mil) Packaging Available for Surface-Mount

Applications

A0 6 9 SDA

Addressable Using 3 Address Inputs

GND 7 8 SCL

2-Wire Serial Interface Operating Temperature Range:

- Industrial: -40C to +85C DS1803 14-PIN TSSOP (173 MIL)

Standard Resistance Values: - DS1803-010 10k - DS1803-050 50k

H1 1 16 VCC

- DS1803-100 100k

NC 2 15 NC L1 3 14 H0 W1 4 13 L0 A2 5 12 W0

PIN DESCRIPTION

A1 6 11 NC

L0, L1 - Low End of Resistor

H0, H1 - High End of Resistor A0 7 10 SDA

W0,W1 - Wiper terminal of Resistor GND 8 9 SCL VCC - 3V/5V Power Supply Input A0, A1, A2 - Chip Select Inputs DS1803Z 16-PIN SO (150 MIL) SDA - Serial Data I/O DS1803 16-PIN DIP (300 MIL)

SCL - Serial Clock Input See Mech. Drawings Section on Website

GND - Ground NC - No Connection

DESCRIPTION The DS1803 addressable dual digital potentiometer features two independently controlled 256-position potentiometers. Device control is achieved through a 2-wire serial interface. Three address pins allow up to 8 DS1803’s to share the same 2-wire interface. The exact wiper position of each potentiometer can be written or read. The DS1803 is available in a 16-pin DIP, 16-pin SO, and 14-pin TSSOP package. The device is available in three standard resistance values: 10kΩ, 50kΩ, and 100kΩ and is specified over the industrial temperature range.

1 of 11 041305

Page Summary Contents For MAXIM INTEGRATED PRODUCTS DS1803 Addressable Dual Digital Potentiometer

Page 1 DS1803 Addressable Dual Digital Potentiometer www.maxim-ic.com FEATURES PIN ASSIGNMENT 3V or 5V Operation Ultra-Low Power Consumption H1 1 14 VCC Two Digitally Controlled, 256-Position L1 2 13 NC Pote...
Page 2 DS1803 DEVICE OPERATION The DS1803 is an addressable, digitally controlled device which has two 256-position potentiometers. A functional block diagram of the part is shown in Figure 1. Communication ...
Page 3 DS1803 Stop data transfer: A change in the state of the data line, from LOW to HIGH, while the clock line is HIGH, defines the STOP condition. Data valid: The state of the data line represents valid d...
Page 4 DS1803 SLAVE ADDRESS The control byte is the first byte received following the START condition from the master device. The control byte consists of a four bit control code; for the DS1803, this is 010...
Page 5 DS1803 operations that can be used with the DS1803. The binary value of each write command is shown in Figure 5 and also in the Table 1. 2-WIRE COMMAND WORDS Table 1 COMMAND COMMAND VALUE Write Potent...
Page 6 DS1803 ABSOLUTE MAXIMUM RATINGS* Voltage on Any Pin Relative to Ground -1.0V to +7.0V Operating Temperature -40° to +85°C; industrial Storage Temperature -55°C to +125°C Soldering Temperature 260°C fo...
Page 7 DS1803 ANALOG RESISTOR CHARACTERISTICS (-40C to +85C;VCC=2.7V to 5.5V) PARAMETER SYMBOL MIN TYP MAX UNITS NOTES End-to-End Resistor Tolerance -20 +20 % 17 Absolute Linearity ±0.75 LSB 13 Relative Li...
Page 8 DS1803 5. After this period, the first clock pulse is generated. 6. A device must internally provide a hold time of at least 300 ns for the SDA signal (referred to the VIHMIN of the SCL signal) in ord...
Page 9 DS1803 DS1803 BLOCK DIAGRAM Figure 1 2–WIRE DATA TRANSFER OVERVIEW Figure 2 9 of 11
Page 10 DS1803 CONTROL BYTE Figure 3 2–WIRE READ PROTOCOL Figure 4 2–WIRE WRITE PROTOCOL Figure 5 Write Pot-0 10 of 11
Page 11 DS1803 TIMING DIAGRAM Figure 6 DS1803 ORDERING INFORMATION ORDERING NUMBER PACKAGE OPERATING TEMPERATURE VERSION DS18030-010 16L DIP -40°C TO +85°C 10 kΩ DS18030-050 16L DIP -40°C TO +85°C 50 kΩ DS180...

Manual Details

Brand Maxim Integrated
Pages 11
File Size 247.42 KB
Published May 26, 2026
66 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How many DS1803 devices can share a single 2-wire interface?

Up to 8 DS1803’s can share the same 2-wire interface using the three dedicated address pins (A0, A1, and A2).

What is the initial wiper position when the device powers up?

Since it is a volatile device, upon power-up, the DS1803 wipers’ position will automatically be set to position 00h, corresponding to the low-end terminals.

What voltage and temperature range must the user consider for operation?

The device supports operation using 3V or 5V power supplies over an industrial temperature range of -40°C to +85°C.

Which pins are responsible for serial data transfer, and what role does the master play?

Data is transferred using the SDA (Serial Data I/O) and SCL (Serial Clock Input) pins. The master device controls the message by generating the serial clock and controlling bus access.
