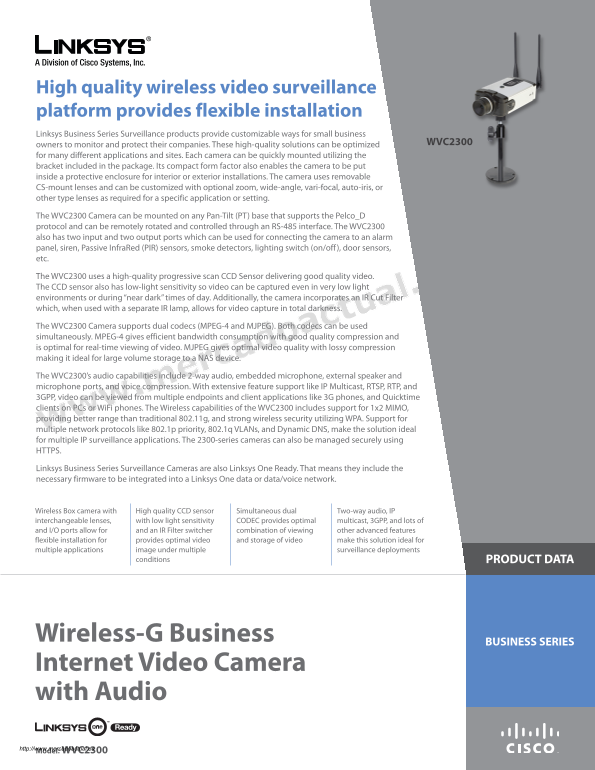

LINKSYS WVC2300 User Guide and Manual

High quality wireless video surveillance platform provides flexible installation Linksys Business Series Surveillance products provide customizable ways for small business

WVC2300

owners to monitor and protect their companies. These high-quality solutions can be optimized for many different applications and sites. Each camera can be quickly mounted utilizing the bracket included in the package. Its compact form factor also enables the camera to be put inside a protective enclosure for interior or exterior installations. The camera uses removable CS-mount lenses and can be customized with optional zoom, wide-angle, vari-focal, auto-iris, or other type lenses as required for a specific application or setting.

The WVC2300 Camera can be mounted on any Pan-Tilt (PT) base that supports the Pelco_D protocol and can be remotely rotated and controlled through an RS-485 interface. The WVC2300 also has two input and two output ports which can be used for connecting the camera to an alarm panel, siren, Passive Infra Red (PIR) sensors, smoke detectors, lighting switch (on/off ), door sensors, etc.

The WVC2300 uses a high-quality progressive scan CCD Sensor delivering good quality video. The CCD sensor also has low-light sensitivity so video can be captured even in very low light environments or during “near dark” times of day. Additionally, the camera incorporates an IR Cut Filter which, when used with a separate IR lamp, allows for video capture in total darkness.

The WVC2300 Camera supports dual codecs (MPEG-4 and MJPEG). Both codecs can be used simultaneously. MPEG-4 gives efficient bandwidth consumption with good quality compression and is optimal for real-time viewing of video. MJPEG gives optimal video quality with lossy compression making it ideal for large volume storage to a NAS device.

The WVC2300’s audio capabilities include 2-way audio, embedded microphone, external speaker and microphone ports, and voice compression. With extensive feature support like IP Multicast, RTSP, RTP, and 3GPP, video can be viewed from multiple endpoints and client applications like 3G phones, and Quicktime clients on PCs or Wi Fi phones. The Wireless capabilities of the WVC2300 includes support for 1x2 MIMO, providing better range than traditional 802.11g, and strong wireless security utilizing WPA. Support for multiple network protocols like 802.1p priority, 802.1q VLANs, and Dynamic DNS, make the solution ideal for multiple IP surveillance applications. The 2300-series cameras can also be managed securely using HTTPS.

Linksys Business Series Surveillance Cameras are also Linksys One Ready. That means they include the necessary firmware to be integrated into a Linksys One data or data/voice network.

Wireless Box camera with High quality CCD sensor Simultaneous dual Two-way audio, IP interchangeable lenses, with low light sensitivity CODEC provides optimal multicast, 3GPP, and lots of and I/O ports allow for and an IR Filter switcher combination of viewing other advanced features flexible installation for provides optimal video and storage of video make this solution ideal for multiple applications image under multiple surveillance deployments

conditions PRODUCT DATA

Wireless-G Business

BUSINESS SERIES

Internet Video Camera with Audio http://www.mercadoactual.es Model: WVC2300
