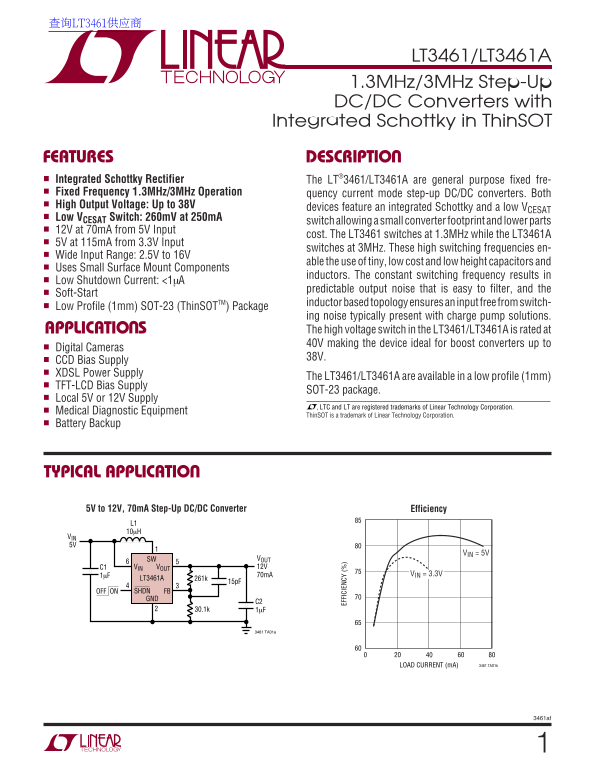

Page 1 Text Content
查询LT3461供应商
LT3461/LT3461A 1.3MHz/3MHz Step-Up
DC/DC Converters with Integrated Schottky in Thin SOT
FEATURES DESCRIPTIO Integrated Schottky Rectifier The LT®3461/LT3461A are general purpose fixed fre- Fixed Frequency 1.3MHz/3MHz Operation quency current mode step-up DC/DC converters. Both High Output Voltage: Up to 38V devices feature an integrated Schottky and a low VCESAT Low VCESAT Switch: 260m V at 250m A
switch allowing a small converter footprint and lower parts
12V at 70m A from 5V Input
cost. The LT3461 switches at 1.3MHz while the LT3461A
5V at 115m A from 3.3V Input
switches at 3MHz. These high switching frequencies en-
Wide Input Range: 2.5V to 16V
able the use of tiny, low cost and low height capacitors and
Uses Small Surface Mount Components
inductors. The constant switching frequency results in
Low Shutdown Current: <1µA
predictable output noise that is easy to filter, and the
Soft-Start
inductor based topology ensures an input free from switch-
Low Profile (1mm) SOT-23 (Thin SOTTM) Package
ing noise typically present with charge pump solutions. APPLICATIO S The high voltage switch in the LT3461/LT3461A is rated at
EF FI CI EN CY 40V making the device ideal for boost converters up to
Digital Cameras
CCD Bias Supply XDSL Power Supply
The LT3461/LT3461A are available in a low profile (1mm)
TFT-LCD Bias Supply
SOT-23 package.
Local 5V or 12V Supply
, LTC and LT are registered trademarks of Linear Technology Corporation.
Medical Diagnostic Equipment
Thin SOT is a trademark of Linear Technology Corporation.
Battery Backup
TYPICAL APPLICATIO 5V to 12V, 70m A Step-Up DC/DC Converter Efficiency
VIN 5V
VIN = 5V
SW VOUT C1 VIN VOUT 12V
1µF 70m A VIN = 3.3V
LT3461A 261k
OFF ON FBSHDN
3461 TA01a
LOAD CURRENT (m A) 3461 TAO1b
3461af
