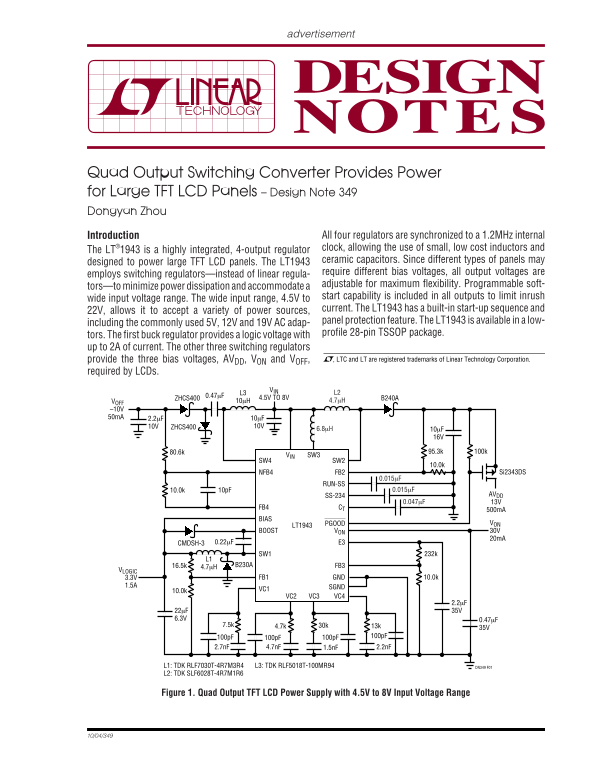

Quad Output Switching Converter Provides Power for Large TFT LCD Panels – Design Note 349 Dongyan Zhou
Introduction All four regulators are synchronized to a 1.2MHz internal clock, allowing the use of small, low cost inductors and
The LT®1943 is a highly integrated, 4-output regulator
ceramic capacitors. Since different types of panels may
designed to power large TFT LCD panels. The LT1943
require different bias voltages, all output voltages are
employs switching regulators—instead of linear regula-
adjustable for maximum flexibility. Programmable soft-
tors—to minimize power dissipation and accommodate a
start capability is included in all outputs to limit inrush
wide input voltage range. The wide input range, 4.5V to
22V, allows it to accept a variety of power sources, current. The LT1943 has a built-in start-up sequence and panel protection feature. The LT1943 is available in a low-
including the commonly used 5V, 12V and 19V AC adap-
profile 28-pin TSSOP package.
tors. The first buck regulator provides a logic voltage with up to 2A of current. The other three switching regulators
provide the three bias voltages, AVDD, VON and VOFF, , LTC and LT are registered trademarks of Linear Technology Corporation.
required by LCDs.
ZHCS400 4.5V TO 8V B240AVOFF
10V ZHCS400 10V
VIN SW3
SW4 SW2
NFB4 FB2 Si2343DS
RUN-SS
SS-234 AVDD
FB4 CT
PGOOD VON
LT1943
BOOST VON 30V
0.22µFCMDSH-3 E3
SW1 232k
16.5k B230A FB3
VLOGIC
3.3V FB1 GND 10.0k
1.5A SGND
10.0k VC1
VC2 VC3 VC4
L1: TDK RLF7030T-4R7M3R4 L3: TDK RLF5018T-100MR94 DN349 F01 L2: TDK SLF6028T-4R7M1R6
Figure 1. Quad Output TFT LCD Power Supply with 4.5V to 8V Input Voltage Range
