LINEAR LT1635 Data Sheet
Summary
The LT1635 is a high-precision analog building block that integrates a rail-to-rail output op amp and a precision reference voltage onto a single chip. Designed for ultra-low power consumption (<130μA), it excels in portable instrumentation, sensor conditioning, and battery/solar-powered applications requiring stable regulation. This manual provides comprehensive electrical characteristics, application guidelines, and detailed specifications necessary for engineers designing reliable, high-accuracy circuits from low voltage supplies (down to 1.2V).

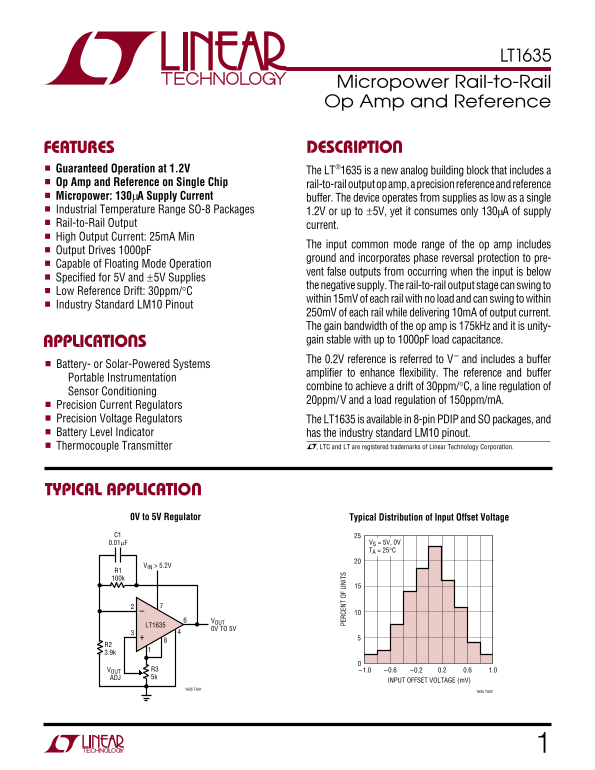

Page 1 Text Content
LT1635
Micropower Rail-to-Rail Op Amp and Reference
FEATURES DESCRIPTION
Guaranteed Operation at 1.2V The LT®1635 is a new analog building block that includes a Op Amp and Reference on Single Chip rail-to-rail output op amp, a precision reference and reference Micropower: 130µA Supply Current buffer. The device operates from supplies as low as a single Industrial Temperature Range SO-8 Packages 1.2V or up to ±5V, yet it consumes only 130µA of supply Rail-to-Rail Output current. High Output Current: 25m A Min
The input common mode range of the op amp includes
Output Drives 1000p F
ground and incorporates phase reversal protection to pre-
Capable of Floating Mode Operation
vent false outputs from occurring when the input is below
Specified for 5V and ±5V Supplies
the negative supply. The rail-to-rail output stage can swing to
Low Reference Drift: 30ppm/°C
within 15m V of each rail with no load and can swing to within
Industry Standard LM10 Pinout
250m V of each rail while delivering 10m A of output current. The gain bandwidth of the op amp is 175k Hz and it is unity- APPLICATIONS gain stable with up to 1000p F load capacitance.
PE RC EN OF NI TS
The 0.2V reference is referred to V– and includes a buffer
Battery- or Solar-Powered Systems
amplifier to enhance flexibility. The reference and buffer
Portable Instrumentation
combine to achieve a drift of 30ppm/°C, a line regulation of
Sensor Conditioning
20ppm/V and a load regulation of 150ppm/m A.
Precision Current Regulators Precision Voltage Regulators The LT1635 is available in 8-pin PDIP and SO packages, and Battery Level Indicator has the industry standard LM10 pinout.
Thermocouple Transmitter , LTC and LT are registered trademarks of Linear Technology Corporation.
TYPICAL APPLICATION
0V to 5V Regulator Typical Distribution of Input Offset Voltage C1
0.01µF VS = 5V, 0V TA = 25°C
VIN > 5.2V
LT1635
0V TO 5V
VOUT R3 –1.0 –0.6 –0.2 0.2 0.6 1.0 ADJ 5k
INPUT OFFSET VOLTAGE (m V)
1635 TA01
1635 TA02
