LINEAR LT3439 Data Sheet
Summary
This isolated, push-pull DC/DC transformer driver delivers ultralow noise with advanced slew rate control to drastically reduce conducted and radiated EMI. Featuring robust protection circuitry and low quiescent current, it is engineered for high reliability in critical power systems. The manual provides comprehensive electrical characteristics and application guidance, making the LT3439 ideal for precision instruments, medical devices, and radio/telecom supplies requiring clean, stable DC regulation.

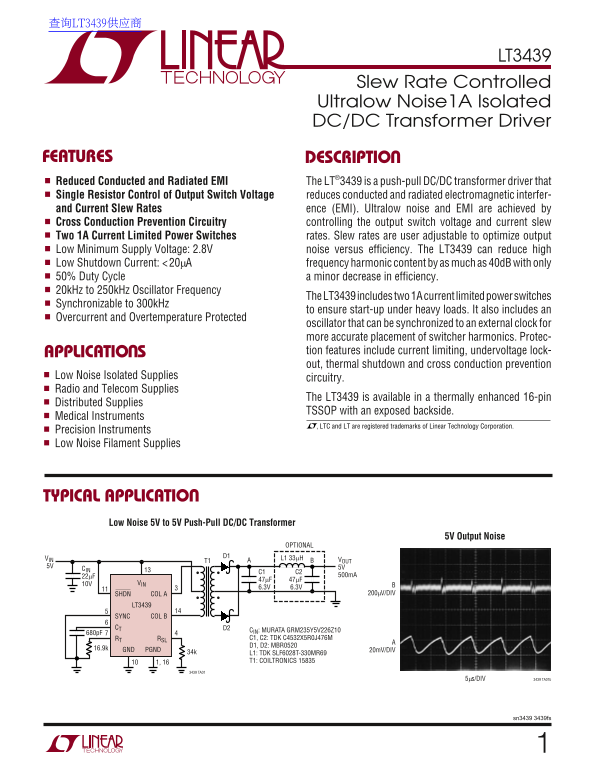

Page 1 Text Content
查询LT3439供应商
LT3439
Slew Rate Controlled Ultralow Noise1A Isolated DC/DC Transformer Driver
FEATURES DESCRIPTIO Reduced Conducted and Radiated EMI The LT®3439 is a push-pull DC/DC transformer driver that Single Resistor Control of Output Switch Voltage reduces conducted and radiated electromagnetic interfer- and Current Slew Rates ence (EMI). Ultralow noise and EMI are achieved by Cross Conduction Prevention Circuitry controlling the output switch voltage and current slew Two 1A Current Limited Power Switches rates. Slew rates are user adjustable to optimize output Low Minimum Supply Voltage: 2.8V noise versus efficiency. The LT3439 can reduce high Low Shutdown Current: <20µA frequency harmonic content by as much as 40d B with only 50% Duty Cycle a minor decrease in efficiency. 20k Hz to 250k Hz Oscillator Frequency
The LT3439 includes two 1A current limited power switches
Synchronizable to 300k Hz
to ensure start-up under heavy loads. It also includes an
Overcurrent and Overtemperature Protected
oscillator that can be synchronized to an external clock for more accurate placement of switcher harmonics. Protec- APPLICATIO S tion features include current limiting, undervoltage lock- out, thermal shutdown and cross conduction prevention
Low Noise Isolated Supplies circuitry. Radio and Telecom Supplies
The LT3439 is available in a thermally enhanced 16-pin
Distributed Supplies
TSSOP with an exposed backside.
Medical Instruments
, LTC and LT are registered trademarks of Linear Technology Corporation.
Precision Instruments Low Noise Filament Supplies
TYPICAL APPLICATIO Low Noise 5V to 5V Push-Pull DC/DC Transformer
5V Output Noise
OPTIONAL
VIN L1 33µH VOUT
13CIN C1 C2
10V VIN
SHDN COL A 200µV/DIV
LT3439 SYNC COL B CT D2
CIN: MURATA GRM235Y5V226Z10
RT RSL C1, C2: TDK C4532X5R0J476M D1, D2: MBR0520
16.9k GND PGND
20m V/DIV
34k L1: TDK SLF6028T-330MR69
1, 16 T1: COILTRONICS 15835
3439 TA01
5µs/DIV 3439 TA01b
sn3439 3439fs
Page Summary Contents For LINEAR LT3439 Data Sheet
Manual Details
| Brand | Linear |
|---|---|
| Pages | 12 |
| File Size | 187.19 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical output noise level of the LT3439?
The manual does not specify a single typical output noise figure, but it features Ultralow noise and EMI reduction.
What are the operational temperature limits for this device?
The operating junction temperature range is –40°C to 125°C. The storage temperature range is –65°C to 150°C.
How can the LT3439 reduce Electromagnetic Interference (EMI)?
It achieves ultralow noise and EMI reduction using a Cross Conduction Prevention Circuitry and two adjustable current slew rates.
What is the standby power consumption of the unit?
The supply current in shutdown mode (VIN(SHDN)IN) is specified as <20mA.
