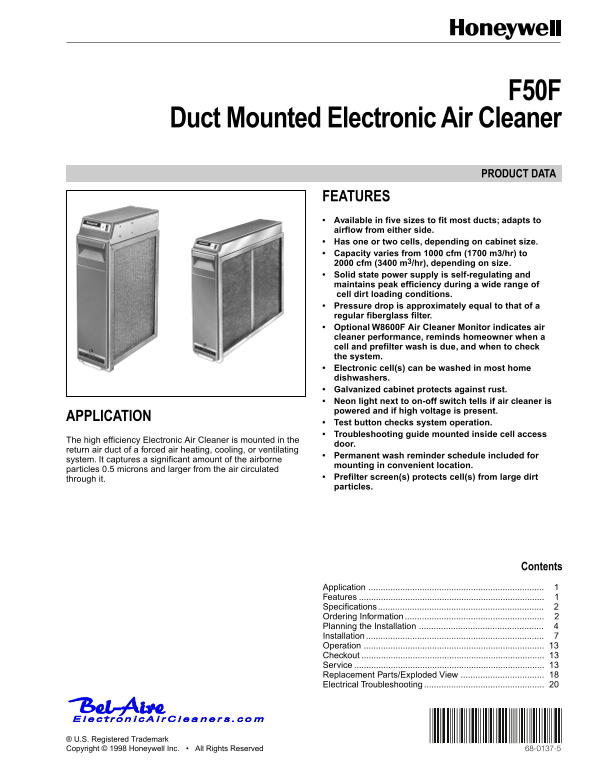

Page 1 Text Content
Duct Mounted Electronic Air Cleaner
PRODUCT DATA
FEATURES Available in five sizes to fit most ducts; adapts to airflow from either side. Has one or two cells, depending on cabinet size. Capacity varies from 1000 cfm (1700 m3/hr) to 2000 cfm (3400 m3/hr), depending on size. Solid state power supply is self-regulating and maintains peak efficiency during a wide range of cell dirt loading conditions. Pressure drop is approximately equal to that of a regular fiberglass filter. Optional W8600F Air Cleaner Monitor indicates air cleaner performance, reminds homeowner when a cell and prefilter wash is due, and when to check the system. Electronic cell(s) can be washed in most home dishwashers. Galvanized cabinet protects against rust. Neon light next to on-off switch tells if air cleaner is powered and if high voltage is present.
APPLICATION
Test button checks system operation. Troubleshooting guide mounted inside cell access
The high efficiency Electronic Air Cleaner is mounted in the
door.
return air duct of a forced air heating, cooling, or ventilating
Permanent wash reminder schedule included for
system. It captures a significant amount of the airborne
mounting in convenient location.
particles 0.5 microns and larger from the air circulated
through it. Prefilter screen(s) protects cell(s) from large dirt particles.
Contents
Application Features Specifications.................................................................... Ordering Information Planning the Installation Installation Operation Checkout Service Replacement Parts/Exploded View Electrical Troubleshooting
® U.S. Registered Trademark Copyright © 1998 Honeywell Inc. • All Rights Reserved 68-0137-5
