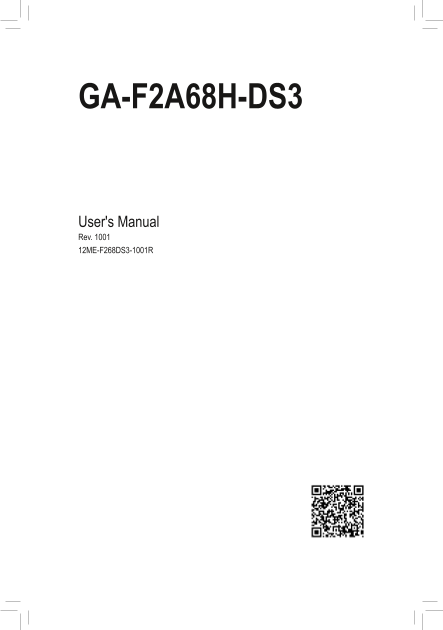

GA-F2A68H-DS3
User's Manual Rev. 1001 12ME-F268DS3-1001R
Page Summary Contents For Gigabyte Motherboard GA-F2A68H-DS3 (rev.1.0) User Manual - English (version 1001)
Page 1
GA-F2A68H-DS3 User's Manual Rev. 1001 12ME-F268DS3-1001R
Page 2
Motherboard GA-F2A68H-DS3 Motherboard GA-F2A68H-DS3 Nov. 14, 2014 Nov. 14, 2014 Copyright © 2014 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally...
Page 3
Table of Contents GA-F2A68H-DS3 Motherboard Layout ............................................................................4 GA-F2A68H-DS3 Motherboard Block Diagram ..................................
Page 4
GA-F2A68H-DS3 Motherboard Layout ATX_12V CPU_FAN KB_MS VGA DVI Socket FM2+ R_USB30 R_USB SYS_FAN1 USB_LAN SYS_FAN2 AUDIO PCIEX1_1 ATXGA-F2A68H-DS3 DD R3 _2 Realtek® PCIEX16 Gb E LAN DD R3 _1 PCIEX1_2 ...
Page 5
GA-F2A68H-DS3 Motherboard Block Diagram 1 PCI Express x16 APU CLK+/- (100 MHz) DISP CLK+/- (100 MHz) 1 PCI Express x1 DDR3 2133/1866/1600/1333 MHz PCIe CLK AMD APU (100 MHz) Dual Channel Memory DVI-D ...
Page 6
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 7
1-2 Product Specifications APU FM2+ Socket: - AMD A series processors - AMD Athlon™ series processors (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD A68H Memory 2 x DDR3 DIMM ...
Page 8
Internal 1 x APU fan header Connectors 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS ju...
Page 9
1-3 Installing the APU Read the following guidelines before you begin to install the APU: Make sure that the motherboard supports the APU. (Go to GIGABYTE's website for the latest APU support list.) A...
Page 10
1-6 Setup of the AMD Dual Graphics Configuration A. System Requirements An AMD A series processor that supports AMD Dual Graphics technology Windows 8.1/7 operating system An AMD Dual Graphics technol...
Page 11
USB 3.0/2.0 Port The USB 3.0 port supports the USB 3.0 specification and is compatible to the USB 2.0/1.1 specification. Use this port for USB devices Use this port for USB devices such as a USB keybo...
Page 12
1-8 Internal Connectors 1) ATX_12V 7) F_AUDIO 2) ATX 8) SPDIF_O 3) CPU_FAN 9) F_USB1/2/3 4) SYS_FAN1/2/3 10) COM 5) SATA3 0/1/2/3 11) CLR_CMOS 6) F_PANEL 12) BAT Read the following guidelines before c...
Page 13
DE BU PO RT DEBUG PORT 1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the componen...
Page 14
DEBUG DEBUG PORT PORT 5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supp...
Page 15
7) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make...
Page 16
10) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition ...
Page 17
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 18
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature, Vcore, and memory voltage. Whether the system will work stab...
Page 19
Turbo Performance Boost Ratio (Note 1) Allows you to determine whether to improve CPU performance. (Default: Disabled) Core Performance Boost Ratio (Note 1) Allows you alter the ratio for the CPB. The...
Page 20
Memory Timing Mode Manual and Advanced Manual allows the Channel Interleaving, Rank Interleaving, and memory timing settings below to be configurable. Options are: Auto (default), Manual, Advanced Man...
Page 21
CPU Fan Speed Control Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Normal Allows the fan to run at different speeds according to the CPU temperatu...
Page 22
2-3 System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. System ...
Page 23
2-4 BIOS Features Boot Option Priorities Specifies the overall boot order from the available devices. For example, you can set hard drive as the first priority (Boot Option #1) and DVD ROM drive as th...
Page 24
VGA Support Allows you to select which type of operating system to boot. Auto Enables legacy option ROM only. EFI Driver Enables EFI option ROM. (Default) This item is configurable only when Fast Boot...
Page 25
Network stack Disables or enables booting from the network to install a GPT format OS, such as installing the OS from the Windows Deployment Services server. (Default: Disable Link) Ipv4 PXE Support E...
Page 26
HD Audio Azalia Device Enables or disables the onboard audio function. (Default: Enabled) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disa...
Page 27
AHCI Configures the SATA controllers to AHCI mode. Advanced Host Controller Interface (AHCI) is an interface specification that allows the storage driver to enable advanced Serial ATA features such as...
Page 28
AC BACK Determines the state of the system after the return of power from an AC power loss. Memory The system returns to its last known awake state upon the return of the AC power. Always On The syste...
Page 29
Exit Without Saving Press <Enter> on this item and select Yes. This exits the BIOS Setup without saving the changes made in BIOS Setup to the CMOS. Select No or press <Esc> to return to th...
Page 30
C-1. UEFI RAID Configuration This mode supports Windows 8.1 64-bit installation only. To configure UEFI RAID, you need to prepare a USB flash drive using FAT 32 file format and copy all files (includi...
Page 31
2. The selection bar will move to the Disks section on the right of the screen. Select the hard drives to be included in the RAID array. Use the up or down arrow key to select a hard drive and press &...
Page 32
Method B: Steps: 1: Use an alternative system and insert the motherboard driver disk. 2: From your optical drive folder, double click the Menu.exe file in the Boot Drv folder. A Command Prompt window ...
Page 33
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 34
FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea...
Page 36
