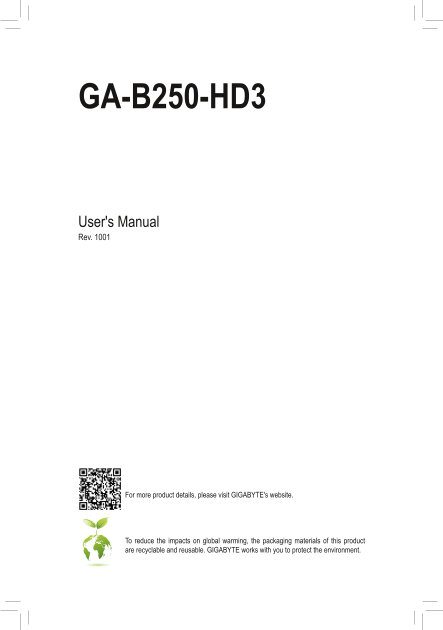

GA-B250-HD3
User's Manual Rev. 1001
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For Gigabyte Motherboard GA-B250-HD3 (rev.1.0) User Manual - English (Version 1001)
Page 1
GA-B250-HD3 User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusa...
Page 2
Motherboard GA-B250-HD3 Motherboard GA-B250-HD3 Dec. 9, 2016 Dec. 9, 2016 Copyright © 2016 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally regis...
Page 3
Table of Contents GA-B250-HD3 Motherboard Layout ................................................................................4 Chapter 1 Hardware Installation ........................................
Page 4
GA-B250-HD3 Motherboard Layout DV ATX_12V_2X4 D- SU KB_MS_USB CPU_FAN SYS_FAN1 LGA1151 ATX R_USB30 USB30_LAN AUDIO DD R4 _4 PCIEX1_1 DD R4 _2 SYS_FAN2 DD R4 _3 GA-B250-HD3 SA TA DD R4 _1 PCIEX16 Intel...
Page 5
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 6
1-2 Product Specifications CPU Support for 7th and 6th generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processor...
Page 7
Storage Interface - 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. USB Chipset: - 6 x USB 3.1 Gen 1 ports (4 po...
Page 8
Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specificatio...
Page 9
1-3 Installing the CPU Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) A...
Page 10
The four memory sockets are divided into two channels and each channel has two memory sockets as following: Channel A: DDR4_2, DDR4_4 Channel B: DDR4_1, DDR4_3 Dual Channel Memory Configurations Table...
Page 11
HDMI Port The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD Master Audio formats. It also supports up to 192KHz/16bit 8-channel LPCM audio output. You can use this port to connect ...
Page 12
1-7 Internal Connectors 1) ATX_12V_2X4 10) F_PANEL 2) ATX 11) SPDIF_O 3) CPU_FAN 12) F_AUDIO 4) SYS_FAN1/2/3 13) F_USB30 5) CPU/DRAM/VGA/BOOT 14) F_USB1/F_USB2 6) SATA EXPRESS 15) COMA 7) SATA3 0/1/2/...
Page 13
DEBUG PORT DEBUG PORT DEBUG 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) PORT With the use of the power connector, the power supply can supply enough stable power to al...
Page 14
F_USB30 F_ U F_ F_ F_USB30 F_ U F_ F_ F_USB3 F F_USB3 F DEBUG DEBUG DEBUG S F PORT PORT PORT DEBUG DEBUG DEBUG PORT PORT PORT 5) CPU/DRAM/VGA/BOOT (Status LEDs) The status LEDs show whether the CP...
Page 15
F_USB30 F_ U F_ F_ F_USB3 F 8) M2S_32G (M.2 Socket 3 Connector) The M.2 connector supports M.2 SATA SSDs and M.2 PCIe SSDs. Follow the steps below to correctly install an M.2 SSD in the M.2 connector...
Page 16
DEBUG PORT 9) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery whe...
Page 17
11) SPDIF_O (S/PDIF Out Header) This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard to certai...
Page 18
14) F_USB1/F_USB2 (USB 2.0/1.1 Headers) DEBUG The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB b...
Page 19
F_USB30 F_ U F_ F_ 17) TPM (Trusted Platform Module Header) You may connect a TPM (Trusted Platform Module) to this header. _S Pin No. Definition Pin No. Definition B S_ LCLK LAD0 GND GND LFRAME NC N...
Page 20
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 21
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to...
Page 22
AVX Offset (Note) AVX offset is the negative offset of AVX ratio. Uncore Ratio Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. Uncore Frequency Display...
Page 23
C6/C7 State Support (Note 1) Allows you to determine whether to let the CPU enter C6/C7 mode in system halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt s...
Page 24
Memory Odd Ratio(100/133 or 200/266) Enabled allows Qclk to run in odd frequency. (Default: Auto) Memory Frequency (MHz) The first memory frequency value is the normal operating frequency of the memor...
Page 25
Advanced Voltage Settings Advanced Power Settings CPU Vcore Loadline Calibration Allows you to configure Load-Line Calibration for the CPU Vcore voltage. Selecting a higher level keeps the CPU Vcore v...
Page 26
Silent Allows the fan to run at slow speeds. Manual Allows you to control the fan speed in the curve graph. Full Speed Allows the fan to run at full speeds. Fan Control Use Temperature Input Allows yo...
Page 27
2-3 System This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. Access Level Displa...
Page 28
2-4 BIOS Bootup Num Lock State Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: On) Security Option Specifies whether a password is required every ti...
Page 29
SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) Last Boot HDD Only Except for the previous boot drive, all SATA devices are disable...
Page 30
Storage Boot Option Control Allows you to select whether to enable the UEFI or legacy option ROM for the storage device controller. Do not launch Disables option ROM. Legacy Enables legacy option ROM ...
Page 31
2-5 Peripherals Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. IGFX Sets the onboard graphics as the...
Page 32
Ipv4 PXE Support Enables or disables IPv4 PXE Support. This item is configurable only when Network Stack is enabled. Ipv4 HTTP Support Enables or disables HTTP boot support for IPv4. This item is conf...
Page 33
Aggressive LPM Support Enables or disables the power saving feature, ALPM (Aggressive Link Power Management), for the Chipset SATA controllers. (Default: Enabled) Port 0/1/2/3/4/5 Enables or disables ...
Page 34
2-6 Chipset VT-d (Note) Enables or disables Intel® Virtualization Technology for Directed I/O. (Default: Enabled) Internal Graphics Enables or disables the onboard graphics function. (Default: Auto) D...
Page 35
2-7 Power Platform Power Management Enables or disables the Active State Power Management function (ASPM). (Default: Disabled) PEG ASPM Allows you to configure the ASPM mode for the device connected t...
Page 36
Power On By Mouse Allows the system to be turned on by a PS/2 mouse wake-up event. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead. Disabled Disables t...
Page 37
2-8 Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return...
Page 38
Chapter 3 Appendix Drivers Installation Before installing the drivers, first install the operating system. (The following instructions use Windows 10 as the example operating system.) After installing...
Page 39
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 40
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Market...
