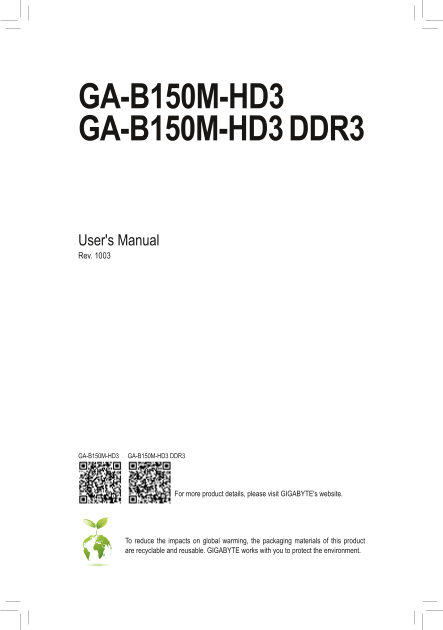

GA-B150M-HD3 GA-B150M-HD3 DDR3
User's Manual Rev. 1003
GA-B150M-HD3 DDR3GA-B150M-HD3
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For Gigabyte Motherboard GA-B150M-HD3 (rev.1.0) User Manual - English (version 1003)
Page 1
GA-B150M-HD3 GA-B150M-HD3 DDR3 User's Manual Rev. 1003 GA-B150M-HD3 DDR3GA-B150M-HD3 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging m...
Page 2
Motherboard GA-B150M-HD3 Motherboard GA-B150M-HD3 Nov. 9, 2015 Nov. 9, 2015 Motherboard GA-B150M-HD3 DDR3 Motherboard GA-B150M-HD3 DDR3 Aug. 27, 2015 Aug. 27, 2015
Page 3
Copyright © 2016 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 4
Table of Contents GA-B150M-HD3/GA-B150M-HD3 DDR3 Motherboard Layout .......................................5 Chapter 1 Hardware Installation ..............................................................
Page 5
GA-B150M-HD3/GA-B150M-HD3 DDR3 Motherboard Layout CPU_FAN KB_MS_USB ATX_12V_2X4 ATX HD MI DV SYS_FAN VG LGA1151 R_USB30 USB30_LAN GA-B150M-HD3 GA-B150M-HD3 DDR3 DD R4 _1 /D DR 3_ 1k AUDIO Realtek® PCI...
Page 6
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 7
1-2 Product Specifications CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 packa...
Page 8
Storage Interface Chipset: - 1 x M.2 Socket 3 connector - 6 x SATA 6Gb/s connectors USB Chipset: - 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header) ...
Page 9
Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specificatio...
Page 10
1-3 Installing the CPU Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) A...
Page 11
The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as followingj: Channel A: DDR4_1 Channel B: DDR4_2 The two DDR3 memory sockets are divided into two cha...
Page 12
HDMI Port The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD Master Audio formats. It also supports up to 192KHz/16bit 8-channel LPCM audio output. You can use this port to connect ...
Page 13
1-7 Internal Connectors 1) ATX_12V_2X4 9) SPDIF_O 2) ATX 10) F_USB30 3) CPU_FAN 11) F_USB1/F_USB2 4) SYS_FAN 12) COM 5) SATA3 0/1/2/3/4/5 13) LPT 6) M.2 14) TPM 7) F_PANEL 15) BAT 8) F_AUDIO 16) CLR_C...
Page 14
DEBUG PORT DEBUG PORT 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the compo...
Page 15
DEBUG PORT DE BU PO RT 3/4) CPU_FAN/SYS_FAN (Fan Headers) The fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to ...
Page 16
On the motherboard there are three length adjustment holes for the M.2 SSD. Select the proper hole for the M.2 SSD to be installed and refasten the screw and nut. HD ED When installing different types...
Page 17
8) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make...
Page 18
11) F_USB1/F_USB2 (USB 2.0/1.1 Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket...
Page 19
14) TPM (Trusted Platform Module Header) You may connect a TPM (Trusted Platform Module) to this header. Pin No. Definition Pin No. Definition LCLK LAD0 GND GND LFRAME NC No Pin NC LRESET SB3V DEBUG N...
Page 20
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 21
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature and CPU voltage, etc. Whether the system will work stably wit...
Page 22
Uncore Ratio Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. Uncore Frequency Displays the current CPU Uncore frequency. CPU Flex Ratio Override Enable...
Page 23
C8 State Support (Note) Allows you to determine whether to let the CPU enter C8 mode in system halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to ...
Page 24
Memory Multiplier Tweaker Provides different levels of memory auto-tuning. (Default: Auto) Channel Interleaving Enables or disables memory channel interleaving. Enabled allows the system to simultaneo...
Page 25
Displays the detection status of the chassis intrusion detection device attached to the motherboard CI header. If the system chassis cover is removed, this field will show "Yes", otherwise i...
Page 26
Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled) 2-3 System Information This section provides information on your motherboard model and BIOS version. Y...
Page 27
2-4 BIOS Features Boot Option Priorities Specifies the overall boot order from the available devices. Removable storage devices that support GPT format will be prefixed with "UEFI:" string o...
Page 28
SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) Last Boot HDD Only Except for the previous boot drive, all SATA devices are disable...
Page 29
Legacy Only Enables legacy option ROM only. (Default) This item is configurable only when CSM Support is set to Enabled. Other PCI Device ROM Priority Allows you to select whether to enable the UEFI o...
Page 30
2-5 Peripherals Intel Platform Trust Technology (PTT) Enables or disables Intel® PTT Technology. (Default: Disabled) Initial Display Output Specifies the first initiation of the monitor display from t...
Page 31
Trusted Computing 2.0 This sub-menu appears only when Intel Platform Trust Technology is set to Enabled. Security Device Support Enables or disables Trusted Platform Module (TPM). (Default: Enable) Pe...
Page 32
2-6 Chipset VT-d (Note) Enables or disables Intel® Virtualization Technology for Directed I/O. (Default: Disabled) Internal Graphics Enables or disables the onboard graphics function. (Default: Auto) ...
Page 33
2-7 Power Management AC BACK Determines the state of the system after the return of power from an AC power loss. Always Off The system stays off upon the return of the AC power. (Default) Always On Th...
Page 34
Er P Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled) Note: When this item is set to Enabled, the following functions will become unavailable: Resum...
Page 35
2-8 Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return...
Page 36
Chapter 3 Appendix Drivers Installation Before installing the drivers, first install the operating system. (The following instructions use Windows 8.1 as the example operating system.) After installin...
Page 37
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 38
FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea...
Page 39
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Market...
