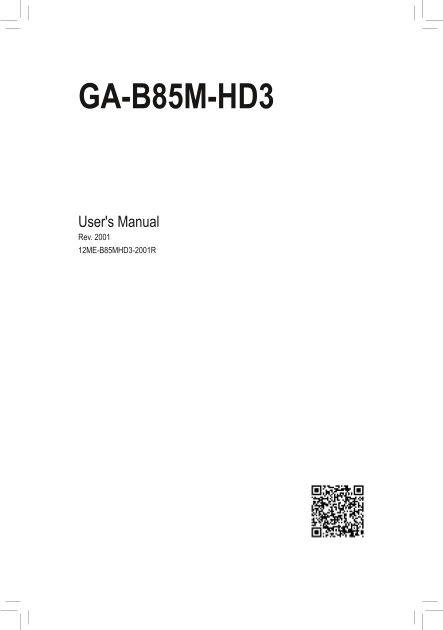

GA-B85M-HD3
User's Manual Rev. 2001 12ME-B85MHD3-2001R
Page Summary Contents For Gigabyte Motherboard GA-B85M- HD3 (rev.3.0) User Manual - English (Version 2001)
Page 1
GA-B85M-HD3 User's Manual Rev. 2001 12ME-B85MHD3-2001R
Page 2
Motherboard GA-B85M-HD3 Motherboard GA-B85M-HD3 Apr. 7, 2014 Apr. 7, 2014 Copyright © 2014 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally regis...
Page 3
Table of Contents GA-B85M-HD3 Motherboard Layout ...............................................................................4 GA-B85M-HD3 Motherboard Block Diagram ...................................
Page 4
GA-B85M-HD3 Motherboard Layout KB_MS_USB HD MI ATX_12V_2X4 VG LGA1150 R_USB30 USB_LAN Realtek® AUDIO Gb E LAN BAT CPU_FAN SYS_FAN DD R3 _1 GA-B85M-HD3 PCIEX16 SA TA SA TA F_ US B3 DD R3 _2 PCIEX1_1 i ...
Page 5
GA-B85M-HD3 Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- (100 MHz) LGA1150 DDR3 1600/1333 MHz PCIe CLK Dual Channel Memory (100 MHz) DVI-D x16 PCI Express Bus MI (C en ter /S ub wo ofe Sp ea...
Page 6
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 7
1-2 Product Specifications CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 packa...
Page 8
Internal 1 x 24-pin ATX main power connector Connectors 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel h...
Page 9
Bundled Norton® Internet Security (OEM version) Software Intel® Rapid Start Technology Intel® Smart Connect Technology Operating Support for Windows 8.1/8/7 System Form Factor Micro ATX Form Factor; 2...
Page 10
1-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 11
DVI-D Port (Note) The DVI-D port conforms to the DVI-D specification and supports a maximum resolution of 1920x1200 (the actual resolutions supported depend on the monitor being used). Connect a monit...
Page 12
1-7 Internal Connectors 1) ATX_12V_2X4 8) F_PANEL 2) ATX 9) F_USB30 3) CPU_FAN 10) F_USB1/F_USB2 4) SYS_FAN 11) COM 5) SATA3 0/1/2/3 12) LPT 6) SATA2 4/5 13) CLR_CMOS 7) F_AUDIO 14) BAT Read the follo...
Page 13
DEBUG PORT DEBUG PORT 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the compo...
Page 14
DE BU DE BU DE BU PO RT PO RT PO RT DE BU DE BU DE BU PO RT PO RT PO RT 5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s a...
Page 15
8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and...
Page 16
10) F_USB1/2 (USB 2.0/1.1 Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, ple...
Page 17
13) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch...
Page 18
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 19
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature and Vcore. Whether the system will work stably with the overc...
Page 20
CPU PLL Selection Allows you to set the CPU PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) Filter PLL Level Allows you to set the Filter PLL. Auto lets the BIOS automati...
Page 21
CPU Thermal Monitor (Note 1) Enables or disables Intel® Thermal Monitor function, a CPU overheating protection function. When enabled, the CPU core frequency and voltage will be reduced when the CPU i...
Page 22
Profile DDR Voltage When using a non-XMP memory module or Extreme Memory Profile (X.M.P.) is set to Disabled, the value is displayed according to your memory specification. When Extreme Memory Profile...
Page 23
CPU Fan Speed Control Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Normal Allows the fan to run at different speeds according to the CPU temperatu...
Page 24
2-3 System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. System ...
Page 25
2-4 BIOS Features Boot Option Priorities Specifies the overall boot order from the available devices. For example, you can set hard drive as the first priority (Boot Option #1) and DVD ROM drive as th...
Page 26
VGA Support Allows you to select which type of operating system to boot. Auto Enables legacy option ROM only. EFI Driver Enables EFI option ROM. (Default) This item is configurable only when Fast Boot...
Page 27
Boot Mode Selection Allows you to select which type of operating system to boot. UEFI and Legacy Allows booting from operating systems that support legacy option ROM or UEFI option ROM. (Default) Lega...
Page 28
2-5 Peripherals Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. IGFX Sets the onboard graphics as the...
Page 29
Audio Controller Enables or disables the onboard audio function. (Default: Auto) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. Int...
Page 30
Super IO Configuration This section provides information on the super I/O chip and allows you to configure the serial port and parallel port. Serial Port A Enables or disables the onboard serial port....
Page 31
Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Instant-Off Press the power button and then the system will be turned off instantly. (Default) D...
Page 32
2-7 Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return...
Page 33
Chapter 3 Appendix Drivers Installation Before installing the drivers, first install the operating system. (The following instructions use Windows 8.1 as the example operating system.) After installin...
Page 34
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 35
FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea...
Page 36
