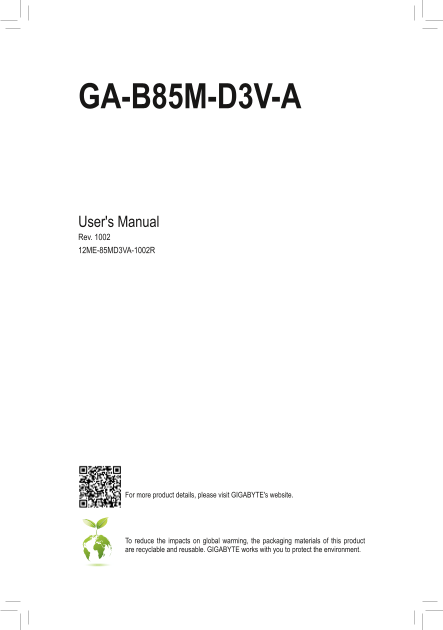

GA-B85M-D3V-A
User's Manual Rev. 1002 12ME-85MD3VA-1002R
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For Gigabyte Motherboard GA-B85M-D3V-A (rev.1.0) User Manual - English (version 1002)
Page 1
GA-B85M-D3V-A User's Manual Rev. 1002 12ME-85MD3VA-1002R For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are...
Page 2
Motherboard GA-B85M-D3V-A Motherboard GA-B85M-D3V-A Sept. 15, 2014 Sept. 15, 2014 Copyright © 2016 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legal...
Page 3
Table of Contents GA-B85M-D3V-A Motherboard Layout ............................................................................4 GA-B85M-D3V-A Motherboard Block Diagram ..................................
Page 4
GA-B85M-D3V-A Motherboard Layout KB_MS_USB ATX DV VG ATX_12V_2X4 LP LGA1150 R_USB30 USB_LAN AUDIO SYS_FAN DD R3 _1 CPU_FAN Realtek® Gb E LAN GA-B85M-D3V-A PCIEX16 F_ US B3 DD R3 _2 PCIEX1_1 SA TA SA T...
Page 5
GA-B85M-D3V-A Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- (100 MHz) LGA1150 DDR3 1600/1333 MHz PCIe CLK Dual Channel Memory (100 MHz) DVI-D x16 PCI Express Bus MI (C en ter /S ub wo ofe Sp ...
Page 6
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 7
1-2 Product Specifications CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 packa...
Page 8
Internal 1 x system fan header Connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel 1 x...
Page 9
Operating Support for Windows 8.1/8/7 System Form Factor Micro ATX Form Factor; 24.4cm x 17.4cm * GIGABYTE reserves the right to make any changes to the product specifications and product-related info...
Page 10
1-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 11
D-Sub Port The D-Sub port supports a 15-pin D-Sub connector and a maximum resolution of 1920x1200 Connect a monitor that supports D-Sub connection to this port. DVI-D Port (Note) The DVI-D port confor...
Page 12
1-7 Internal Connectors 1) ATX_12V_2X4 8) F_PANEL 2) ATX 9) CLR_CMOS 3) CPU_FAN 10) F_USB30 4) SYS_FAN 11) F_USB1/F_USB2 5) SATA3 0/1/2/3 12) COM 6) SATA2 4/5 13) BAT 7) F_AUDIO Read the following gui...
Page 13
DEBUG PORT DEBUG PORT 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the compo...
Page 14
DE BU DE BU DE BU PO RT PO RT PO RT DE BU DE BU DE BU PO RT PO RT PO RT 5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s a...
Page 15
8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and...
Page 16
10) F_USB30 (USB 3.0/2.0 Header) The header conforms to USB 3.0/2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.0/2.0 ports, ...
Page 17
13) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the batt...
Page 18
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 19
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature and Vcore. Whether the system will work stably with the overc...
Page 20
CPU PLL Selection Allows you to set the CPU PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) Filter PLL Level Allows you to set the Filter PLL. Auto lets the BIOS automati...
Page 21
CPU EIST Function (Note 1) Enables or disables Enhanced Intel® Speed Step Technology (EIST). Depending on CPU loading, Intel® EIST technology can dynamically and effectively lower the CPU voltage and ...
Page 22
Rank Interleaving Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access different ranks of the memory to increase memory performance and stability. Auto lets...
Page 23
System Fan Speed Control Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Normal Allows the fan to run at different speeds according to the system tem...
Page 24
System Time Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:0:0. Use <Enter> to switch between the Hour, Minute, and Second fields and use the <Pa...
Page 25
Security Option Specifies whether a password is required every time the system boots, or only when you enter BIOS Setup. After configuring this item, set the password(s) under the Administrator Passwo...
Page 26
VT-d (Note) Enables or disables Intel® Virtualization Technology for Directed I/O. (Default: Enabled) Windows 8 Features Allows you to select the operating system to be installed. (Default: Other OS) ...
Page 27
User Password Allows you to configure a user password. Press <Enter> on this item, type the password, and then press <Enter>. You will be requested to confirm the password. Type the passwo...
Page 28
Enabled All shared ports are eventually routed to the x HCI controller during the BIOS boot process. If BIOS does not have pre-boot support for the x HCI controller, it should initially route the shar...
Page 29
Serial ATA Port 0/1/2/3/4/5 Port 0/1/2/3/4/5 Enables or disables each SATA port. (Default: Enabled) Hot plug Enables or disable the hot plug capability for each SATA port. (Default: Disabled) External...
Page 30
2-6 Power Management Power Loading Enables or disables dummy load. When the power supply is at low load, a self-protection will activate causing it to shutdown or fail. If this occurs, please set to E...
Page 31
Power On Password Set the password when Power On By Keyboard is set to Password. Press <Enter> on this item and set a password with up to 5 characters and then press <Enter> to accept. To ...
Page 32
Save Profiles This function allows you to save the current BIOS settings to a profile. You can create up to 8 profiles and save as Setup Profile 1~ Setup Profile 8. Press <Enter> to complete. Or...
Page 33
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 34
FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea...
Page 36
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Market...
