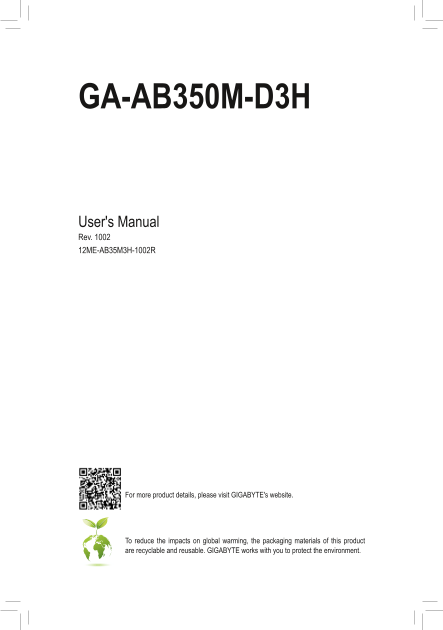

GA-AB350M-D3H User's Manual Rev. 1002 12ME-AB35M3H-1002R For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are...
Page 2
Motherboard GA-AB350M-D3H Motherboard GA-AB350M-D3H Feb. 17, 2017 Feb. 17, 2017 Copyright © 2017 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally...
Page 3
Table of Contents GA-AB350M-D3H Motherboard Layout ...........................................................................4 Chapter 1 Hardware Installation ...........................................
Page 4
GA-AB350M-D3H Motherboard Layout CPU_FAN KB_MS_USB SYS_FAN1 VGA ATX_12V DVI SYS_FAN2 Socket AM4 DP_HDMI R_USB30 R_USB31 USB30_LAN M2 F_ BAT B_BIOS M_BIOS AUDIO GA-AB350M-D3H Realtek® Gb E LAN PCIEX16 ...
Page 5
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 6
1-2 Product Specifications CPU AM4 Socket: AMD Ryzen™ processor - AMD 7th Generation A-series/Athlon™ processors (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD B350 Memory 4 x...
Page 7
USB Chipset: - 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.1 Gen 1 ports (available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports ...
Page 8
Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specificatio...
Page 9
1-3 Installing the CPU Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) A...
Page 10
Dual Channel Memory Configurations Table DDR4_4 DDR4_2 DDR4_3 DDR4_1 - - DS/SS - - DS/SS Two Modules DS/SS - - DS/SS - - Four Modules DS/SS DS/SS DS/SS DS/SS (SS=Single-Sided, DS=Double-Sided, "-...
Page 11
HDMI Port The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD Master Audio formats. It also supports up to 192 KHz/24bit 8-channel LPCM audio output. You can use this port to connect...
Page 12
1-7 Internal Connectors 1) ATX_12V 10) F_PANEL 2) ATX 11) F_AUDIO 3) CPU_FAN 12) BAT 4) SYS_FAN1/2 13) CLR_CMOS 5) SYS_FAN3_PUMP 14) F_USB30 6) ASATA3 0/1 15) F_USB1/F_USB2 7) SATA3 0/1/2/3 16) TPM 8)...
Page 13
DE BU PO RT DEBUG PORT 1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the componen...
Page 14
DEBUG PORT 5) SYS_FAN3_PUMP (System Fan/Water Cooling Pump Headers) DEBUG DEBUG The fan/pump headers are 4-pin. Most fan headers possess a foolproof insertion design. When connecting PORT PORT a fan c...
Page 15
F_USB30 F_U F_ F_ F_USB3F 8) M2F_32G (M.2 Socket 3 Connector) The M.2 connector supports M.2 SATA SSDs and M.2 PCIe SSDs and support SATA RAID configuration through the AMD Chipset. Please note tha...
Page 16
DEBUG PORT 9) SPDIF_O (S/PDIF Out Header) This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard...
Page 17
11) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Mak...
Page 18
F_ US B3 F_ F_ F_ 13) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a sc...
Page 19
16) TPM (Trusted Platform Module Header) You may connect a TPM (Trusted Platform Module) to this header. Pin No. Definition Pin No. Definition LCLK LAD0 GND GND LFRAME NC No Pin NC LRESET SB3V NC SERI...
Page 20
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 21
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to...
Page 22
AMD Cool&Quiet function Enabled Lets the AMD Cool'n'Quiet driver dynamically adjust the CPU clock and VID to reduce heat output from your computer and its power consumption. (Default) Disabled Dis...
Page 23
Profile DDR Voltage When using a non-XMP memory module or Extreme Memory Profile (X.M.P.) is set to Disabled, the value is displayed according to your memory specification. When Extreme Memory Profile...
Page 24
Smart Fan 5 Settings Monitor Allows you to select a target to monitor and to make further adjustment. (Default: CPU FAN) Fan Speed Control Allows you to determine whether to enable the fan speed contr...
Page 25
2-3 System This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. System Language Sel...
Page 26
2-4 BIOS Boot Option Priorities Specifies the overall boot order from the available devices. Removable storage devices that support GPT format will be prefixed with "UEFI:" string on the boo...
Page 27
SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before t...
Page 28
Other PCI Device ROM Priority Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Disabled ...
Page 29
2-5 Peripherals AMD CPU f TPM Enables or disables the TPM 2.0 function integrated in the AMD CPU. (Default: Disabled) Ambient LED Enables or disables the onboard audio LED. (Default: On) Legacy USB Su...
Page 30
Trusted Computing Enables or disables Trusted Platform Module (TPM). Super IO Configuration Serial Port 1 Enables or disables the onboard serial port. (Default: Enabled) Parallel Port Enables or disab...
Page 31
2-6 Chipset IOMMU Enables or disables AMD IOMMU support. (Default: Auto) Integrated Graphics (Note) Enables or disables the onboard graphics function. Auto The BIOS will automatically enable or disabl...
Page 32
2-7 Power AC BACK Determines the state of the system after the return of power from an AC power loss. Memory The system returns to its last known awake state upon the return of the AC power. Always On...
Page 33
Er P Determines whether to let the system consume least power in S5 (shutdown) state. Note: When this item is set to Enabled, the following functions will become unavailable: Resume by Alarm, PME even...
Page 34
2-8 Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return...
Page 35
Chapter 3 Appendix 3-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 10 Minimum Number of Hard Drives Array Capacity Number of hard drives * Size of the smallest drive (Number of hard drives/2...
Page 36
4. On the Select Physical Disks screen, select the hard drives to be included in the RAID array and set them to Enabled. Next, use the down arrow key to move to Apply Changes and press <Enter>. ...
Page 37
3-2 Drivers Installation Before installing the drivers, first install the operating system. (The following instructions use Windows 10 as the example operating system.) After installing the operating ...
