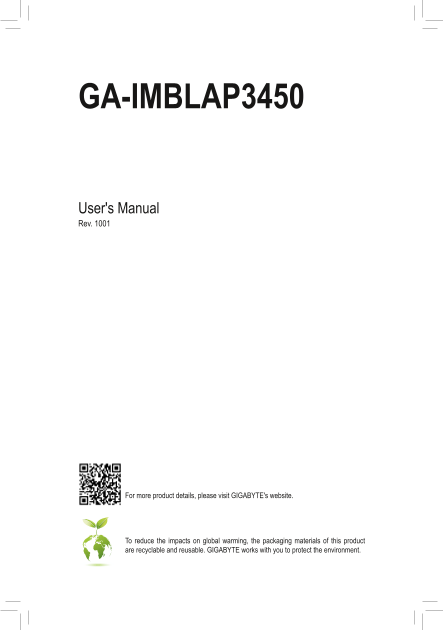

GA-IMBLAP3450
User's Manual Rev. 1001
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For Gigabyte Motherboard GA-IMBLAP3450 (rev.1.0) User Manual - English (Version 1001)
Page 1
GA-IMBLAP3450 User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reu...
Page 2
Motherboard GA-IMBLAP3450 Motherboard GA-IMBLAP3450 Jun. 15, 2018 Jun. 15, 2018 Copyright © 2018 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally...
Page 3
Table of Contents GA-IMBLAP3450 Motherboard Layout ............................................................................4 Chapter 1 Hardware Installation ..........................................
Page 4
GA-IMBLAP3450 Motherboard Layout SYS_FAN DC_PWR F_ AU DI ATX_12V LVDS VG A_ CO NN RUSB30_1 Intel® Apollo Lake So C N3450 DM IC _C ON RUSB30_2 SATA_PWR SMBUS SATA3 MON_SW FPD_PWR FUSB20_1 LCD_VCC FUSB2...
Page 5
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 6
1-2 Product Specifications CPU Built in with an Intel® Quad-Core Celeron® N3450 So C (2.2 GHz) * Do not disassemble the onboard So C and the heatsinks by yourself to avoid damage to these components. ...
Page 7
Internal 1 x digital microphone header (DMIC_CON) Connectors 1 x speaker header (SPKR) 1 x buzzer header (SPEAKER) 1 x chassis intrusion jumper 1 x LPT/GPIO header (LPT_GPIO) 1 x LPT configuration jum...
Page 8
1-3 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 9
HDMI Port The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio output. You can use this port to connect ...
Page 10
1-6 Internal Connectors 1) ATX_12V 18) FPD 2) CPU_FAN 19) FPD_PWR 3) SYS_FAN 20) DMIC_CON 4) SATA3_0/1 21) F_AUDIO 5) SATA_PWR 22) SPKR 6) BAT 23) SPEAKER 7) BAT_CON 24) FUSB20_1/FUSB20_2 8) F_PANEL 2...
Page 11
DEBUG DEBUG DEBUG DEBUG HDD LED RES ET S 1) ATX_12V (2x2 12V Power Connector) This connector can be used to input power when the DC power jack on the rear panel is not connected. However, if the DC po...
Page 12
5) SATA_PWR (SATA Power Connector) This connector provides power to installed SATA devices. Pin No. Definition VCC GND GND +12V 6) BAT (Battery) The battery provides power to keep the values (such as ...
Page 13
8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative...
Page 14
10) LPT_GPIO (LPT/GPIO Header) Use this header to connect a LPT or GPIO device. Refer to the descriptions of the LPT_SEL and GPIO_ PWRSEL jumpers below for further configuration. LPT: Pin No. Definiti...
Page 15
13) GPIO_SET (GPIO Status Configuration Jumper) Use this jumper to set the GPIO status of the LPT_GPIO header to HIGH or LOW. 1-2 Close: Set to HIGH level (3V) (Default) 2-3 Close: Set to LOW level. 1...
Page 16
16) LCD_VCC (LVDS Drive Voltage Jumper) This jumper can be used to provide different screen voltage settings. 1-2 Close: Set to 3V. (Default setting) 2-3 Close: Set to 5V. 17) MON_SW (Flat Panel Displ...
Page 17
DE BU PO RT 19) FPD_PWR (Flat Panel Display Power Select Jumper) The power select jumper can be used to select the working voltage of the flat panel display. Make use your flat panel display supports ...
Page 18
22) SPKR (Speaker Header) This header connects to the L/R Audio output of the motherboard and supports 3W stereo speaker (4 Ohm) in an AIO chassis. Pin No. Definition Speaker OUT R- Speaker OUT R+ Spe...
Page 19
25) COMA/COMB/COME/COMF (Serial Port Headers) Each COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. R...
Page 20
28) CI (Chassis Intrusion Header) This motherboard provides a chassis detection feature that detects if the chassis cover has been removed. This function requires a chassis with chassis intrusion dete...
Page 21
F_USB30 F_ U F_ F_ 32) M.2 (M.2 Socket 3 Connector) F_USB3 F The M.2 connector supports M.2 SATA SSDs or M.2 PCIe SSDs. Follow the steps below to correctly install an M.2 SSD in the M.2 connector. St...
Page 22
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 23
2-2 Main Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. Main...
Page 24
2-3 Advanced Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Boot Save & Exit Security On Board LAN Controller [Enabled] On Board LAN Controller#2 [Enabled] Soft-O...
Page 25
Realtek PCIe GBE Family Controller This sub-menu provides information on LAN configuration and related configuration options. Trusted Computing Enables or disables Trusted Platform Module (TPM). IT868...
Page 26
C-States Enables or disables support for C-States. (Default: Enabled) Enhanced C-states Allows you to determine whether to let the CPU enter C states. When enabled, the CPU core frequency will be redu...
Page 27
Storage Allows you to select whether to enable the UEFI or legacy option ROM for the storage device controller. Do not launch Disables option ROM. UEFI Enables UEFI option ROM only. (Default) Legacy E...
Page 28
2-4 Security Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Boot Save & Exit Security Password Description If ONLY the Administrator's password is set, then this ...
Page 29
Attempt Secure Boot Enables or disables the secure boot function. Secure Boot requires all the applications that are running during the booting process to be pre-signed with valid digital certificates...
Page 30
2-5 Boot Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Boot Save & Exit Security Boot Configuration Setup Prompt Timeout 1 Bootup Num Lock State [On] Full Screen...
Page 31
VGA Support Allows you to select which type of operating system to boot. Auto Enables legacy option ROM only. EFI Driver Enables EFI option ROM. (Default) This item is configurable only when Fast Boot...
Page 32
2-6 Save & Exit Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Boot Save & Exit Security Save Options Save Changes and Exit Discard Changes and Exit Save Chan...
Page 33
Chapter 3 Appendix Drivers Installation Before installing the drivers, first install the operating system. After installing the operating system, insert the motherboard driver disk into your optical d...
Page 34
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 35
FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea...
Page 36
