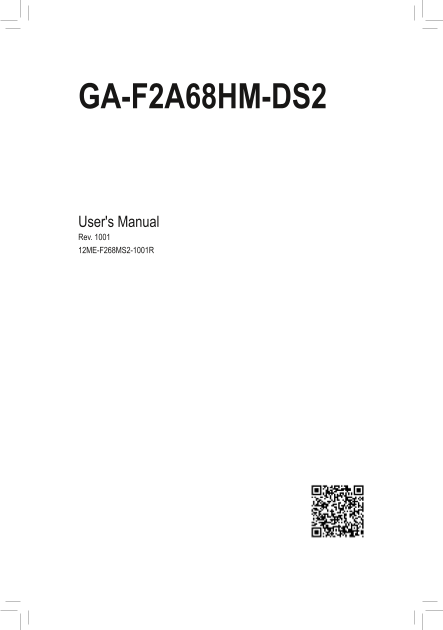

GA-F2A68HM-DS2
User's Manual Rev. 1001 12ME-F268MS2-1001R
Page Summary Contents For Gigabyte Motherboard GA-F2A68HM-DS2 (rev.1.0) User Manual English (version 1001)
Page 1
GA-F2A68HM-DS2 User's Manual Rev. 1001 12ME-F268MS2-1001R
Page 2
Motherboard GA-F2A68HM-DS2 Motherboard GA-F2A68HM-DS2 Oct. 24, 2014 Oct. 24, 2014 Copyright © 2014 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legal...
Page 3
Table of Contents GA-F2A68HM-DS2 Motherboard Layout .........................................................................4 GA-F2A68HM-DS2 Motherboard Block Diagram ...................................
Page 4
GA-F2A68HM-DS2 Motherboard Layout KB_MS_USB DV VG ATX_12V Socket FM2+ CPU_FAN R_USB30 GA-F2A68HM-DS2 SATA3 USB_LAN SYS_FAN1 DD R3 _2 AUDIO PCIEX16 Realtek® DD R3 _1 Gb E LAN M_BIOS PCIEX1 i TE® B_BIOS...
Page 5
GA-F2A68HM-DS2 Motherboard Block Diagram APU CLK+/- (100 MHz) 1 PCI Express x16 DISP CLK+/- (100 MHz) DDR3 2133/1866/ 1600/1333 MHz LAN Dual Channel Memory PCIe CLK AMD APU (100 MHz) D-Sub Realtek® Gb...
Page 6
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 7
1-2 Product Specifications FM2+ Socket: APU - AMD A series processors - AMD Athlon™ series processors (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD A68H Memory 2 x DDR3 DIM...
Page 8
Internal 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector Connectors 4 x SATA 6Gb/s connectors 1 x APU fan header 2 x system fan headers 1 x front panel header 1 x front panel aud...
Page 9
1-3 Installing the APU Read the following guidelines before you begin to install the APU: Make sure that the motherboard supports the APU. (Go to GIGABYTE's website for the latest APU support list.) A...
Page 10
1-5 Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: Make sure the motherboard supports the expansion card. Carefully read the manual that came...
Page 11
1-7 Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc. PS/2 K...
Page 12
1-8 Internal Connectors 1) ATX_12V 8) F_AUDIO 2) ATX 9) F_USB1/F_USB2 3) CPU_FAN 10) COM 4) SYS_FAN1/SYS_FAN2 11) CLR_CMOS 5) SATA3 0/1/2/3 12) CI 6) F_PANEL 13) BAT 7) SPDIF_O Read the following guid...
Page 13
DEBUG PORT DEBUG 1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components DEB...
Page 14
DEBUG PORT DEBUG PORT 5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors) DEBUG DEBUG PORT PORT The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Ea...
Page 15
8) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make...
Page 16
11) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch...
Page 17
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 18
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature, Vcore, and memory voltage. Whether the system will work stab...
Page 19
Core Performance Boost (Note 1) Allows you to determine whether to enable the Core Performance Boost (CPB) technology, a CPU performance-boost technology. (Default: Auto) Turbo Performance Boost Ratio...
Page 20
Advanced Memory Settings Extreme Memory Profile (X.M.P.) (Note), System Memory Multiplier, Memory Frequency(MHz) The settings above are synchronous to those under the same items on the Advanced Freque...
Page 21
Silent Allows the fan to run at slow speeds. Manual Allows you to control the fan speed under the Fan Speed Percentage item. Full Speed Allows the fan to run at full speeds. Fan Speed Percentage Allow...
Page 22
System Language Selects the default language used by the BIOS. System Date Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch between the Mon...
Page 23
Bootup Num Lock State Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: Enabled) Security Option Specifies whether a password is required every time t...
Page 24
LAN PXE Boot Option ROM Allows you to select whether to enable the legacy option ROM for the LAN controller. (Default: Disabled) This item is configurable only when CSM Support is set to Always. Stora...
Page 25
2-5 Peripherals IOMMU Enables or disables AMD IOMMU support. (Default: Enabled) On Chip USB Controller Enables or disables the integrated USB controller. (Default: Enabled) HD Audio Azalia Device Enab...
Page 26
GFX Configuration Primary Video Device Specifies the first initiation of the monitor display from the installed PCI graphics card, PCI Express graphics card or the onboard graphics. IGD Video Sets the...
Page 27
2-6 Power Management Resume by Alarm Determines whether to power on the system at a desired time. (Default: Disabled) If enabled, set the date and time as following: Wake up day: Turn on the system at...
Page 28
Power On Password Set the password when Power On By Keyboard is set to Password. Press <Enter> on this item and set a password with up to 5 characters and then press <Enter> to accept. To ...
Page 29
Boot Override Allows you to select a device to boot immediately. Press <Enter> on the device you select and select Yes to confirm. Your system will restart automatically and boot from that devic...
Page 30
Steps: In BIOS Setup, go to BIOS Features and set Windows 8 Features to Windows 8 and CSM Support to Never. Save the changes and exit BIOS Setup. Running the UEFI RAID Utility Restart your computer an...
Page 31
3. First, select a RAID mode and press <Enter>. The selections available depend on the number of the hard drives being installed. Then follow the on-screen instructions to specify the array size...
Page 32
Refer to the following for installing the driver during the Windows setup process. Step 1: Restart your system to boot from the Windows XP setup disk and press <F6> as soon as you see the messag...
Page 33
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 34
FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea...
Page 36
