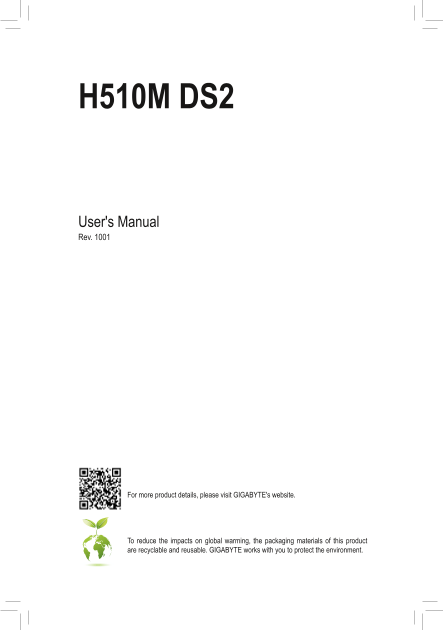

H510M DS2
User's Manual Rev. 1001
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For Gigabyte Motherboard H510M DS2 (rev.1.0) User Manual - English (Version 1001)
Page 1
H510M DS2 User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusabl...
Page 2
Copyright © 2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 3
Table of Contents H510M DS2 Motherboard Layout ....................................................................................4 Chapter 1 Hardware Installation ......................................
Page 4
H510M DS2 Motherboard Layout CO MA LP CPU_FAN ATX_12V_2X4 KB_MS_USB LGA1200 SATA3 USB_LAN M2 A_ SB Realtek® Gb E LAN H510M DS2 AUDIO PCIEX16 DD R4 _1 DD R4 _2 PCIEX1_2 BAT F_ U3 i TE® Super I/O Intel®...
Page 5
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 6
1-2 Product Specifications CPU LGA1200 package: - 11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors - 10th Generation Intel® Core™ i9 processors/Intel® ...
Page 7
Storage Interface Chipset: - 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) * The PCIEX1_1 slot shares bandwidth with the M.2 slot. When the PCIEX1_1 slot is ...
Page 8
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by moth...
Page 9
1-3 Installing the CPU Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) A...
Page 10
The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as following: Channel A: DDR4_1 Channel B: DDR4_2 Due to CPU limitations, read the following guidelines...
Page 11
RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs. Connection/ Speed LED Activity LED Activit...
Page 12
1-7 Internal Connectors 1) ATX_12V_2X4 8) F_PANEL 2) ATX 9) F_AUDIO 3) CPU_FAN 10) F_U32 4) SYS_FAN 11) F_USB2 5) SATA3 0/1/2/3 12) COMB 6) M2A_SB 13) SPI_TPM 7) BAT 14) CLR_CMOS Read the following gu...
Page 13
DEBUG PORT DEBUG PORT 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) DEBUG With the use of the power connector, the power supply can supply enough stable power to all the...
Page 14
F_USB30 F_ U F_ F_ DE BU DE BU PO RT PO RT DE BU DE BU PO RT PO RT F_USB3 F S F 5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with S...
Page 15
7) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the batte...
Page 16
9) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignm...
Page 17
F_USB30 F_ U F_ F_ 12) COMB (Serial Port Header) _ S The COM header can provide one serial port via an optional COM port cable. For purchasing the optional S_ COM port cable, please contact the loca...
Page 18
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 19
2-2 The Main Menu System Time Setup Menus Configuration Items Hardware Information Option Description Current Settings Quick Access Bar allows you to quickly move to the General Help, Easy Mode, Smart...
Page 20
2-3 Smart Fan 6 Use the <F6> function key to quickly switch to this screen. This screen allows you to configure fan speed related settings for each fan header or monitor your system/CPU temperat...
Page 21
FAN Stop Enables or disables the fan stop function. You can set the temperature limit using the temperature curve. The fan stops operation when the temperature is lower than the limit. (Default: Disab...
Page 22
2-5 Tweaker Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result ...
Page 23
No. of CPU Cores Enabled Allows you to select the number of CPU cores to enable in an Intel® multi-core CPU (the number of CPU cores may vary by CPU). Auto lets the BIOS automatically configure this s...
Page 24
C-States Control CPU Enhanced Halt (C1E) Enables or disables Intel® CPU Enhanced Halt (C1E) function, a CPU power-saving function in system halt state. When enabled, the CPU core frequency and voltage...
Page 25
Core Current Limit (Amps) Allows you to set a current limit for CPU Turbo mode. When the CPU current exceeds the specified current limit, the CPU will automatically reduce the core frequency in order ...
Page 26
Realtime Memory Timing Allows you to fine-tune memory timings after the BIOS stage. (Default: Auto) Memory Enhancement Settings Provides several memory performance enhancement settings: Auto, Relax OC...
Page 27
2-6 Settings Platform Power Platform Power Management Enables or disables the Active State Power Management function (ASPM). (Default: Disabled) PEG ASPM Allows you to configure the ASPM mode for the ...
Page 28
Er P Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled) Note: When this item is set to Enabled, the following functions will become unavailable: Resum...
Page 29
On Board LAN Controller Enables or disables the onboard LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disab...
Page 30
PXE boot wait time Allows you to configure how long to wait before you can press <Esc> to abort the PXE boot. This item is configurable only when Network Stack is enabled. (Default: 0) Media det...
Page 31
Trusted Computing Enables or disables Trusted Platform Module (TPM). PC Health Status Reset Case Open Status Disabled Keeps or clears the record of previous chassis intrusion status. (Default) Enabled...
Page 32
2-7 System Info. This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. Access Level ...
Page 33
2-8 Boot Bootup Num Lock State Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: On) CFG Lock Enables or disables the MSR 0x E2 function. (Default: Di...
Page 34
VGA Support Allows you to select which type of operating system to boot. Auto Enables legacy option ROM only. EFI Driver Enables EFI option ROM. (Default) This item is configurable only when Fast Boot...
Page 35
Other PCI devices Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Do not launch Disable...
Page 36
2-9 Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return...
Page 37
Chapter 3 Appendix Drivers Installation Before installing the drivers, first install the operating system. After installing the operating system, insert the motherboard driver disc into your optical d...
Page 38
Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Nam...
Page 39
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Market...
