Gigabyte Motherboard B650M K (Rev.1.0) User Manual English (Version 1001)

Summary

Unlock your PC's full potential with this essential motherboard guide. This manual provides step-by-step instructions for everything from initial hardware setup—including CPU, memory, and expansion cards—to advanced BIOS configuration and operating system installation. Designed for PC enthusiasts and builders, it covers all necessary details to ensure smooth assembly and optimal performance. Whether you are a first-time builder or experienced tech user, this resource guarantees proper understanding of your board's features and allows you to quickly get up and running with reliable, detailed instructions.

📄 Preview 📖 Table of Contents Contents PAGE OF 33

Page 1 Text Content

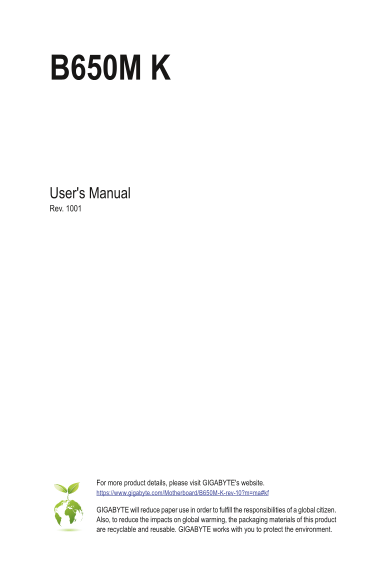

User's Manual Rev. 1001

For more product details, please visit GIGABYTE's website. https://www.gigabyte.com/Motherboard/B650M-K-rev-10?m=ma#kf

GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.

Page Summary Contents For Gigabyte Motherboard B650M K (Rev.1.0) User Manual English (Version 1001)

Page 1 User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. https://www.gigabyte.com/Motherboard/B650M-K-rev-10?m=ma#kf GIGABYTE will reduce paper use in order to fulfill the re...
Page 2 Copyright © 2023 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 3 Table of Contents Chapter 1 Product Introduction .......................................................................................4 1-1 Motherboard Layout ..........................................
Page 4 Chapter 1 Product Introduction 1-1 Motherboard Layout ATX_12V CPU_FAN DP_HDMI Socket AM5 KB_MS_USB M2 B_ CP M2 A_ CP QFLED QFLASH_PLUS U32_LAN Realtek® B6 2.5Gb E LAN DD R5 _A AUDIO DD R5 _A PCIEX16 D...
Page 5 1-2 Box Contents B650M K motherboard User's Manual I/O Shield One SATA cable * The box contents above are for reference only and the actual items shall depend on the product package you obtain. The bo...
Page 6 Chapter 2 Hardware Installation 2-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 7 2-2 Product Specifications CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD B650 Memory Support for DDR5 5200/...
Page 8 USB Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal U...
Page 9 BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may ...
Page 10 2-3 Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU s...
Page 11 B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. jGently press the CPU socket lever handle down and away from the socket. kCompletely lift u...
Page 12 C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for you...
Page 13 2-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 14 2-5 Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: Make sure the motherboard supports the expansion card. Carefully read the manual that came...
Page 15 2-6 Back Panel Connectors Display Port Display Port delivers high quality digital imaging and audio, supporting bi-directional audio transmission. You can use this port to connect your Display Port-su...
Page 16 RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following describes the states of the LAN port LEDs. Activity LEDSpeed LED Speed LED: Activit...
Page 17 2-7 Internal Connectors 1) ATX_12V 10) F_AUDIO 2) ATX 11) F_U32C 3) CPU_FAN 12) F_U32 4) SYS_FAN1/2 13) F_USB 5) SATA3 0/1/2/3 14) SPI_TPM 6) D_LED 15) BAT 7) LED_C 16) CLR_CMOS 8) M2A_CPU/M2B_CPU 17)...
Page 18 DEBUG DEBUG PORT 1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on ...
Page 19 DEBUG PORT DE BU PO RT 3/4) CPU_FAN/SYS_FAN1/2 (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure ...
Page 20 F_ US B3 F_ F_ F_ F_ US B3 6) D_LED (Addressable LED Strip Header) The header can be used to connect a standard 5050 addressable LED strip, with maximum power rating of 5A (5V) and maximum number of 1...
Page 21 F_USB30 F_U F_ F_ F_USB30 F_U F_ F_ F_USB3F S3 _0 _SB __B F_USB3F S_ 8) M2A_CPU/M2B_CPU (M.2 Socket 3 Connectors) There are two types of M.2 SSDs: M.2 SATA SSDs and M.2 PCIe SSDs....
Page 22 9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignme...
Page 23 F_USB30 F_U F_ F_ F_USB3F 10) F_AUDIO (Front Panel Audio Header) B_ The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this h...
Page 24 12) F_U32 (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3...
Page 25 F_USB30 F_U F_ F_ F_USB3F 14) SPI_TPM (Trusted Platform Module Header) _0 You may connect an SPI TPM (Trusted Platform Module) to this header. __B S_ Pin No. Definition Data Output _F Po...
Page 26 16) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch...
Page 27 Chapter 3 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 28 Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or ...
Page 29 Chapter 4 Installing the Operating System and Drivers 4-1 Operating System Installation With the correct BIOS settings, you are ready to install the operating system. As some operating systems already...
Page 30 4-2 Drivers Installation After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE ...
Page 31 Chapter 5 Appendix 5-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 10 Minimum Number of Hard Drives Number of hard drives * (Number of hard drives/2) * Array Capacity Size of the smallest dr...
Page 32 Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Nam...
Page 33 Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : h...
