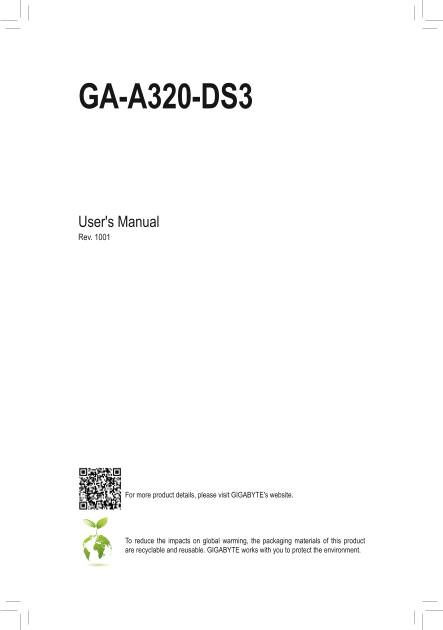

Page 1
GA-A320-DS3 User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusa...
Page 2
Motherboard GA-A320-DS3 Motherboard GA-A320-DS3 Mar. 10, 2017 Feb. 17, 2017 Copyright © 2017 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally reg...
Page 3
Table of Contents GA-A320-DS3 Motherboard Layout ................................................................................4 Chapter 1 Hardware Installation ........................................
Page 4
GA-A320-DS3 Motherboard Layout ATX_12V CPU_FAN KB_MS DV SYS_FAN1 SP DI F_ ATX Socket AM4 R_USB30 R_USB USB31_LAN AUDIO B_BIOS M_BIOS PCIEX1_1 GA-A320-DS3 PCIEX16 DD R4 _2 DD R4 _1 Realtek® Gb E LAN SY...
Page 5
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 6
1-2 Product Specifications CPU AM4 Socket: AMD Ryzen™ processor - AMD 7th Generation A-series/Athlon™ processors (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD A320 Memory 2 x...
Page 7
Internal 1 x 24-pin ATX main power connector Connectors 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel aud...
Page 8
Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specificatio...
Page 9
1-3 Installing the CPU Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) A...
Page 10
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. 1. Dual Channel mode cannot be enabled if only one memory module is installed. 2. When enabling...
Page 11
USB 3.1 Gen 2 Type-A Port (Red) The USB 3.1 Gen 2 Type-A port supports the USB 3.1 Gen 2 specification and is compatible to the USB 3.1 Gen 1 and USB 2.0 specification. Use this port for USB devices. ...
Page 12
1-7 Internal Connectors 1) ATX_12V 8) SPDIF_O 2) ATX 9) F_AUDIO 3) CPU_FAN 10) F_USB30 4) SYS_FAN1/2/3 11) F_USB1/F_USB2 5) SATA3 0/1/2/3 12) COM 6) BAT 13) TPM 7) F_PANEL 14) CLR_CMOS Read the follow...
Page 13
DEBUG PORT DEBUG PORT DE BU PO RT 1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) DEBUG DEBUG With the use of the power connector, the power supply can supply enough stable po...
Page 14
DEBUG DEBUG PORT PORT DEBUG DEBUG PORT PORT 5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Ea...
Page 15
7) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignme...
Page 16
9) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make...
Page 17
12) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition ...
Page 18
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 19
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to...
Page 20
AMD Cool&Quiet function Enabled Lets the AMD Cool'n'Quiet driver dynamically adjust the CPU clock and VID to reduce heat output from your computer and its power consumption. (Default) Disabled Dis...
Page 21
Channel Interleaving Enables or disables memory channel interleaving. Enabled allows the system to simultaneously access different channels of the memory to increase memory performance and stability. ...
Page 22
Fan Control Use Temperature Input Allows you to select the reference temperature for fan speed control. Temperature Interval Allows you to select the temperature interval for fan speed change. Fan Con...
Page 23
2-3 System This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. System Language Sel...
Page 24
2-4 BIOS Boot Option Priorities Specifies the overall boot order from the available devices. Removable storage devices that support GPT format will be prefixed with "UEFI:" string on the boo...
Page 25
SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before t...
Page 26
Network Stack Disables or enables booting from the network to install a GPT format OS, such as installing the OS from the Windows Deployment Services server. (Default: Disabled) Ipv4 PXE Support Enabl...
Page 27
2-5 Peripherals AMD CPU f TPM Enables or disables the TPM 2.0 function integrated in the AMD CPU. (Default: Disabled) Primary Video Device (Note) Specifies the first initiation of the monitor display ...
Page 28
USB Storage Devices Displays a list of connected USB mass storage devices. This item appears only when a USB storage device is installed. Trusted Computing Enables or disables Trusted Platform Module ...
Page 29
2-6 Chipset IOMMU Enables or disables AMD IOMMU support. (Default: Auto) Integrated Graphics (Note) Enables or disables the onboard graphics function. Auto The BIOS will automatically enable or disabl...
Page 30
2-7 Power AC BACK Determines the state of the system after the return of power from an AC power loss. Memory The system returns to its last known awake state upon the return of the AC power. Always On...
Page 31
Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Instant-Off Press the power button and then the system will be turned off instantly. (Default) D...
Page 32
2-8 Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return...
Page 33
Chapter 3 Appendix 3-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 10 Minimum Number of Hard Drives Array Capacity Number of hard drives * Size of the smallest drive (Number of hard drives/2...
Page 34
5. After setting the capacity, move to Create Array and press <Enter> to begin. 6. After completing, you'll be brought back to the Array Management screen. Under Manage Array Properties you can ...
Page 35
3-2 Drivers Installation Before installing the drivers, first install the operating system. (The following instructions use Windows 10 as the example operating system.) After installing the operating ...
Page 36
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 37
FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea...
Page 39
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Market...
