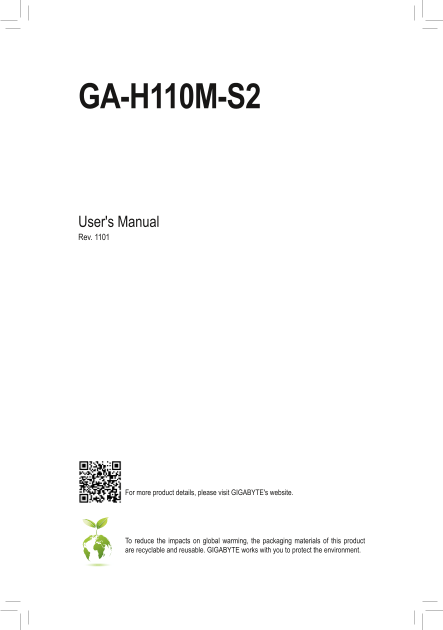

GA-H110M-S2
User's Manual Rev. 1101
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For Gigabyte Motherboard GA-H110M-S2 (rev.1.x) User Manual - English (version 1101)
Page 1
GA-H110M-S2 User's Manual Rev. 1101 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusa...
Page 2
Copyright © 2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 3
Table of Contents GA-H110M-S2 Motherboard Layout ................................................................................4 Chapter 1 Hardware Installation ........................................
Page 4
GA-H110M-S2 Motherboard Layout CPU_FAN KB_MS VG ATX_12V ATX LGA1151 R_USB30 USB_LAN GA-H110M-S2 DD R4 _1 AUDIO SYS_FAN Realtek® Gb E LAN PCIEX16 SATA3 DD R4 _2 F_ US B3 PCIEX1_1 i TE® Super I/O Intel®...
Page 5
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 6
1-2 Product Specifications CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 packa...
Page 7
USB Chipset: - 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the in...
Page 8
Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specificatio...
Page 9
1-3 Installing the CPU Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) A...
Page 10
The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as following: Channel A: DDR4_1 Channel B: DDR4_2 Due to CPU limitations, read the following guidelines...
Page 11
USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices. Line In/Rear Speaker Out (Blue) The line in jack. Use this audio jack for line in devices such as a...
Page 12
1-7 Internal Connectors 1) ATX_12V 8) SPDIF_O 2) ATX 9) CLR_CMOS 3) CPU_FAN 10) F_USB30 4) SYS_FAN 11) F_USB1/F_USB2 5) SATA3 0/1/2/3 12) TPM 6) F_PANEL 13) BAT 7) F_AUDIO Read the following guideline...
Page 13
DEBUG PORT 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components DEBUG on ...
Page 14
DEBUG DEBUG PORT PORT DEBUG DEBUG PORT PORT 5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Ea...
Page 15
7) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignm...
Page 16
F_USB30 F_ U F_ F_ 10) F_USB30 (USB 3.0/2.0 Header) The header conforms to USB 3.0/2.0 specification and each header can provide two USB ports. For purchasing the optional 3.5" front panel that p...
Page 17
13) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the batt...
Page 18
2-1 Startup Screen The following startup Logo screen will appear when the computer boots. Function Keys On the main menu of the BIOS Setup program, press arrow keys to move among the items and press &...
Page 19
M.I.T. Current Status This screen provides information on CPU/memory frequencies/parameters. Advanced Frequency Settings Graphics Slice Ratio Allows you to set the Graphics Slice Ratio. Graphics Un Sl...
Page 20
Hyper-Threading Technology (Note) Allows you to determine whether to enable multi-threading technology when using an Intel® CPU that supports this function. This feature only works for operating syste...
Page 21
System Memory Multiplier Allows you to set the system memory multiplier. Auto sets memory multiplier according to memory SPD data. (Default: Auto) Memory Frequency (MHz) The first memory frequency val...
Page 22
Advanced Voltage Settings Advanced Power Settings CPU Vcore Loadline Calibration Allows you to configure Load-Line Calibration for the CPU Vcore voltage. Selecting a higher level keeps the CPU Vcore v...
Page 23
CPU Fan Speed Control (CPU_FAN Connector) Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Normal Allows the fan to run at different speeds according ...
Page 24
2-3 System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. System ...
Page 25
2-4 BIOS Features Boot Option Priorities Specifies the overall boot order from the available devices. Removable storage devices that support GPT format will be prefixed with "UEFI:" string o...
Page 26
SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) Last Boot HDD Only Except for the previous boot drive, all SATA devices are disable...
Page 27
Other PCI Device ROM Priority Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Disabled ...
Page 28
2-5 Peripherals Intel Platform Trust Technology (PTT) Enables or disables Intel® PTT Technology. (Default: Disabled) Initial Display Output Specifies the first initiation of the monitor display from t...
Page 29
Security Device Support Enables or disables Trusted Platform Module (TPM). (Default: Enable) Pending operation To clear TPM related settings, set this item to TPM Clear. (Default: None) TPM 20 Interfa...
Page 30
2-6 Chipset VT-d (Note) Enables or disables Intel® Virtualization Technology for Directed I/O. (Default: Disabled) Internal Graphics Enables or disables the onboard graphics function. (Default: Auto) ...
Page 31
2-7 Power Management AC BACK Determines the state of the system after the return of power from an AC power loss. Always Off The system stays off upon the return of the AC power. (Default) Always On Th...
Page 32
Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Instant-Off Press the power button and then the system will be turned off instantly. (Default) D...
Page 33
2-8 Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return...
Page 34
Chapter 3 Appendix Drivers Installation Before installing the drivers, first install the operating system. (The following instructions use Windows 8.1 as the example operating system.) After installin...
Page 35
Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Nam...
Page 36
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Market...
