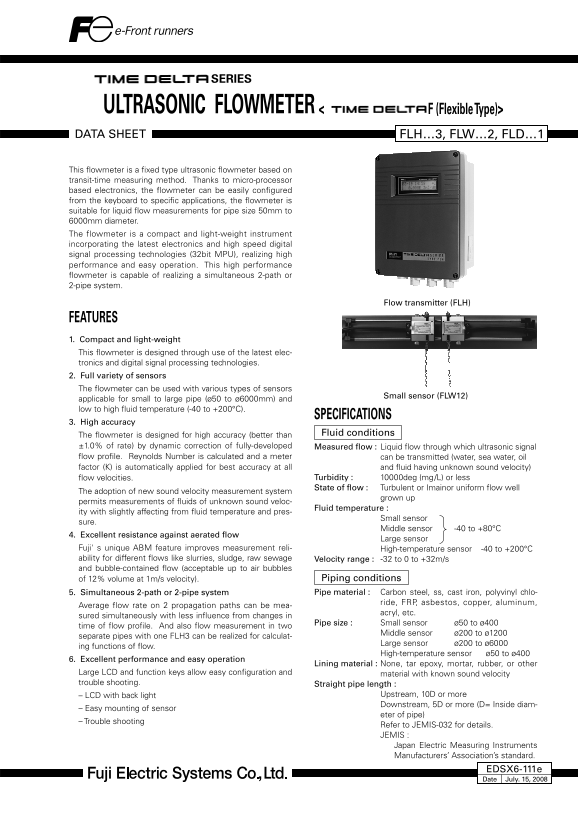

ULTRASONIC FLOWMETER < F (Flexible Type)> DATA SHEET FLH…3, FLW…2, FLD…1

This fl owmeter is a fi xed type ultrasonic fl owmeter based on transit-time measuring method. Thanks to micro-processor based electronics, the flowmeter can be easily configured from the keyboard to specifi c applications, the fl owmeter is suitable for liquid fl ow measurements for pipe size 50mm to 6000mm diameter. The flowmeter is a compact and light-weight instrument incorporating the latest electronics and high speed digital signal processing technologies (32bit MPU), realizing high performance and easy operation. This high performance fl owmeter is capable of realizing a simultaneous 2-path or 2-pipe system.

Flow transmitter (FLH)

FEATURES

1. Compact and light-weight This fl owmeter is designed through use of the latest elec- tronics and digital signal processing technologies. 2. Full variety of sensors The fl owmeter can be used with various types of sensors

Small sensor (FLW12)

applicable for small to large pipe (ø50 to ø6000mm) and low to high fl uid temperature (-40 to +200°C).

SPECIFICATIONS

3. High accuracy

The fl owmeter is designed for high accuracy (better than Fluid conditions

±1.0% of rate) by dynamic correction of fully-developed Measured fl ow : Liquid fl ow through which ultrasonic signal fl ow profi le. Reynolds Number is calculated and a meter can be transmitted (water, sea water, oil factor (K) is automatically applied for best accuracy at all and fl uid having unknown sound velocity)

fl ow velocities. Turbidity : 10000deg (mg/L) or less State of fl ow : Turbulent or Imainor uniform fl ow well

The adoption of new sound velocity measurement system

grown up

permits measurements of fl uids of unknown sound veloc-

Fluid temperature :

ity with slightly affecting from fl uid temperature and pres-

Small sensor

sure.

Middle sensor -40 to +80°C

4. Excellent resistance against aerated fl ow

Large sensor

Fuji' s unique ABM feature improves measurement reli- High-temperature sensor -40 to +200°C ability for different fl ows like slurries, sludge, raw sewage Velocity range : -32 to 0 to +32m/s and bubble-contained fl ow (acceptable up to air bubbles

of 12% volume at 1m/s velocity). Piping conditions 5. Simultaneous 2-path or 2-pipe system Pipe material : Carbon steel, ss, cast iron, polyvinyl chlo-

ride, FRP, asbestos, copper, aluminum,

Average flow rate on 2 propagation paths can be mea-

acryl, etc.

sured simultaneously with less infl uence from changes in

Pipe size : Small sensor ø50 to ø400

time of fl ow profi le. And also fl ow measurement in two

Middle sensor ø200 to ø1200

separate pipes with one FLH3 can be realized for calculat-

Large sensor ø200 to ø6000

ing functions of fl ow.

High-temperature sensor ø50 to ø400

6. Excellent performance and easy operation

Lining material : None, tar epoxy, mortar, rubber, or other

Large LCD and function keys allow easy confi guration and material with known sound velocity trouble shooting. Straight pipe length :

– LCD with back light Upstream, 10D or more Downstream, 5D or more (D= Inside diam-

– Easy mounting of sensor

eter of pipe)

– Trouble shooting

Refer to JEMIS-032 for details. JEMIS : Japan Electric Measuring Instruments Manufacturers’ Association’s standard.

EDSX6-111e Date July. 15, 2008
