am ily In tro ctio
February 1998 Revised April 1999

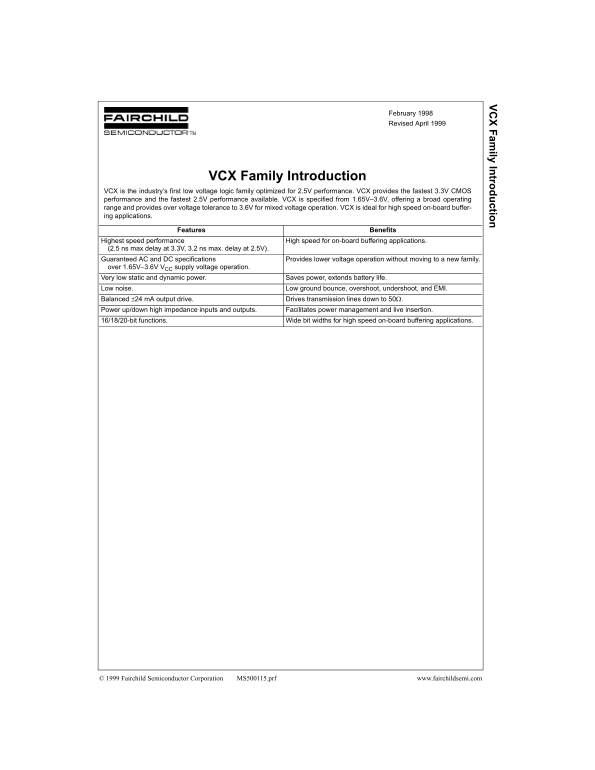

VCX Family Introduction
VCX is the industry’s first low voltage logic family optimized for 2.5V performance. VCX provides the fastest 3.3V CMOS performance and the fastest 2.5V performance available. VCX is specified from 1.65V–3.6V, offering a broad operating range and provides over voltage tolerance to 3.6V for mixed voltage operation. VCX is ideal for high speed on-board buffer- ing applications.
Features Benefits
Highest speed performance High speed for on-board buffering applications. (2.5 ns max delay at 3.3V, 3.2 ns max. delay at 2.5V).
Guaranteed AC and DC specifications Provides lower voltage operation without moving to a new family.
over 1.65V–3.6V VCC supply voltage operation. Very low static and dynamic power. Saves power, extends battery life. Low noise. Low ground bounce, overshoot, undershoot, and EMI. Balanced ±24 m A output drive. Drives transmission lines down to 50Ω. Power up/down high impedance inputs and outputs. Facilitates power management and live insertion. 16/18/20-bit functions. Wide bit widths for high speed on-board buffering applications.
© 1999 Fairchild Semiconductor Corporation MS500115.prf www.fairchildsemi.com
