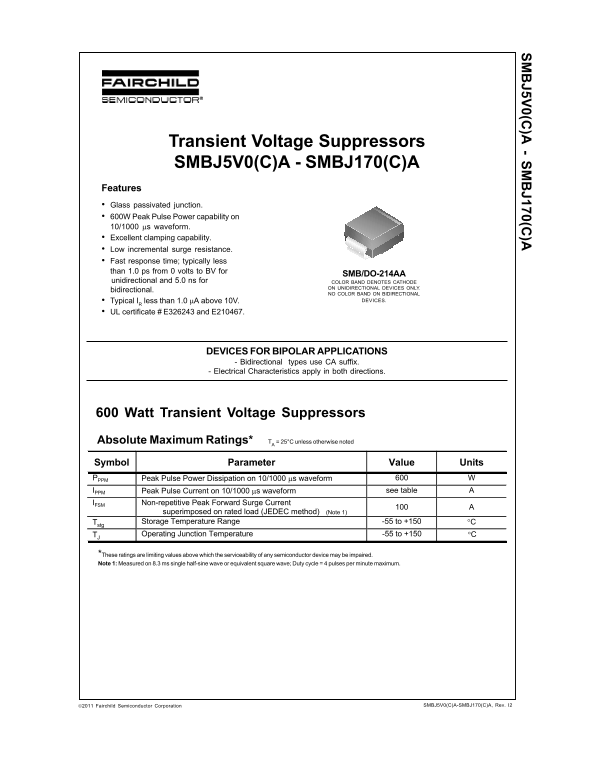

SM J5V0(C )A - SM J170(C )A
Transient Voltage Suppressors SMBJ5V0(C)A - SMBJ170(C)A Features Glass passivated junction.
600W Peak Pulse Power capability on 10/1000 µs waveform. Excellent clamping capability. Low incremental surge resistance. Fast response time; typically less than 1.0 ps from 0 volts to BV for
SMB/DO-214AA
unidirectional and 5.0 ns for COLOR BAND DENOTES CATHODE
ON UNIDIRECTIONAL DEVICES ONLY.
bidirectional.
NO COLOR BAND ON BIDIRECTIONAL
Typical IR less than 1.0 µA above 10V. DEVICES.
UL certificate # E326243 and E210467.
DEVICES FOR BIPOLAR APPLICATIONS - Bidirectional types use CA suffix. - Electrical Characteristics apply in both directions.
600 Watt Transient Voltage Suppressors Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units PPPM Peak Pulse Power Dissipation on 10/1000 µs waveform 600 W IPPM Peak Pulse Current on 10/1000 µs waveform see table A IFSM Non-repetitive Peak Forward Surge Current
superimposed on rated load (JEDEC method) (Note 1) 100 A Tstg Storage Temperature Range -55 to +150 °C TJ Operating Junction Temperature -55 to +150 °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. Note 1: Measured on 8.3 ms single half-sine wave or equivalent square wave; Duty cycle = 4 pulses per minute maximum.
