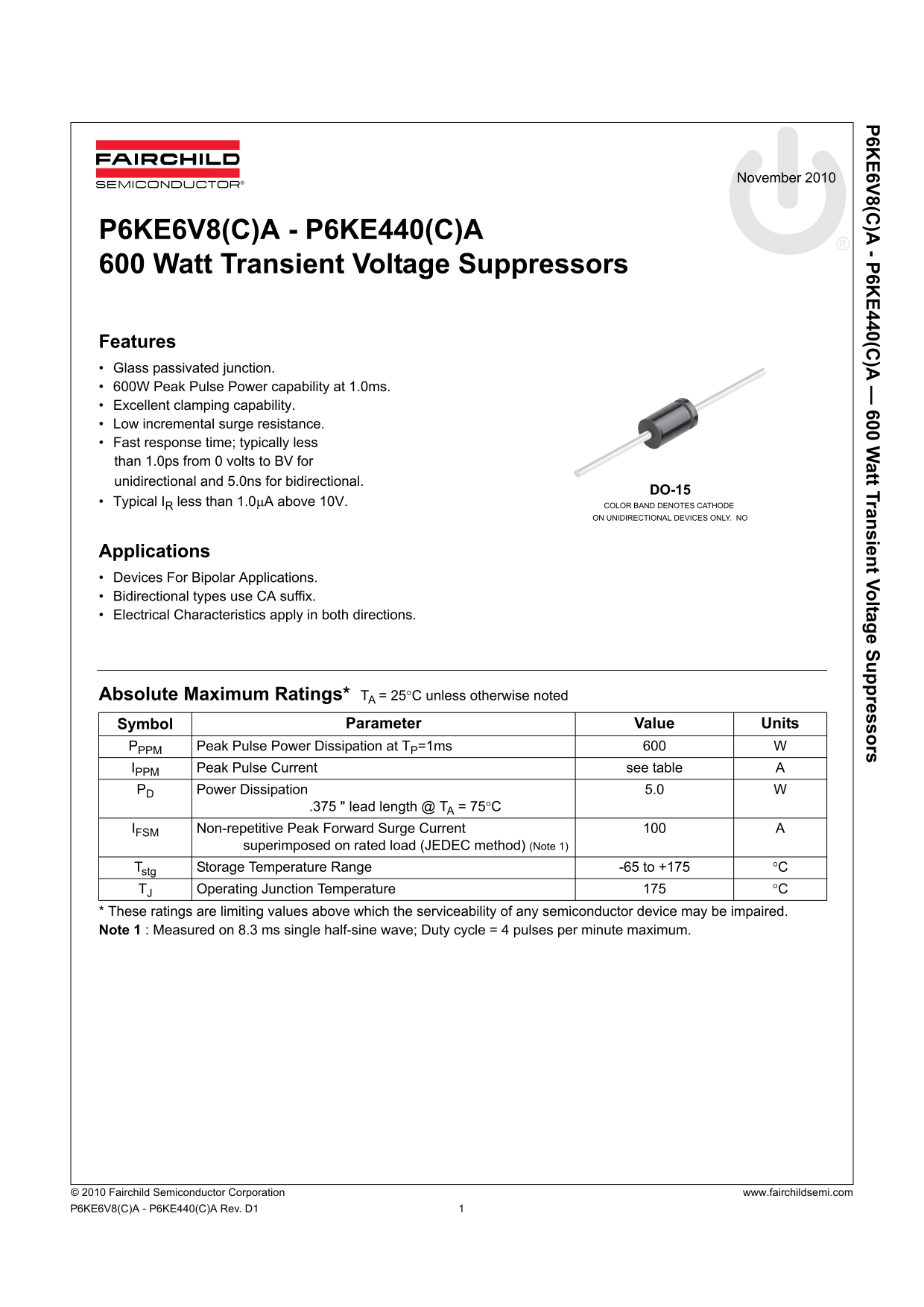

P6K E6V8(C )A - P6K E440(C )A 600 W att Transient Voltage Suppressors
November 2010
P6KE6V8(C)A - P6KE440(C)A 600 Watt Transient Voltage Suppressors
Features Glass passivated junction. 600W Peak Pulse Power capability at 1.0ms. Excellent clamping capability. Low incremental surge resistance. Fast response time; typically less than 1.0ps from 0 volts to BV for unidirectional and 5.0ns for bidirectional.
DO-15
Typical IR less than 1.0μA above 10V. COLOR BAND DENOTES CATHODE
ON UNIDIRECTIONAL DEVICES ONLY. NO
Applications Devices For Bipolar Applications. Bidirectional types use CA suffix. Electrical Characteristics apply in both directions.
Absolute Maximum Ratings* TA = 25°C unless otherwise noted
Symbol Parameter Value Units
PPPM Peak Pulse Power Dissipation at TP=1ms IPPM Peak Pulse Current see table PD Power Dissipation 5.0
.375 " lead length @ TA = 75°C
IFSM Non-repetitive Peak Forward Surge Current
superimposed on rated load (JEDEC method) (Note 1)
Tstg Storage Temperature Range -65 to +175 °C TJ Operating Junction Temperature °C * These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. Note 1 : Measured on 8.3 ms single half-sine wave; Duty cycle = 4 pulses per minute maximum.
