Fairchild NC7SZ04 Data Handbook

Summary

The NC7SZ04 is an ultra-high speed inverter from the TinyLogic UHS series, engineered for reliable performance in mixed-voltage digital systems. Featuring high output drive at 3V and a broad operational voltage range (1.65V to 5.5V), it excels at signal level shifting (e.g., 5V to 3V translation) while maintaining low power dissipation. This technical manual provides comprehensive documentation, including detailed electrical characteristics, recommended operating conditions, absolute maximum ratings, and package compatibility information for electronics engineers integrating high-performance logic within their designs.

📄 Preview PAGE OF 10

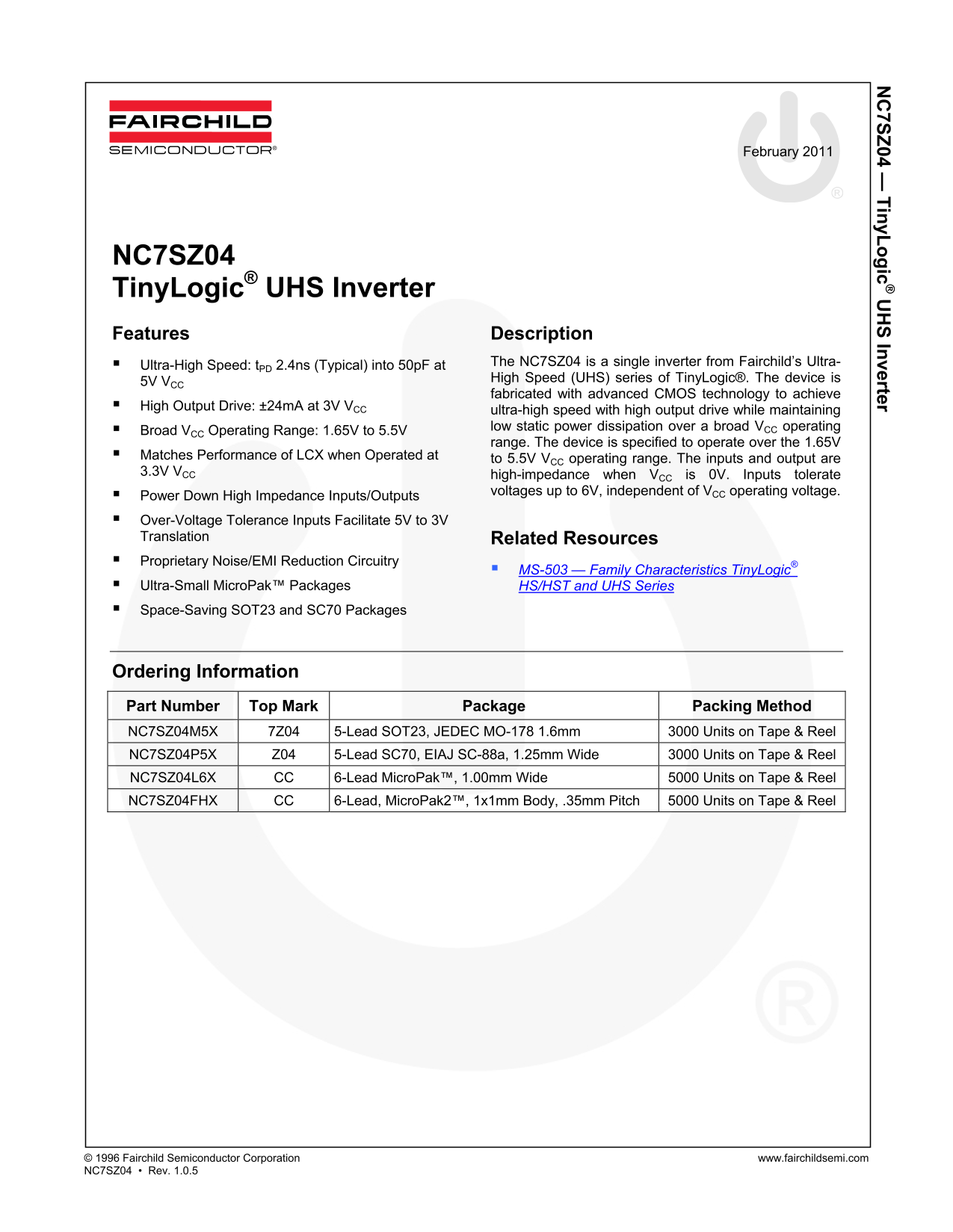

Page 1 Text Content

7S 04 — in y L ic In verter

February 2011

NC7SZ04 Tiny Logic® UHS Inverter Features Description

 Ultra-High Speed: t PD 2.4ns (Typical) into 50p F at The NC7SZ04 is a single inverter from Fairchild’s Ultra- High Speed (UHS) series of Tiny Logic®. The device is

5V VCC

fabricated with advanced CMOS technology to achieve

 High Output Drive: ±24m A at 3V VCC

ultra-high speed with high output drive while maintaining  Broad VCC Operating Range: 1.65V to 5.5V low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V

 Matches Performance of LCX when Operated at to 5.5V VCC operating range. The inputs and output are 3.3V VCC high-impedance when VCC is 0V. Inputs tolerate

voltages up to 6V, independent of VCC operating voltage.

 Power Down High Impedance Inputs/Outputs  Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Related Resources  Proprietary Noise/EMI Reduction Circuitry

 MS-503 — Family Characteristics Tiny Logic®

 Ultra-Small Micro Pak™ Packages HS/HST and UHS Series  Space-Saving SOT23 and SC70 Packages

Ordering Information Part Number Top Mark Package Packing Method NC7SZ04M5X 7Z04 5-Lead SOT23, JEDEC MO-178 1.6mm 3000 Units on Tape & Reel NC7SZ04P5X Z04 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3000 Units on Tape & Reel NC7SZ04L6X CC 6-Lead Micro Pak™, 1.00mm Wide 5000 Units on Tape & Reel NC7SZ04FHX CC 6-Lead, Micro Pak2™, 1x1mm Body, .35mm Pitch 5000 Units on Tape & Reel

© 1996 Fairchild Semiconductor Corporation www.fairchildsemi.com NC7SZ04 • Rev. 1.0.5

Page Summary Contents For Fairchild NC7SZ04 Data Handbook

Page 1 7S 04 — in y L ic In verter February 2011 NC7SZ04 Tiny Logic® UHS Inverter Features Description  Ultra-High Speed: t PD 2.4ns (Typical) into 50p F at The NC7SZ04 is a single inverter from Fairchild’s...
Page 2 7S 04 — in y L ic In verter Connection Diagrams IEEC/IEC Figure 1. Logic Symbol Pin Configurations Figure 2. SC70 and SOT23 (Top View) Figure 3. Micro Pak™ (Top Through View) Pin Definitions Pin # SC7...
Page 3 7S 04 — in y L ic In verter Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating c...
Page 4 7S 04 — in y L ic In verter DC Electrical Characteristics TA=25°C TA=-40 to 85°C Symbol Parameter VCC Conditions Units Min. Typ. Max. Min. Max. 1.65 to 1.95 0.75VCC 0.75VCC HIGH Level Input Voltage 2....
Page 5 7S 04 — in y L ic In verter AC Electrical Characteristics TA=25°C TA=-40 to 85°C Symbol Parameter VCC Conditions Units Figure Min. Typ. Max. Min. Max. 1.65 2.0 5.3 11.4 2.0 12.0 CL=15p F, RL=1M Figur...
Page 6 7S 04 — in y L ic In verter Physical Dimensions TOP VIEW LAND PATTERN RECOMMENDATION SEE DETAIL A 1.45 MAX NOTES: UNLESS OTHEWISE SPECIFIED A) THIS PACKAGE CONFORMS TO JEDEC MO-178, ISSUE B, VARIATION...
Page 7 7S 04 — in y L ic In verter Physical Dimensions Figure 8. 5-Lead, SC70, EIAJ SC-88a, 1.25mm Wide Package drawings are provided as a service to customers considering Fairchild components. Drawings may ...
Page 8 7S 04 — in y L ic In verter Physical Dimensions TOP VIEW 1X PIN 1 IDENTIFIER 0.55MAX (0.30) PIN 1 6X RECOMMENED LAND PATTERN DETAIL A 1.0 DETAIL A 0.075 X 45 PIN 1 TERMINAL CHAMFER BOTTOM VIEW Notes: ...
Page 9 7S 04 — in y L ic In verter Physical Dimensions 1.00 AB PIN 1 MIN 250u M TOP VIEW RECOMMENDED LAND PATTERN FOR SPACE CONSTRAINED PCB 0.55MAX SIDE VIEW 0.73 0.09 6XDETAIL A 0.191 ALTERNATIVE LAND PATTE...
Page 10 7S 04 — in y L ic In verter © 1996 Fairchild Semiconductor Corporation www.fairchildsemi.com NC7SZ04 • Rev. 1.0.5 10

Manual Details

Brand Fairchild
Pages 10
File Size 641.38 KB
Published July 12, 2026
0 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What are the operating voltage limits for this device?

The recommended supply voltage range is 1.65V to 5.50V.

How fast does the NC7SZ04 operate and what output features does it have?

It operates at t ≤ 2.4ns (typical) and offers high output drive of ±24mA, while maintaining low static power dissipation.

What happens to the inputs when Vcc is set to 0V?

The inputs and output are described as being in a high-impedance state when Vcc is equal to 0V.

Which package option is recommended for space-constrained PCBs?

The datasheet specifies detailed land patterns, suggesting options like the MicroPak™ or specific SOT23/SC70 packages depending on available surface area.
