Fairchild MJD42C Data Sheet

Summary

The MJD42C is a General Purpose Amplifier and low-speed switching transistor designed for reliable electronic power applications. Available in surface mount and straight lead packages, it offers electrical performance similar to the popular TIP42C series. This manual provides comprehensive details including absolute maximum ratings, full electrical specifications, typical operational curves (e.g., saturation voltage, current gain), and package dimensions. It is essential documentation for engineers and circuit designers developing power electronics that require dependable switching or amplification components.

📄 Preview PAGE OF 5

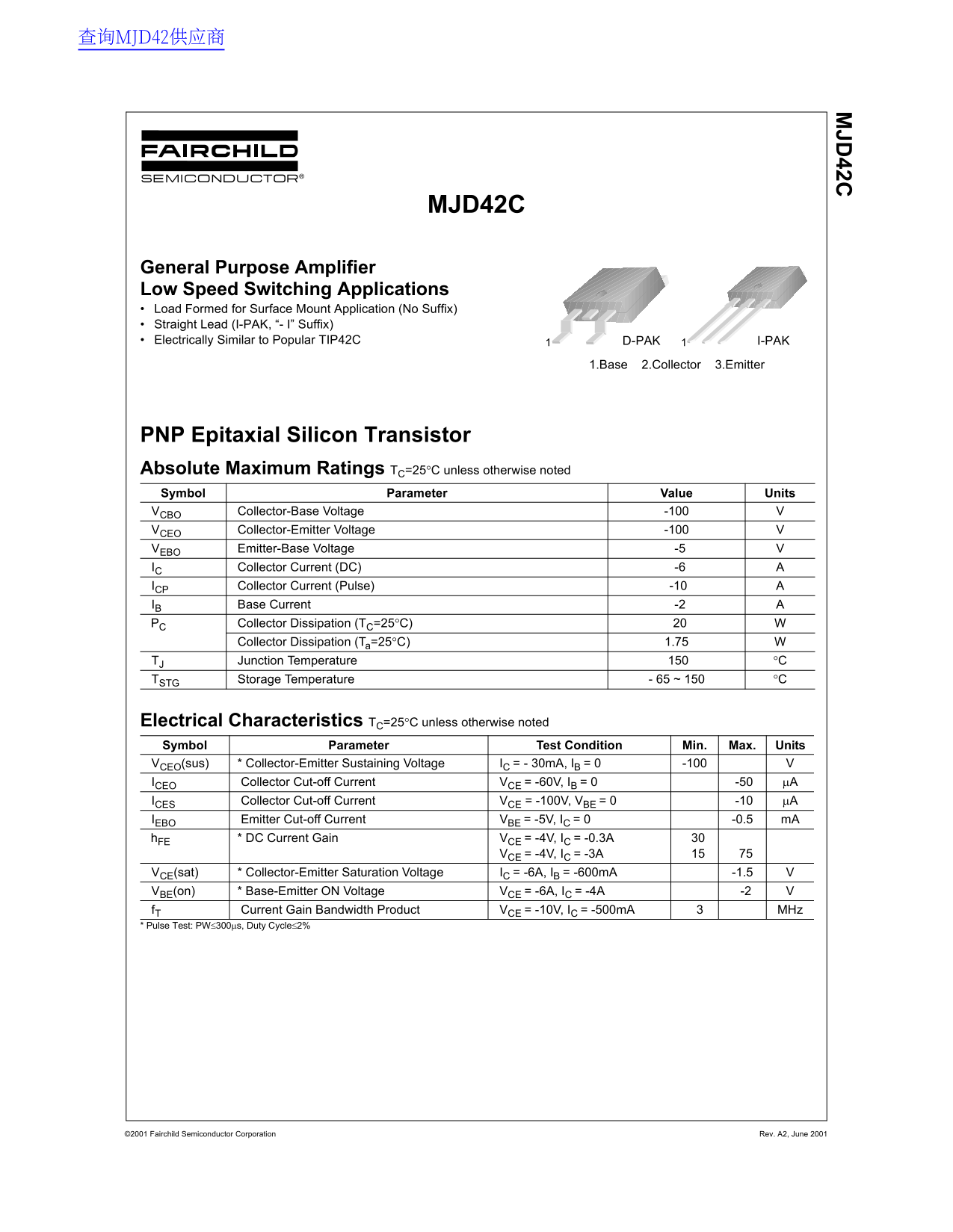

Page 1 Text Content

查询MJD42供应商

JD 42C

MJD42C

General Purpose Amplifier Low Speed Switching Applications Load Formed for Surface Mount Application (No Suffix) Straight Lead (I-PAK, “- I” Suffix) Electrically Similar to Popular TIP42C D-PAK I-PAK1

1.Base 2.Collector 3.Emitter

PNP Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol Parameter Value Units VCBO Collector-Base Voltage -100

VCEO Collector-Emitter Voltage -100 VEBO Emitter-Base Voltage -5 IC Collector Current (DC) -6 ICP Collector Current (Pulse) -10

IB Base Current -2

Collector Dissipation (TC=25°C)

Collector Dissipation (Ta=25°C) 1.75

TJ Junction Temperature °C TSTG Storage Temperature - 65 ~ 150 °C

Electrical Characteristics TC=25°C unless otherwise noted Symbol Parameter Test Condition Min. Max. Units VCEO(sus) * Collector-Emitter Sustaining Voltage IC = - 30m A, IB = 0 -100

ICEO Collector Cut-off Current VCE = -60V, IB = 0 -50 µA ICES Collector Cut-off Current VCE = -100V, VBE = 0 -10 µA IEBO Emitter Cut-off Current VBE = -5V, IC = 0 -0.5 m A * DC Current Gain VCE = -4V, IC = -0.3A

VCE = -4V, IC = -3A

VCE(sat) * Collector-Emitter Saturation Voltage IC = -6A, IB = -600m A -1.5 VBE(on) * Base-Emitter ON Voltage VCE = -6A, IC = -4A -2 f T Current Gain Bandwidth Product VCE = -10V, IC = -500m A MHz

* Pulse Test: PW≤300µs, Duty Cycle≤2%

©2001 Fairchild Semiconductor Corporation Rev. A2, June 2001

Page Summary Contents For Fairchild MJD42C Data Sheet

Page 1 查询MJD42供应商 JD 42C MJD42C General Purpose Amplifier Low Speed Switching Applications Load Formed for Surface Mount Application (No Suffix) Straight Lead (I-PAK, “- I” Suffix) Electrically Similar to Po...
Page 2 JD 42C Typical Characteristics ST ,t [µ s] , T FF IM [p F] , C AP AC IT AN , D EN AI ob FE VCE = -2V IC = 10 IB -1 VBE(sat) VCE(sat) IC[A], COLLECTOR CURRENT IC[A], COLLECTOR CURRENT Figure 1. DC curr...
Page 3 JD 42C Typical Characteristics (Continued) [W PO ER IS SI PA TI TC[o C], CASE TEMPERATURE Figure 7. Power Derating ©2001 Fairchild Semiconductor Corporation Rev. A2, June 2001
Page 4 JD 42C Package Demensions D-PAK MAX0.96 0.76 ±0.10 2.30TYP 2.30TYP [2.30±0.20] [2.30±0.20] 2.30 ±0.20 (0 6.60 ±0.20 .7 0) (5.34) (0 .1 0) (3 .0 5) (0 .9 0) (5.04) IN 0. (1 .0 (1.50) 0) (2XR0.25) Dimen...
Page 5 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...

Manual Details

Brand Fairchild
Pages 5
File Size 46.16 KB
Published July 07, 2026
3 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the absolute maximum DC collector current?

The maximum rated collector current (I_C) is -6 A.

Can this amplifier be used in life support systems?

No, it requires express written approval from Fairchild Semiconductor Corporation.

What is the nominal power dissipation at 25°C?

For T = 25°C, the collector dissipation is rated up to 20 W.
