FAIRCHILD 2N6897 DATA SHEET
Summary
The 2N6897 is a P-Channel enhancement mode MOSFET capable of handling -12A current and -100V voltage. Designed for high-speed switching applications like motor drivers and regulators, it features low gate drive power and high input impedance.

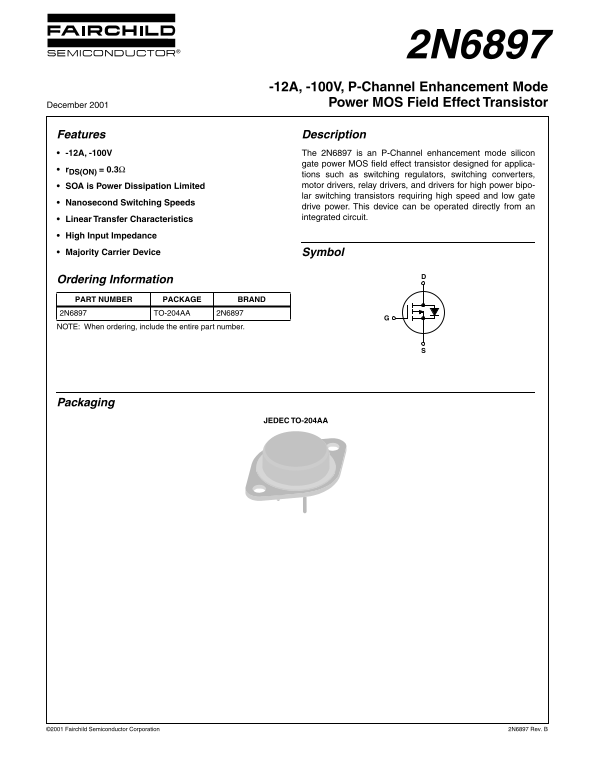

Page 1 Text Content
2N6897 -12A, -100V, P-Channel Enhancement Mode December 2001 Power MOS Field Effect Transistor
Features Description -12A, -100V The 2N6897 is an P-Channel enhancement mode silicon
gate power MOS field effect transistor designed for applica-
= 0.3 DS(ON)
tions such as switching regulators, switching converters, SOA is Power Dissipation Limited motor drivers, relay drivers, and drivers for high power bipo- lar switching transistors requiring high speed and low gate
Nanosecond Switching Speeds
drive power. This device can be operated directly from an Linear Transfer Characteristics integrated circuit.
High Input Impedance Majority Carrier Device Symbol
Ordering Information PART NUMBER PACKAGE BRAND 2N6897 TO-204AA 2N6897 NOTE: When ordering, include the entire part number.
Packaging
JEDEC TO-204AA
©2001 Fairchild Semiconductor Corporation 2N6897 Rev. B
