Fairchild NDS9955 Data Sheet

Summary

Fairchild Semiconductor data sheet for NDS9955 N-Channel enhancement mode power MOSFETs using high-density DMOS technology. Available in SOT-23, SOT-223, SOIC-16, SuperSOT-6, and SuperSOT-8 packages. Covers 50V rating, thermal characteristics, electrical specs, and single/dual configurations. Applications include disk drive motors and battery-powered circuits. For power electronics designers using compact surface mount components.

📄 Preview PAGE OF 8

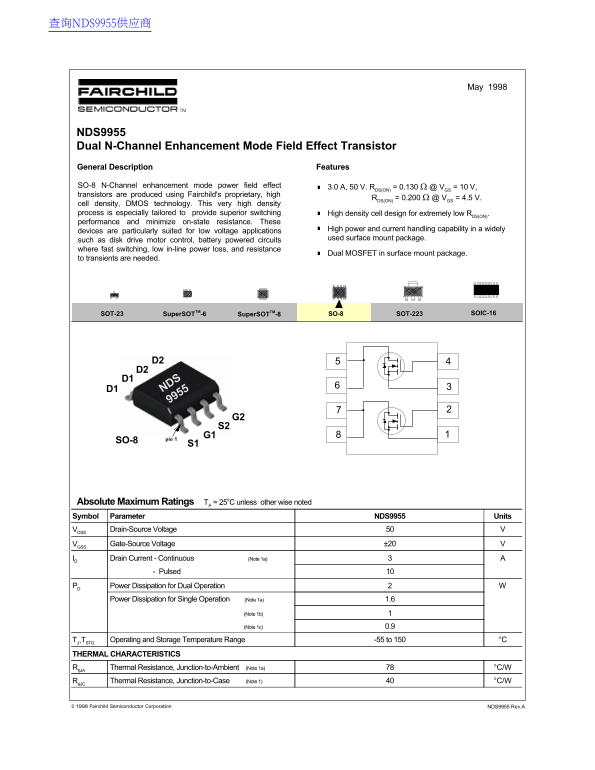

Page 1 Text Content

查询NDS9955供应商

May 1998

NDS9955 Dual N-Channel Enhancement Mode Field Effect Transistor General Description Features SO-8 N-Channel enhancement mode power field effect 3.0 A, 50 V. RDS(ON) = 0.130 Ω @ VGS = 10 V, transistors are produced using Fairchild's proprietary, high

RDS(ON) = 0.200 Ω @ VGS = 4.5 V.

cell density, DMOS technology. This very high density process is especially tailored to provide superior switching High density cell design for extremely low RDS(ON). performance and minimize on-state resistance. These

High power and current handling capability in a widely

devices are particularly suited for low voltage applications

used surface mount package.

such as disk drive motor control, battery powered circuits where fast switching, low in-line power loss, and resistance

Dual MOSFET in surface mount package.

to transients are needed.

SOT-23 Super SOTTM-8 SOT-223Super SOTTM-6 SOIC-16SO-8

D1 NDS

G2 S2 G1SO-8

Absolute Maximum Ratings TA = 25o C unless other wise noted Symbol Parameter NDS9955 Units

VDSS Drain-Source Voltage

VGSS Gate-Source Voltage ±20

ID Drain Current - Continuous (Note 1a)

- Pulsed

PD Power Dissipation for Dual Operation 2

Power Dissipation for Single Operation (Note 1a) 1.6

(Note 1b) (Note 1c) 0.9 TJ,TSTG Operating and Storage Temperature Range -55 to 150 °C

THERMAL CHARACTERISTICS

RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W

© 1998 Fairchild Semiconductor Corporation NDS9955 Rev.A

Page Summary Contents For Fairchild NDS9955 Data Sheet

Page 1 查询NDS9955供应商 May 1998 NDS9955 Dual N-Channel Enhancement Mode Field Effect Transistor General Description Features SO-8 N-Channel enhancement mode power field effect 3.0 A, 50 V. RDS(ON) = 0.130 Ω @ V...
Page 2 Electrical Characteristics (TA = 25 OC unless otherwise noted ) Symbol Parameter Conditions Min Typ Max Units OFF CHARACTERISTICS BVDSS Drain-Source Breakdown Voltage VGS = 0 V, I D = 250 µA ∆BVDSS/∆T...
Page 3 (O LI IN IN -S Typical Electrical Characteristics IN -S -R IS V = 10VGS 6.0V V = 3.0VGS V , DRAIN-SOURCE VOLTAGE (V) I , DRAIN CURRENT (A) Figure 1. On-Region Characteristics. Figure 2. On-Resistance ...
Page 4 Typical Electrical Characteristics (continued) IN (O LI r( t) , N LI IV IN -S -R IS IE IS I = 3AD 1.8 V = 10VGS C iss 1.4 C oss C rss f = 1 MHz 0.6 V = 0 VGS V , DRAIN TO SOURCE VOLTAGE (V) T , JUNCTI...
Page 5 SO-8 Tape and Reel Data and Package Dimensions SOIC(8lds) Packaging Configuration: Figure 1.0 Packaging Description: ELECTROSTATIC SOIC-8 parts are shipped in tape. The carrier tape is DO NO SHI SEN P...
Page 6 SO-8 Tape and Reel Data and Package Dimensions, continued SOIC(8lds) Embossed Carrier Tape Configuration: Figure 3.0 K0 E2 Wc B0 User Direction of Feed Dimensions are in millimeter Pkg type A0 B0 D0 D...
Page 7 SO-8 Tape and Reel Data and Package Dimensions, continued SOIC-8 (FS PKG Code S1) Scale 1:1 on letter size paper Dimensions shown below are in: inches [millimeters] Part Weight per unit (gram): 0.0774...
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ ISOP...
