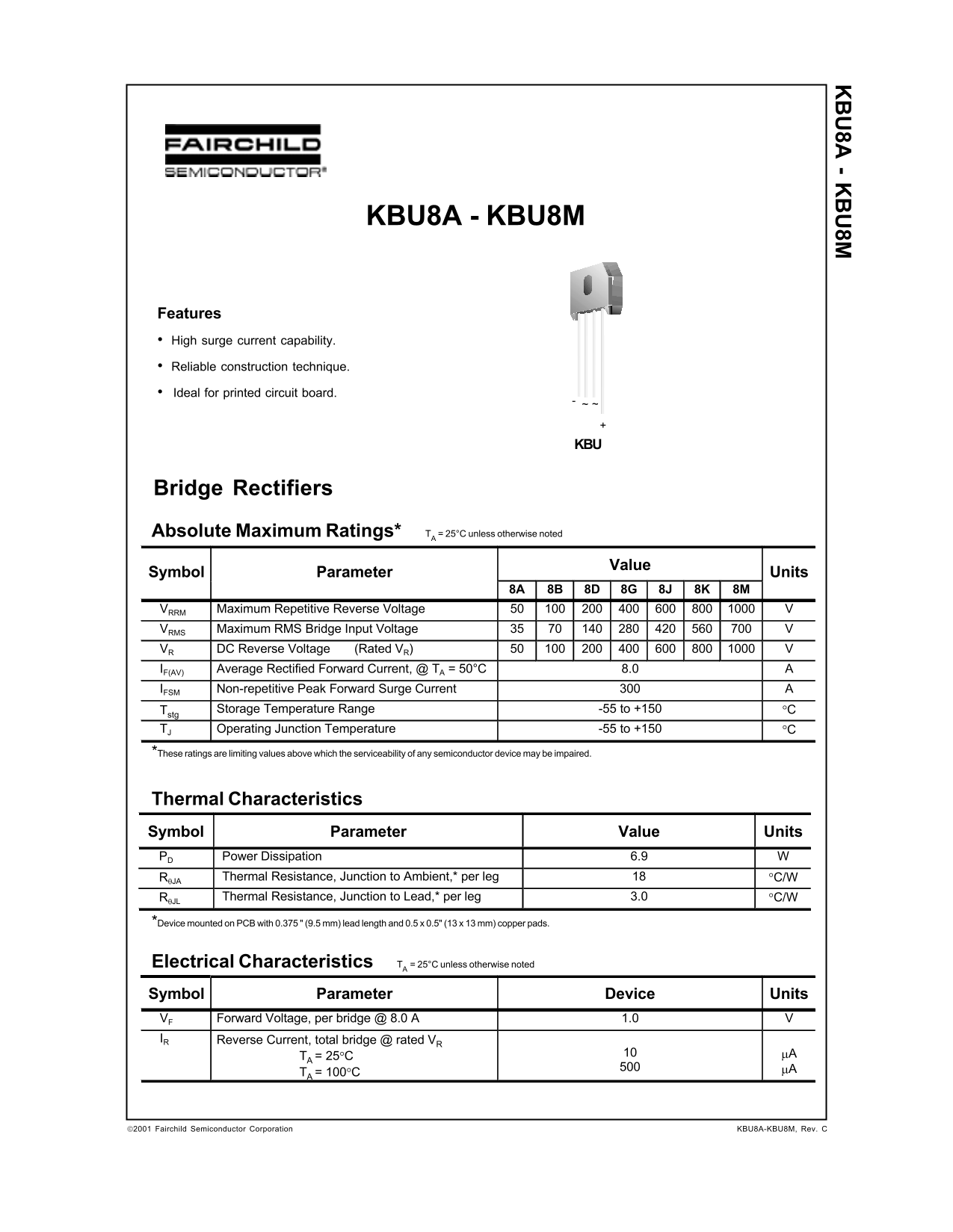

KBU8A - KBU8M
Features High surge current capability. Reliable construction technique. • Ideal for printed circuit board.
Bridge Rectifiers Absolute Maximum Ratings* TA = 25°C unless otherwise noted
Value
Symbol Parameter Units 8A 8B 8D 8G 8J 8K 8M VRRM Maximum Repetitive Reverse Voltage 50 100 200 400 600 800 1000 V VRMS Maximum RMS Bridge Input Voltage 35 70 140 280 420 560 700 V VR DC Reverse Voltage (Rated VR) 50 100 200 400 600 800 1000 V IF(AV) Average Rectified Forward Current, @ TA = 50°C 8.0 A IFSM Non-repetitive Peak Forward Surge Current 300 A Tstg Storage Temperature Range -55 to +150 °C TJ Operating Junction Temperature -55 to +150 °C *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 6.9 W RθJA Thermal Resistance, Junction to Ambient,* per leg 18 °C/W RθJL Thermal Resistance, Junction to Lead,* per leg 3.0 °C/W *Device mounted on PCB with 0.375 " (9.5 mm) lead length and 0.5 x 0.5" (13 x 13 mm) copper pads.
Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Device Units VF Forward Voltage, per bridge @ 8.0 A 1.0 V IR Reverse Current, total bridge @ rated VR
TA = 25°C µA TA = 100°C µA
