The FQPF3N90 is a high-performance N-Channel MOSFET built with advanced DMOS planar stripe technology, engineered for superior switching capabilities and efficiency up to 900V. Ideal for switch mode power supplies and applications requiring fast current handling and robust performance under high energy pulses. This technical manual provides comprehensive documentation on electrical characteristics, including drain/gate parameters, thermal ratings, and timing specifications necessary for reliable circuit design.

📄 Preview PAGE OF 8

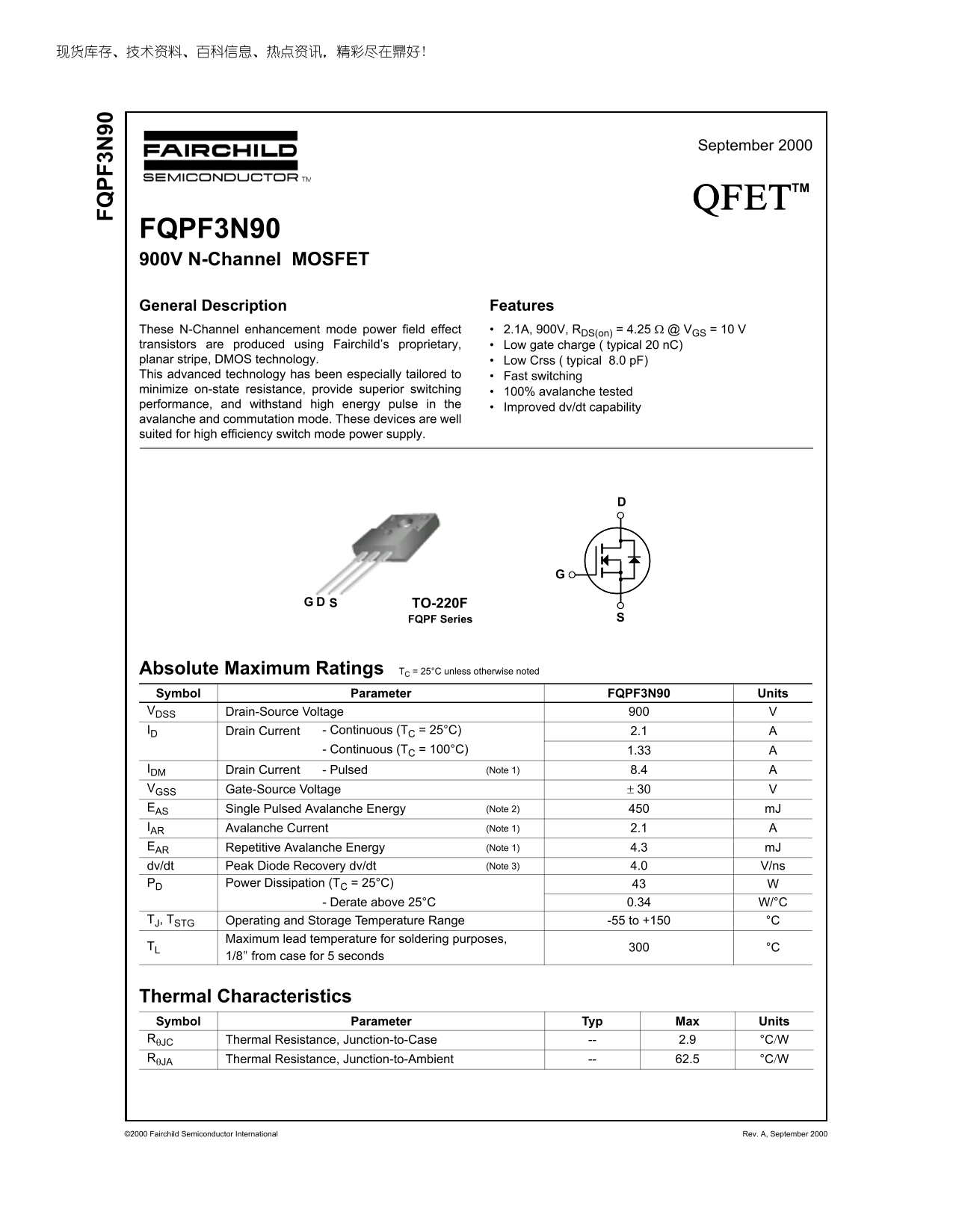

Page 1 Text Content

September 2000

QFETTM

FQPF3N90 900V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 2.1A, 900V, RDS(on) = 4.25 Ω @ VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 20 n C) planar stripe, DMOS technology. Low Crss ( typical 8.0 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the Improved dv/dt capability avalanche and commutation mode. These devices are well suited for high efficiency switch mode power supply.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted

Symbol Parameter FQPF3N90 Units

VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 2.1

- Continuous (TC = 100°C) 1.33

IDM Drain Current - Pulsed (Note 1) 8.4 VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 2.1 EAR Repetitive Avalanche Energy (Note 1) 4.3 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.34 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 2.9 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2000 Fairchild Semiconductor International Rev. A, September 2000

Page Summary Contents For Fairchild FQPF3N90 Data Handbook (1) (1)

Page 1 September 2000 QFETTM FQPF3N90 900V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 2.1A, 900V, RDS(on) = 4.25 Ω @ VGS = 10 V transistors are produced...
Page 2 3N Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS...
Page 3 Typical Characteristics ap ac ita nc [p F] (O [Ω , D ra in ur re nt [A ra in -S ou rc n- es is ta nc Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.5 V 6.0 V Bottom : 5.5 V ※ Notes : ※ Notes : 1. 250μs Pulse Test ...
Page 4 3N Typical Characteristics (Continued) BV SS , ( or al iz ed , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge 0.9 ※ Notes : 1. V GS = 0 V ※ Notes : 1. V GS = 10 V 2. I = 1.8 A , Junction Tem...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive Switchi...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Driver ) IF...
Page 7 Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Rev. A, September 2000©2000 Fairchild Semiconductor International
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...

Manual Details

Brand Fairchild
Pages 8
File Size 690.80 KB
Published July 22, 2026
0 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What types of applications are recommended for this MOSFET?

These devices are suitable for high-efficiency switch mode power supplies.

How is its performance optimized?

The advanced technology minimizes on-state resistance, provides superior switching, and withstands high energy pulses.

What is the operating temperature range?

The component can operate in a wide range of -55 to +150 °C.

Are there any critical usage restrictions mentioned?

It is not authorized for use as a critical component in life support devices without express written approval.
