Fairchild FQPF30N06 Data Handbook

Summary

This high-performance N-Channel MOSFET (FQPF30N06) is built for efficient power management, offering 21A of current at 60V using advanced planar stripe DMOS technology. It features superior switching capability and robust operation up to 175°C. The technical guide details all electrical characteristics, absolute maximum ratings, and thermal parameters, making it the ideal component for designers building reliable power solutions in automotive systems, DC/DC converters, and portable battery-operated devices.

📄 Preview PAGE OF 8

Page 1 Text Content

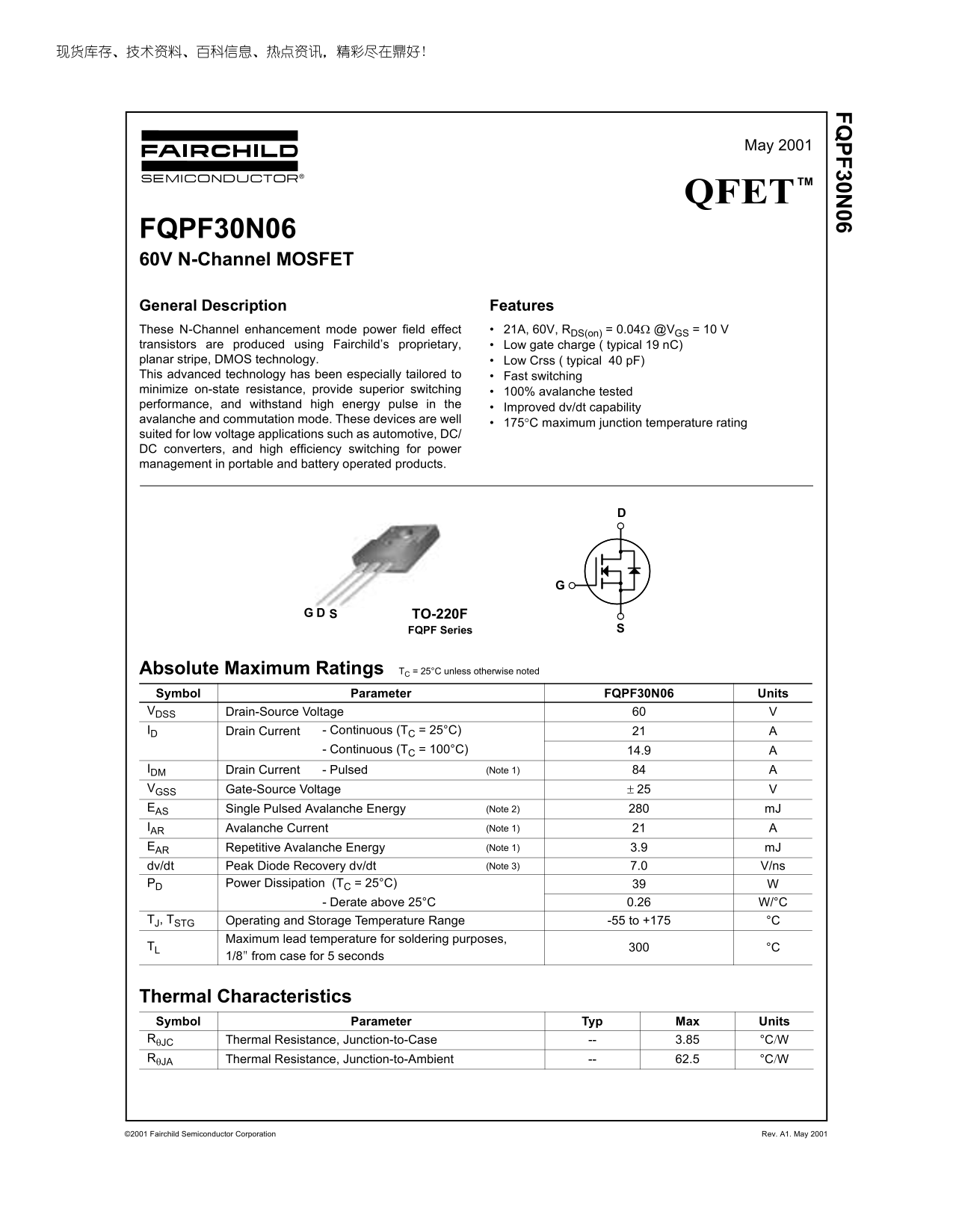

FQ PF30N

May 2001

FQPF30N06 60V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 21A, 60V, RDS(on) = 0.04Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 19 n C) planar stripe, DMOS technology. Low Crss ( typical 40 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well

175°C maximum junction temperature rating

suited for low voltage applications such as automotive, DC/ DC converters, and high efficiency switching for power management in portable and battery operated products.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF30N06 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C)

- Continuous (TC = 100°C) 14.9

IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage ± 25 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) EAR Repetitive Avalanche Energy (Note 1) 3.9 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 7.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.26 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +175 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 3.85 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2001 Fairchild Semiconductor Corporation Rev. A1. May 2001

Page Summary Contents For Fairchild FQPF30N06 Data Handbook

Page 1 FQ PF30N May 2001 FQPF30N06 60V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 21A, 60V, RDS(on) = 0.04Ω @VGS = 10 V transistors are produced using F...
Page 2 FQ PF30N Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ...
Page 3 FQ PF30N Typical Characteristics DS (O [m Ca pa cit an ce [p F] Dr ai n- So ur ce n- es is ta nc D, ra in Cu rre nt [A VGS Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.0 V 5.5 V Bottom : 5.0 V ※ Notes : ※ Notes ...
Page 4 FQ PF30N Typical Characteristics (Continued) BV DS , (N orm ali ze d) , D ra in ur re nt [A Dr ain -S ou rce rea kd ow n V olt ag 0.9 ※ Notes : 1. VGS = 0 V 0.5 ※ Notes : 2. ID = 250 μA 1. VGS = 10 V ...
Page 5 FQ PF30N Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductiv...
Page 6 FQ PF30N Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Dr...
Page 7 FQ PF30N Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ©2001 Fairchild Semiconductor Corporation Rev. A1. May 2001
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
