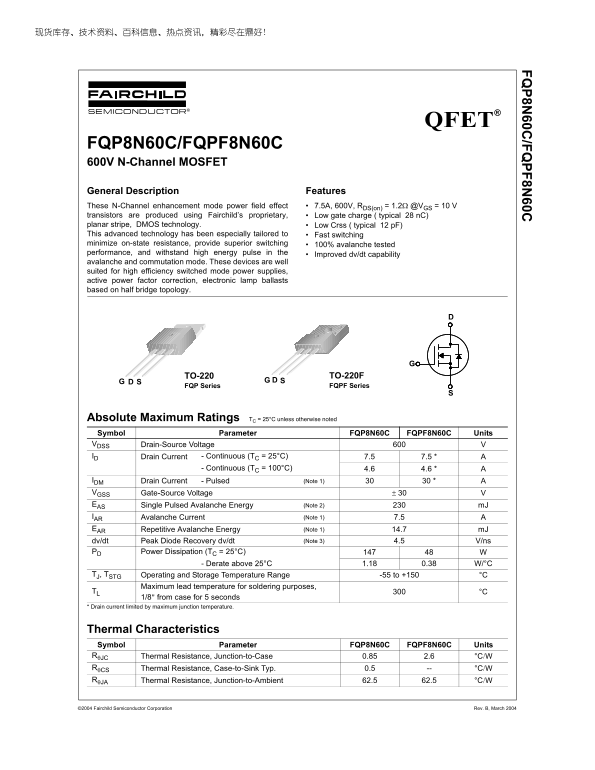

FQ P8N 60C /FQ PF8N 60C
QFET®
FQP8N60C/FQPF8N60C 600V N-Channel MOSFET
General Description Features These N-Channel enhancement mode power field effect 7.5A, 600V, RDS(on) = 1.2Ω @VGS = 10 V transistors are produced using Fairchilds proprietary, Low gate charge ( typical 28 n C) planar stripe, DMOS technology. Low Crss ( typical 12 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the
Improved dv/dt capability
avalanche and commutation mode. These devices are well suited for high efficiency switched mode power supplies, active power factor correction, electronic lamp ballasts based on half bridge topology.
TO-220 TO-220F
SD SD
FQP Series G FQPF Series
Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQP8N60C FQPF8N60C Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 7.5 7.5 *
- Continuous (TC = 100°C) 4.6 4.6 *
IDM Drain Current - Pulsed (Note 1) 30 * VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 7.5 EAR Repetitive Avalanche Energy (Note 1) 14.7 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns
PD Power Dissipation (TC = 25°C)
- Derate above 25°C 1.18 0.38 W/°C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C
Maximum lead temperature for soldering purposes,
TL °C
1/8" from case for 5 seconds
* Drain current limited by maximum junction temperature.
Thermal Characteristics Symbol Parameter FQP8N60C FQPF8N60C Units RθJC Thermal Resistance, Junction-to-Case 0.85 2.6 °C/W RθCS Thermal Resistance, Case-to-Sink Typ. 0.5 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 62.5 °C/W
