Fairchild FOD2741A Data Handbook

Summary

This advanced integrated circuit combines an optocoupler, precision reference voltage source, and error amplifier into a single package, providing superior signal isolation. Designed for power supply designers crafting highly regulated AC to DC power supplies and DC/DC converters, this series offers enhanced stability and reduced component count. The manual details the electrical characteristics, functional diagrams, pinouts, and deep technical data required for implementing reliable, high-performance isolated systems.

📄 Preview PAGE OF 15

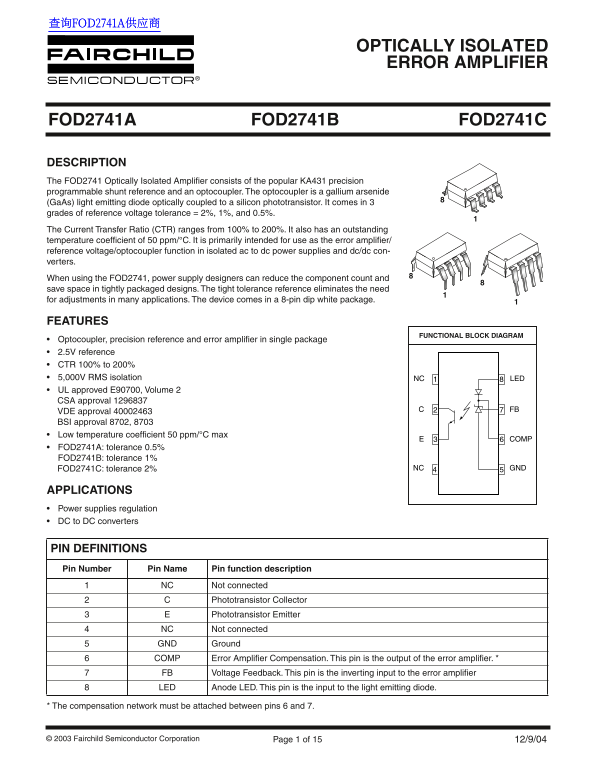

Page 1 Text Content

查询FOD2741A供应商

OPTICALLY ISOLATED ERROR AMPLIFIER

FOD2741A FOD2741B FOD2741C

DESCRIPTION The FOD2741 Optically Isolated Amplifier consists of the popular KA431 precision programmable shunt reference and an optocoupler. The optocoupler is a gallium arsenide (Ga As) light emitting diode optically coupled to a silicon phototransistor. It comes in 3 grades of reference voltage tolerance = 2%, 1%, and 0.5%. The Current Transfer Ratio (CTR) ranges from 100% to 200%. It also has an outstanding temperature coefficient of 50 ppm/°C. It is primarily intended for use as the error amplifier/ reference voltage/optocoupler function in isolated ac to dc power supplies and dc/dc con- verters. When using the FOD2741, power supply designers can reduce the component count and save space in tightly packaged designs. The tight tolerance reference eliminates the need for adjustments in many applications. The device comes in a 8-pin dip white package.

FEATURES

FUNCTIONAL BLOCK DIAGRAM

Optocoupler, precision reference and error amplifier in single package 2.5V reference CTR 100% to 200% 5,000V RMS isolation NC LED UL approved E90700, Volume 2 CSA approval 1296837

VDE approval 40002463 BSI approval 8702, 8703 Low temperature coefficient 50 ppm/°C max

FOD2741A: tolerance 0.5% FOD2741B: tolerance 1%

FOD2741C: tolerance 2% NC GND

APPLICATIONS Power supplies regulation DC to DC converters

PIN DEFINITIONS Pin Number Pin Name Pin function description

NC Not connected

Phototransistor Collector Phototransistor Emitter

NC Not connected GND Ground COMP Error Amplifier Compensation. This pin is the output of the error amplifier. * FB Voltage Feedback. This pin is the inverting input to the error amplifier LED Anode LED. This pin is the input to the light emitting diode.

* The compensation network must be attached between pins 6 and 7.

© 2003 Fairchild Semiconductor Corporation Page 1 of 15 12/9/04

Page Summary Contents For Fairchild FOD2741A Data Handbook

Page 1 查询FOD2741A供应商 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C DESCRIPTION The FOD2741 Optically Isolated Amplifier consists of the popular KA431 precision programmable shunt reference an...
Page 2 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C TYPICAL APPLICATION FAN4803 PWM Control FOD2741 ABSOLUTE MAXIMUM RATINGS (T = 25°C Unless otherwise specified.) Parameter Symbol Value Uni...
Page 3 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C ELECTRICAL CHARACTERISTICS (T = 25°C Unless otherwise specified.) INPUT CHARACTERISTICS Parameter Test Conditions Symbol Device Min. Typ. ...
Page 4 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C OUTPUT CHARACTERISTICS (T = 25°C Unless otherwise specified.) Parameter Test Conditions Symbol Min Typ Max Unit Collector dark current (V ...
Page 5 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C I(LED) I(LED) VCOMP VREF R2 VREF FIG. 1. VREF, VF, ILED (min) TEST CIRCUIT FIG. 2. ∆VREF/∆VCOMP TEST CIRCUIT I(LED) I(OFF) V(LED) FIG. 3. ...
Page 6 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C VCC = +5V DC IF = 10 m A 47Ω VIN 0.47V0.1 VPP Fig. 7 Frequency Response Test Circuit VCC = +5V DC IF = 0 m A (A) IF = 10 m A (B) 10VP-P Fi...
Page 7 OPTICALLY ISOLATED ef er en ce ol ta ge ERROR AMPLIFIER ff- ta te ur re nt n A up pl ur re nt FOD2741A FOD2741B FOD2741C TYPICAL PERFORMANCE CURVES Fig. 9a – LED Current vs. Cathode Voltage Fig. 9b – ...
Page 8 OPTICALLY ISOLATED ERROR AMPLIFIER ar ur re nt n A (I /IF ur re nt ra ns fe at io ol le ct or ur re nt FOD2741A FOD2741B FOD2741C Fig. 15 – Collector Current vs. Ambient Temperature Fig. 14 – Dark Cur...
Page 9 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C Fig. 20 – Voltage Gain vs. Frequency VCC=10V IF=10m A ol ta ge ai d B RL = 100Ω -5 RL = 500Ω RL = 1kΩ Frequency - k Hz 12/9/04Page 9 of 15...
Page 10 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C The FOD2741 Compensation The FOD2741 is an optically isolated error amplifier. It incor- The compensation pin of the FOD2741 provides the ...
Page 11 OPTICALLY ISOLATED IN LA IN LA ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C Package Dimensions (Through Hole) Package Dimensions (Surface Mount) PIN 1 PIN 1 0.070 (1.78) TYP 0.200 (5.08) 0.020 (0.51) MI...
Page 12 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C ORDERING INFORMATION Example: FOD2741A X Y Packaging Option T: 0.4” Lead Spacing V: VDE tested S: Surface Mount Lead Bend SD: Surface Moun...
Page 13 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C Carrier Tape Specifications User Direction of Feed Description Symbol Dimension in mm Tape Width 16.0 ± 0.3 Tape Thickness 0.30 ± 0.05 Spr...
Page 14 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C Reflow Profile em er at re °C 260 C peak Time above 183 C, <160 sec Ramp up = 2–10 C/sec Time (Minute) • Peak reflow temperature: 260 C...
Page 15 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2741A FOD2741B FOD2741C DISCLAIMER FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY...

Manual Details

Brand Fairchild
Pages 15
File Size 191.33 KB
Published June 18, 2026
3 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the primary use case for the FOD2741 Optically Isolated Amplifier?

It is primarily intended for use as an error amplifier/reference voltage/optocoupler function in isolated AC to DC power supplies and DC/DC converters.

Do I need external adjustments when using this device?

No. The tight tolerance reference eliminates the need for adjustments in many applications.

What is the maximum achievable isolation level?

The device provides 5,000V RMS isolation.

Which variant should I use if I require the lowest voltage tolerance?

Use the FOD2741A variant, which has a tolerance of 0.5%.
