Fairchild FDN340P Data Handbook

Summary

The FDN340P is a high-performance P-Channel MOSFET engineered for superior efficiency in advanced power systems. Featuring low on-state resistance and minimal gate charge, this component excels in maximizing battery life and switching reliability. The technical manual provides comprehensive specifications—including thermal characteristics, dynamic parameters, and voltage limits—making it essential for engineers designing load switching circuits, DC/DC converters, and portable electronics requiring robust power management solutions.

📄 Preview PAGE OF 8

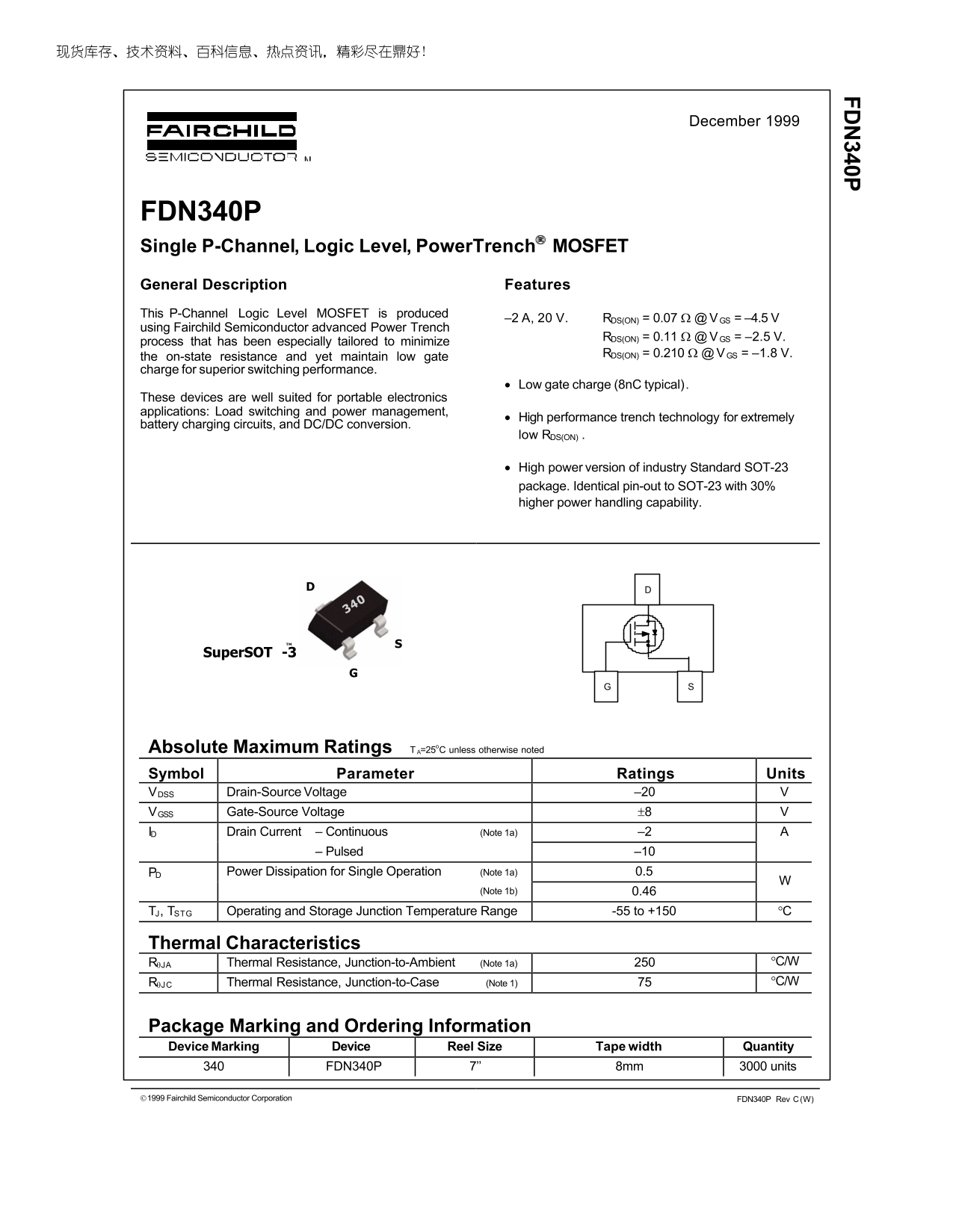

Page 1 Text Content

FD 340P

December 1999

FDN340P Single P-Channel, Logic Level, Power Trench MOSFET General Description Features This P-Channel Logic Level MOSFET is produced

–2 A, 20 V. RDS(ON) = 0.07 Ω @ VGS = –4.5 V

using Fairchild Semiconductor advanced Power Trench

RDS(ON) = 0.11 Ω @ VGS = –2.5 V.

process that has been especially tailored to minimize

RDS(ON) = 0.210 Ω @ VGS = –1.8 V.

the on-state resistance and yet maintain low gate charge for superior switching performance.

• Low gate charge (8n C typical).

These devices are well suited for portable electronics applications: Load switching and power management,

• High performance trench technology for extremely

battery charging circuits, and DC/DC conversion.

low RDS(ON) .

• High power version of industry Standard SOT-23 package. Identical pin-out to SOT-23 with 30% higher power handling capability.

Super SOT -3

Absolute Maximum Ratings T A=25o C unless otherwise noted

Symbol Parameter Ratings Units VDSS Drain-Source Voltage –20 VGSS Gate-Source Voltage ±8 ID Drain Current – Continuous (Note 1a) –2

– Pulsed –10

Power Dissipation for Single Operation (Note 1a) 0.5PD

(Note 1b) 0.46

TJ, TSTG Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Characteristics

RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity

FDN340P 7’’ 8mm 3000 units

1999 Fairchild Semiconductor Corporation FDN340P Rev C (W)

Page Summary Contents For Fairchild FDN340P Data Handbook

Page 1 FD 340P December 1999 FDN340P Single P-Channel, Logic Level, Power Trench MOSFET General Description Features This P-Channel Logic Level MOSFET is produced –2 A, 20 V. RDS(ON) = 0.07 Ω @ VGS = –4.5 V...
Page 2 FD 340P Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain–Source Breakdown Voltage VGS = 0 V, ID = –250 µA ...
Page 3 FD 340P IN LI - I , D IN -S (A Typical Characteristics IN -S -R ES IS V = -4.5VGS V = -2.5 VGS -V , DRAIN-SOURCE VOLTAGE (V) DS - I , DRAIN CURRENT (A) Figure 1. On-Region Characteristics. Figure 2. O...
Page 4 FD 340P r( t) , N LI IV -I IN -V , G -S LT (V Typical Characteristics TR IE TH IS TA I = -2AD V = -5VDS f = 1 MHz V = 0 VGS Q , GATE CHARGE (n C) -V , DRAIN TO SOURCE VOLTAGE (V) DS Figure 7. Gate Cha...
Page 5 Super SOTTM-3 Tape and Reel Data and Package Dimensions SSOT-3 Packaging Configuration: Figure 1.0 Customize Label Packaging Description: SSOT-3 parts are shipped in tape. The carrier tape is made fro...
Page 6 Super SOTTM-3 Tape and Reel Data and Package Dimensions, continued SSOT-3 Embossed Carrier Tape Configuration: Figure 3.0 B0 Wc User Direction of Feed Dimensions are in millimeter Pkg type A0 B0 D0 D1...
Page 7 Super SOTTM-3 Tape and Reel Data and Package Dimensions, continued Super SOT-3 (FS PKG Code 32) Scale 1:1 on letter size paper Dimensions shown below are in: inches [mil limeters] Part Weight per uni...
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ Hi S...
