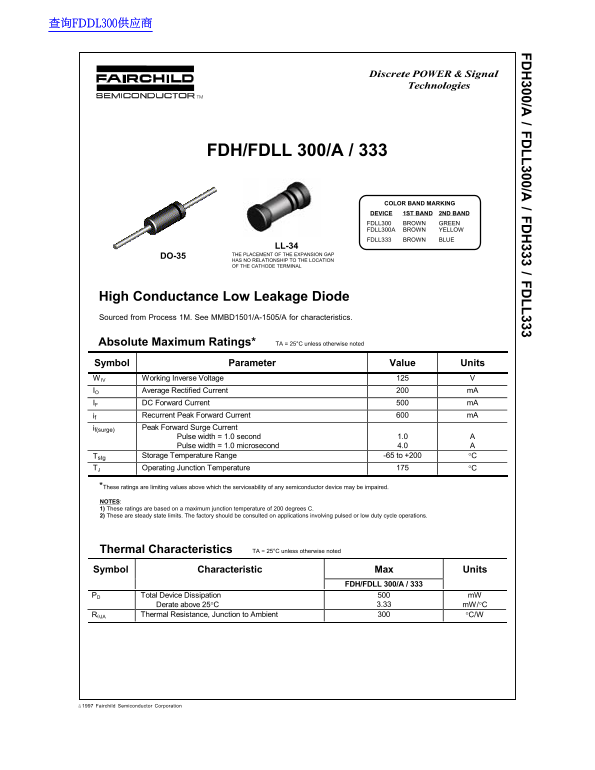

Page 1 Text Content
查询FDDL300供应商
Discrete POWER & Signal Technologies
FDH/FDLL 300/A / 333
COLOR BAND MARKING DEVICE 1ST BAND 2ND BAND FDLL300 BROWN GREEN FDLL300A BROWN YELLOW FDLL333 BROWN BLUE
LL-34
THE PLACEMENT OF THE EXPANSION GAP
DO-35
HAS NO RELATIONSHIP TO THE LOCATION OF THE CATHODE TERMINAL
High Conductance Low Leakage Diode Sourced from Process 1M. See MMBD1501/A-1505/A for characteristics.
Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units WIV Working Inverse Voltage IO Average Rectified Current m A IF DC Forward Current m A
if Recurrent Peak Forward Current m A if(surge) Peak Forward Surge Current
Pulse width = 1.0 second 1.0 Pulse width = 1.0 microsecond 4.0
Tstg Storage Temperature Range -65 to +200 °C
TJ Operating Junction Temperature °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 200 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics TA = 25°C unless otherwise noted Symbol Characteristic Max Units
FDH/FDLL 300/A / 333
PD Total Device Dissipation m W
Derate above 25°C 3.33 m W/°C
RθJA Thermal Resistance, Junction to Ambient °C/W
1997 Fairchild Semiconductor Corporation
