Fairchild FDB13AN06A0 FDP13AN06A0 Data Handbook

Summary

This datasheet summarizes the FDB13AN06A0 / FDP13AN06A0 N-Channel Power Trench MOSFET, an essential component for demanding automotive applications. Designed with AEC Q101 qualification, this device is ideal for high-reliability power conversion in VRMs, ABS systems, and powertrain management circuits (up to 62A). The manual provides complete technical specifications, including electrical characteristics, thermal derating curves, switching performance data, and packaging options for design engineers building sophisticated distributed power architectures.

📄 Preview PAGE OF 11

Page 1 Text Content

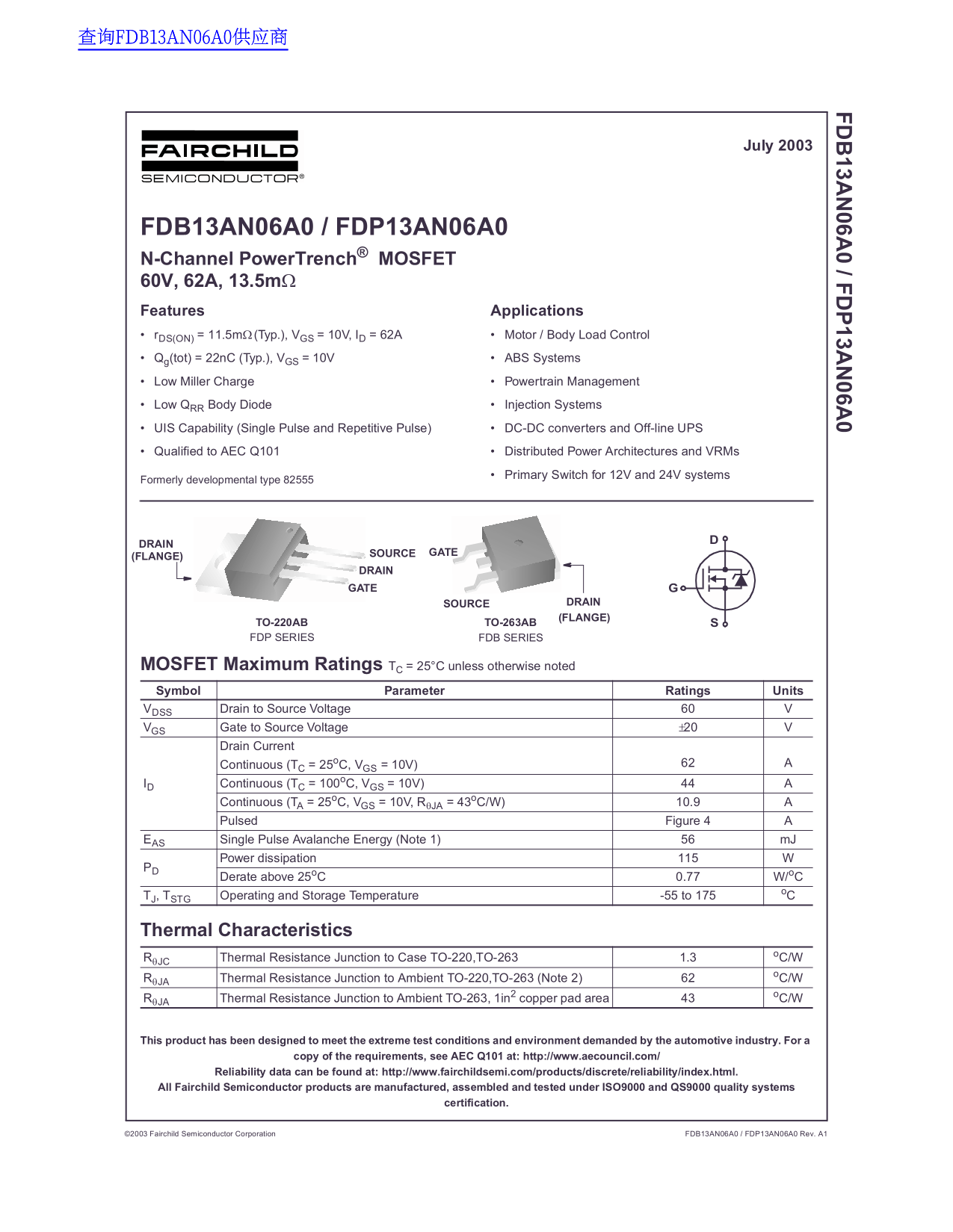

查询FDB13AN06A0供应商

July 2003

FDB13AN06A0 / FDP13AN06A0 N-Channel Power Trench® MOSFET 60V, 62A, 13.5mΩ Features Applications r DS(ON) = 11.5mΩ (Typ.), VGS = 10V, ID = 62A Motor / Body Load Control Qg(tot) = 22n C (Typ.), VGS = 10V ABS Systems Low Miller Charge Powertrain Management Low QRR Body Diode Injection Systems UIS Capability (Single Pulse and Repetitive Pulse) DC-DC converters and Off-line UPS Qualified to AEC Q101 Distributed Power Architectures and VRMs

Primary Switch for 12V and 24V systems

Formerly developmental type 82555

DRAIN

SOURCE(FLANGE) GATE

DRAIN GATE

SOURCE DRAIN (FLANGE)TO-220AB

STO-263AB

FDP SERIES FDB SERIES

MOSFET Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain to Source Voltage

VGS Gate to Source Voltage ±20 Drain Current

AContinuous (TC = 25o C, VGS = 10V)

ID Continuous (TC = 100o C, VGS = 10V)

Continuous (TA = 25o C, VGS = 10V, RθJA = 43o C/W) 10.9

Pulsed Figure 4 EAS Single Pulse Avalanche Energy (Note 1) m J Power dissipation

Derate above 25o C 0.77 W/o C

TJ, TSTG Operating and Storage Temperature -55 to 175

Thermal Characteristics

RθJC Thermal Resistance Junction to Case TO-220,TO-263 1.3

RθJA Thermal Resistance Junction to Ambient TO-220,TO-263 (Note 2)

RθJA Thermal Resistance Junction to Ambient TO-263, 1in2 copper pad area

This product has been designed to meet the extreme test conditions and environment demanded by the automotive industry. For a

copy of the requirements, see AEC Q101 at: http://www.aecouncil.com/

Reliability data can be found at: http://www.fairchildsemi.com/products/discrete/reliability/index.html.

All Fairchild Semiconductor products are manufactured, assembled and tested under ISO9000 and QS9000 quality systems

certification.

©2003 Fairchild Semiconductor Corporation FDB13AN06A0 / FDP13AN06A0 Rev. A1
