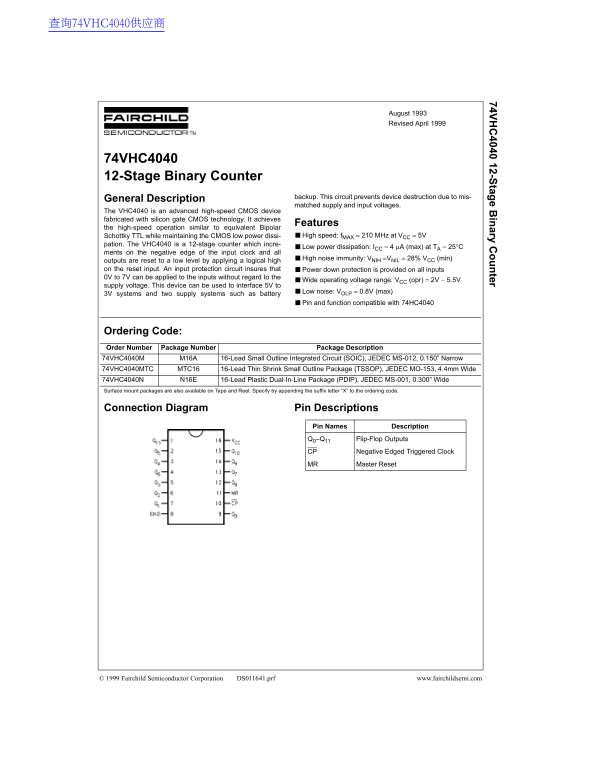

74VHC4040 12-Stage Binary Counter
backup. This circuit prevents device destruction due to mis-
General Description
matched supply and input voltages.
The VHC4040 is an advanced high-speed CMOS device fabricated with silicon gate CMOS technology. It achieves
Features
the high-speed operation similar to equivalent Bipolar
Schottky TTL while maintaining the CMOS low power dissi- High speed; f MAX = 210 MHz at VCC = 5V
pation. The VHC4040 is a 12-stage counter which incre-
Low power dissipation: ICC = 4 µA (max) at TA = 25°C
ments on the negative edge of the input clock and all
High noise immunity: VNIH =VNIL = 28% VCC (min)
outputs are reset to a low level by applying a logical high on the reset input. An input protection circuit insures that Power down protection is provided on all inputs 0V to 7V can be applied to the inputs without regard to the
Wide operating voltage range: VCC (opr) = 2V − 5.5V
supply voltage. This device can be used to interface 5V to
Low noise: VOLP = 0.8V (max)
3V systems and two supply systems such as battery
Pin and function compatible with 74HC4040
Ordering Code: Order Number Package Number Package Description 74VHC4040M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow 74VHC4040MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide 74VHC4040N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide Surface mount packages are also available on Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram Pin Descriptions
Pin Names Description
Q0–Q11 Flip-Flop Outputs
CP Negative Edged Triggered Clock
MR Master Reset
