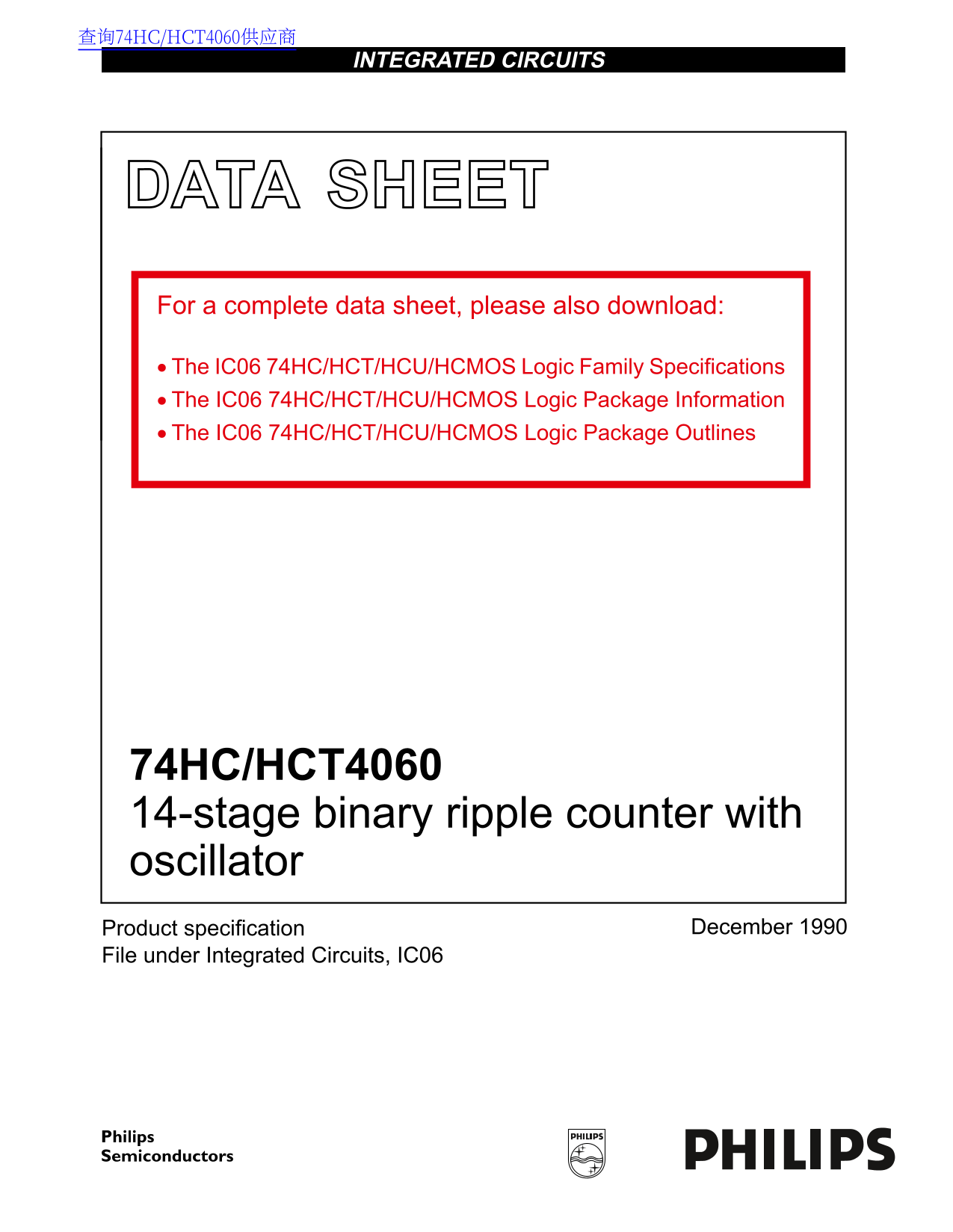

PHILIPS 74HC HCT4060 14-Stage Binary Ripple Counter With Oscillator - Data Manual, Specifications, User Guide
Summary
The 74HC/HCT4060 is a professional-grade 14-stage binary ripple counter, divider, and oscillator. This technical datasheet provides comprehensive specifications for electrical characteristics, timing parameters, and dynamic power dissipation across various supply voltages. It is essential documentation for electronic engineers and circuit designers building time-delay circuits, counters, or frequency dividers requiring reliable, high-speed digital logic components.
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 77.61 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I reset the 74HC/HCT4060 counter?
Applying a HIGH level to the Master Reset (MR) input will asynchronously reset the counter, independent of other inputs.
What are the recommended values for components when building an RC oscillator circuit?
The text recommends C > 50 pF, and for R, use values between 10 kΩ and 1 MΩ (R ≥ 1 kΩ to avoid start-up problems).
What is the maximum operating clock frequency?
The maximum clock frequency supported by the device is 87 MHz for the HC version and 88 MHz for the HCT version.
Are these devices compatible with other counter models?
Yes, the 74HC/HCT4060 are pin-compatible with the '4060' of the '4000B' series.
How is dynamic power dissipation calculated for the HC?
The total dynamic power (Pd) formula is: Pd = C × f × V + ∑(C × V × f) + 2C × V × f + ...
