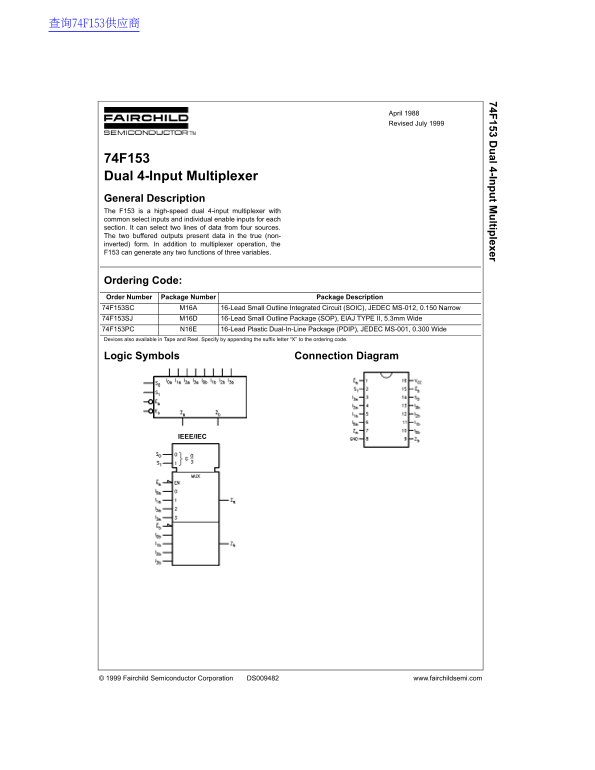

Fairchild 74F153 Data Handbook
Summary
The 74F153 is a high-speed dual 4-input multiplexer designed for moving data from multiple registers onto a common bus or generating complex logic functions. This product manual provides comprehensive technical details, including functional block diagrams, detailed truth tables defining its data selection process, and thorough electrical specifications (AC/DC) necessary for reliable circuit integration. It is essential reference material for electronic engineers and hardware designers requiring robust high-speed switching and data routing components.
Page 1 Text Content
74F 153 D al 4-In t M ltip lexer
April 1988 Revised July 1999
74F153 Dual 4-Input Multiplexer General Description The F153 is a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section. It can select two lines of data from four sources. The two buffered outputs present data in the true (non- inverted) form. In addition to multiplexer operation, the F153 can generate any two functions of three variables.
Ordering Code: Order Number Package Number Package Description 74F153SC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow 74F153SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74F153PC N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbols Connection Diagram
IEEE/IEC
© 1999 Fairchild Semiconductor Corporation DS009482 www.fairchildsemi.com
