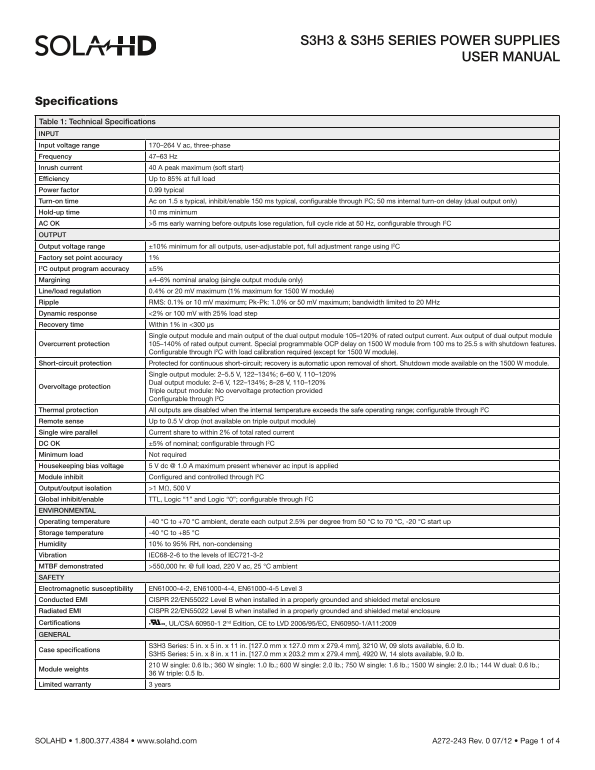

Page 1 Text Content
S3H3 & S3H5 SERIES p Ow ER Supp LIES
u SER MAnu AL
Specifications Table 1: Technical Specifications Inpu T Input voltage range 170–264 V ac, three-phase Frequency 47–63 Hz Inrush current 40 A peak maximum (soft start) Efficiency Up to 85% at full load power factor 0.99 typical Turn-on time Ac on 1.5 s typical, inhibit/enable 150 ms typical, configurable through I2C; 50 ms internal turn-on delay (dual output only) Hold-up time 10 ms minimum AC OK >5 ms early warning before outputs lose regulation, full cycle ride at 50 Hz, configurable through I2C Ou Tpu T Output voltage range ±10% minimum for all outputs, user-adjustable pot, full adjustment range using I2C Factory set point accuracy 1%
I2C output program accuracy ±5%
Margining ±4–6% nominal analog (single output module only) Line/load regulation 0.4% or 20 m V maximum (1% maximum for 1500 W module) Ripple RMS: 0.1% or 10 m V maximum; Pk-Pk: 1.0% or 50 m V maximum; bandwidth limited to 20 MHz Dynamic response <2% or 100 m V with 25% load step Recovery time Within 1% in <300 µs
Single output module and main output of the dual output module 105–120% of rated output current. Aux output of dual output module
Overcurrent protection 105–140% of rated output current. Special programmable OCP delay on 1500 W module from 100 ms to 25.5 s with shutdown features.
Configurable through I2C with load calibration required (except for 1500 W module).
Short-circuit protection Protected for continuous short-circuit; recovery is automatic upon removal of short. Shutdown mode available on the 1500 W module.
Single output module: 2–5.5 V, 122–134%; 6–60 V, 110–120% Dual output module: 2–6 V, 122–134%; 8–28 V, 110–120%
Overvoltage protection
Triple output module: No overvoltage protection provided Configurable through I2C
Thermal protection All outputs are disabled when the internal temperature exceeds the safe operating range; configurable through I2C Remote sense Up to 0.5 V drop (not available on triple output module) Single wire parallel Current share to within 2% of total rated current DC OK ±5% of nominal; configurable through I2C Minimum load Not required Housekeeping bias voltage 5 V dc @ 1.0 A maximum present whenever ac input is applied Module inhibit Configured and controlled through I2C Output/output isolation >1 MΩ, 500 V Global inhibit/enable TTL, Logic “1” and Logic “0”; configurable through I2C Env IROn MEn TAL Operating temperature -40 °C to +70 °C ambient, derate each output 2.5% per degree from 50 °C to 70 °C, -20 °C start up Storage temperature -40 °C to +85 °C Humidity 10% to 95% RH, non-condensing vibration IEC68-2-6 to the levels of IEC721-3-2 MTBF demonstrated >550,000 hr. @ full load, 220 V ac, 25 °C ambient SAFETy Electromagnetic susceptibility EN61000-4-2, EN61000-4-4, EN61000-4-5 Level 3 Conducted EMI CISPR 22/EN55022 Level B when installed in a properly grounded and shielded metal enclosure Radiated EMI CISPR 22/EN55022 Level B when installed in a properly grounded and shielded metal enclosure Certifications , UL/CSA 60950-1 2nd Edition, CE to LVD 2006/95/EC, EN60950-1/A11:2009 GEn ERAL
S3H3 Series: 5 in. x 5 in. x 11 in. [127.0 mm x 127.0 mm x 279.4 mm], 3210 W, 09 slots available, 6.0 lb.
Case specifications
S3H5 Series: 5 in. x 8 in. x 11 in. [127.0 mm x 203.2 mm x 279.4 mm], 4920 W, 14 slots available, 9.0 lb. 210 W single: 0.6 lb.; 360 W single: 1.0 lb.; 600 W single: 2.0 lb.; 750 W single: 1.6 lb.; 1500 W single: 2.0 lb.; 144 W dual: 0.6 lb.;
Module weights
36 W triple: 0.5 lb.
Limited warranty 3 years
SOLAHD • 1.800.377.4384 • www.solahd.com A272-243 Rev. 0 07/12 • Page 1 of 4
