Page 1

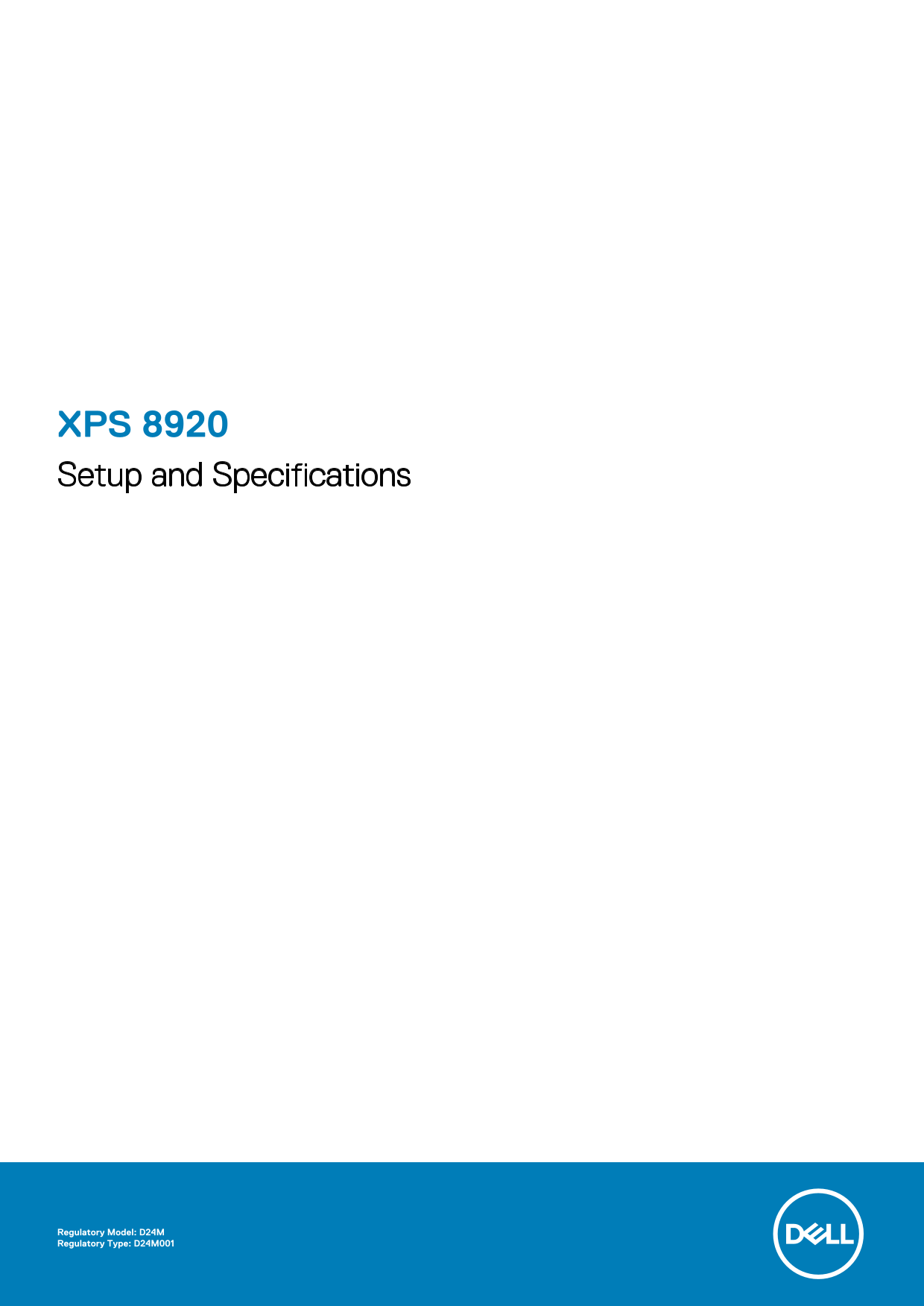

XPS 8920 Setup and Specifications Regulatory Model: D24M Regulatory Type: D24M001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Set up your computer................................................................................................................... 2 Create a USB recovery drive for Windows...............
Page 4
Set up your computer 1. Connect the keyboard and mouse. 2. Connect to your network using a cable, or connect to a wireless network. 3. Connect the display. NOTE: If you ordered your computer with a di...
Page 5
5. Press the power button. 6. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: Connect to a network for Windows updates. NOTE: ...
Page 6
Resources Description Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article...
Page 7
Create a USB recovery drive for Windows Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to c...
Page 8
Setting up the Virtual Reality (VR) headset — optional 1. Download and run the setup tools for your VR headset at www.dell.com/VRsupport. 2. Connect the VR headset to the designated USB 3.1 Gen 1 port...
Page 9
Views 1. Power button Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. Press to put the computer in sleep state if it is turned on. Press and hold for 4 second...
Page 10
1. Back panel Connect USB, audio, video and other devices. 2. PCI-Express x16 (graphics slot 1) Connect a PCI-Express card such as graphics, audio, or network card to enhance the capabilities of your ...
Page 11
Back panel 1. Network port Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or internet access. The two lights next to the connector indicate the connectivity status and...
Page 12
Connect the subwoofer. NOTE: For more information about the speaker setup, refer to the documentation that shipped with the speakers. Views
Page 13
Specifications Computer model Table 2. Computer model Computer model XPS 8920 System information Table 3. System information Processor 7th Generation Intel Core i5/i5k 7th Generation Intel Core i7/i7k...
Page 14
The following table lists the available memory configuration matrix: Table 7. Memory configuration matrix Configuration DIMM1 DIMM2 DIMM3 DIMM4 8 GB 4 GB 4 GB 8 GB 8 GB 16 GB 8 GB 8 GB 16 GB 16 GB 24 ...
Page 15
Table 10. Ports and connectors Front panel ports: Audio One Stereo Headphone jack One Microphone jack Four USB 3.0 ports Card Reader One 3-in-1 Card reader, supporting: Secure Digital (SD) Secure Digi...
Page 16
Storage Table 15. Storage specifications Interface SATA 6 Gbps for optical drive SATA 6 Gbps for hard drive M.2 for SSD (SATA or PCIe/NVMe) Hard drive Three 3.5-inch hard drives Solid-state drive One ...
Page 17
Table 18. Computer environment Operating Storage Temperature range 5°C to 35°C (41°F to 95°F) –40°C to 65°C (–40°F to 149°F) Relative humidity (maximum) 10% to 90% (non-condensing) 0% to 95% (non-cond...
Page 18
Intel Optane memory Enabling Intel Optane memory 1. On the taskbar, click the search box, and then type Intel Rapid Storage Technology. 2. Click Intel Rapid Storage Technology. The Intel Rapid Storage...
Page 19
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 19. Self-help resources Self-help resources R...
