Dell XPS 13 9310 Setup Guide & Specifications
Summary
This document is the Setup and Specifications guide for Dell XPS 13 9310 laptop. It provides technical information about this premium ultrabook, covering setup procedures, chassis views, processor options, memory configurations, storage capabilities, and display characteristics. The manual includes ports, wireless connectivity, battery specifications, and physical dimensions. Target users are consumers and IT administrators evaluating Dell XPS 13 laptops.
Page 1 Text Content

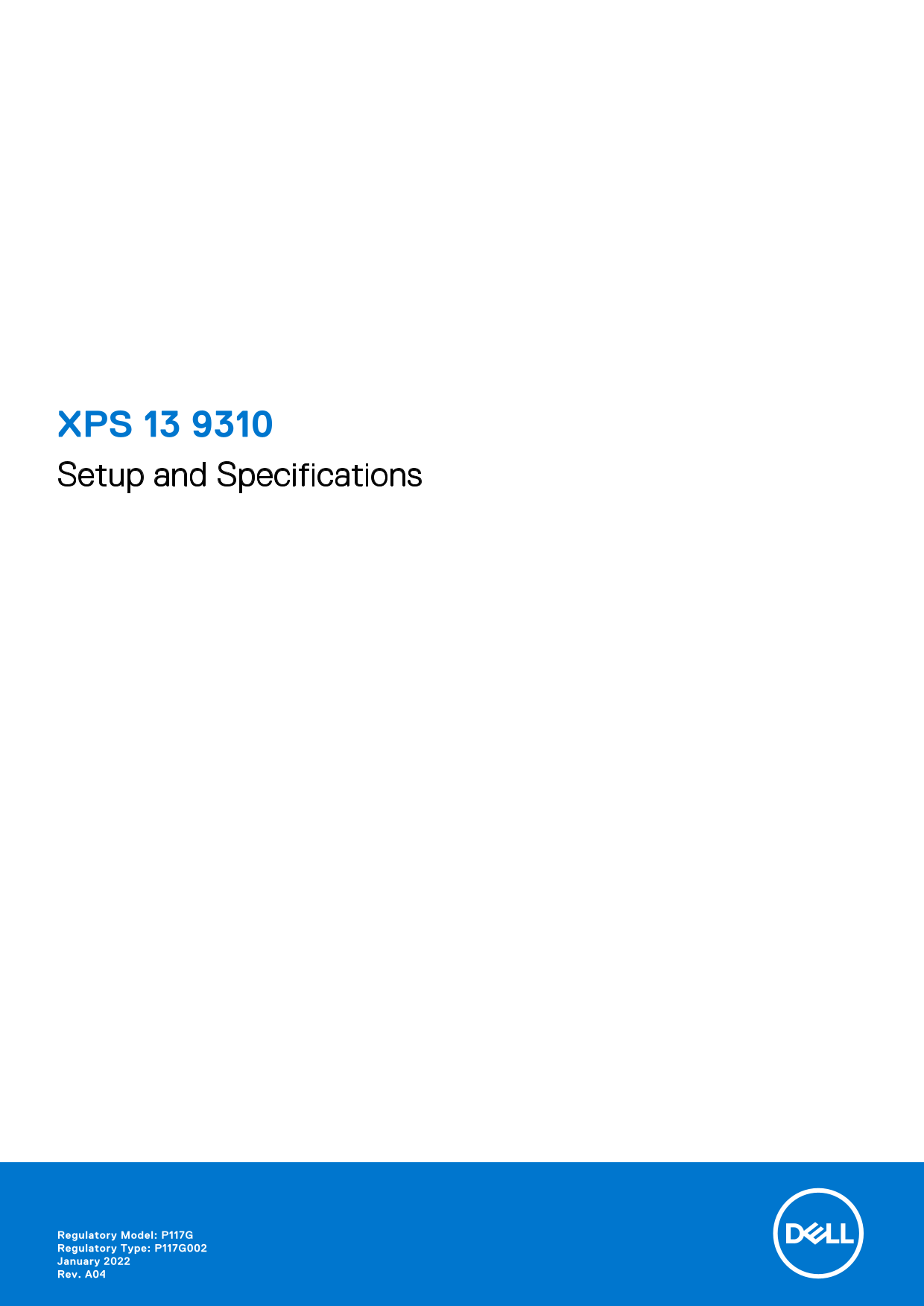

XPS 13 9310 Setup and Specifications
Regulatory Model: P117G Regulatory Type: P117G002 January 2022 Rev. A04
Page Summary Contents For Dell XPS 13 9310 Setup Guide & Specifications
Page 1
XPS 13 9310 Setup and Specifications Regulatory Model: P117G Regulatory Type: P117G002 January 2022 Rev. A04
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your XPS 13 9310............................................................................................... Chapter 2: Views of XPS 13 9310.................................
Page 4
Set up your XPS 13 9310 NOTE: The images in this document may differ from your computer, depending on the computer configuration you ordered. 1. Connect the power adapter to a power source and to the ...
Page 5
Table 2. Dell apps (continued) Dell app Description Access Dell applications, help articles, and other important information about your computer. My Dell also notifies you about the warranty status, r...
Page 6
Views of XPS 13 9310 1. Microphones (2) (optional) Provide digital sound input for audio recording, voice calls, and so on. NOTE: The microphones are optional, depending on the configuration ordered. ...
Page 7
micro Secure Digital High Capacity (micro SDHC) micro Secure Digital Extended Capacity (micro SDXC) 1. Thunderbolt 4 USB Type-C port with Power Delivery Supports USB4 Gen 3 Type-C, Display Port 2.0, T...
Page 8
Press to left-click. 3. Right-click area Press to right-click. 4. Power button with fingerprint reader Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. When th...
Page 9
NOTE: The infrared emitter is not available if the camera is not included in the configuration ordered. 1. Left speaker Provides audio output. 2. Service Tag label The Service Tag is a unique alphanum...
Page 10
Specifications of XPS 13 9310 Dimensions and weight The following table lists the height, width, depth, and weight of your XPS 13 9310. Table 3. Dimensions and weight Description Values Height: 14.80 ...
Page 11
Table 5. Chipset (continued) Description Values Processor 11th Generation Intel Core i3/i5/i7 DRAM bus width 128 bit Flash EPROM 32 MB (BIOS) PCIe bus Up to PCIe Gen 4.0 (Storage) Operating system You...
Page 12
Internal slots The following table lists the internal slots of your XPS 13 9310. Table 7. Internal slots Description Values M.2 One M.2 2230 or M.2 2280 slot for solid-state drive NOTE: To learn more ...
Page 13
Table 9. Wireless module specifications Description Option one Option two Model number Intel AX1650 Rivet Killer AX500-DBS Transfer rate Up to 2400 Mbps Up to 1774 Mbps Frequency bands supported 2.4 G...
Page 14
Storage This section lists the storage options on your XPS 13 9310. Your XPS 13 9310 supports one of the following storage options: One M.2 2230 solid-state drive One M.2 2280 solid-state drive Table ...
Page 15
Table 13. Keyboard specifications (continued) Description Values NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program. Camera Th...
Page 16
Table 15. Touchpad specifications (continued) Description Values Vertical Touchpad dimensions: Horizontal 112.30 mm (4.42 in.) Vertical 64.15 mm (2.53 in.) Touchpad gestures For more information about...
Page 17
Table 17. Battery specifications (continued) Description Values Height 98.60 mm (3.88 in.) Width 255.80 mm (10.07 in.) Depth 4.30 mm (0.17 in.) Temperature range: Operating 0°C to 45°C (32°F to 113°F)...
Page 18
Table 18. Display specifications (continued) Description Option one Option two Option three Refresh rate 60 Hz 60 Hz 60 Hz Horizontal view angle +/- 85 degrees +/- 85 degrees +/- 85 degrees Vertical v...
Page 19
Table 21. Computer environment Description Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) -40°C to 65°C (-40°F to 149°F) Relative humidity (maximum) 10% to 90% (non-condensing) 0% to 9...
Page 20
Comfort View Plus WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes. Blue light is a color in the light sp...
Page 21
Keyboard shortcuts of XPS 13 9310 NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Som...
Page 22
Table 23. List of keyboard shortcuts (continued) Function key Behavior fn + esc Toggle fn-key lock Keyboard shortcuts of XPS 13 9310
Page 23
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 24. Self-help resources Self-help resources R...
