Dell XPS 13 9333 Specifications
Summary
This specifications document covers Dell XPS 9333 laptop (Model P29G). It provides technical specs and port descriptions including power, headset, USB 3.0 with PowerShare, Mini DisplayPort, battery lights, power button, and touchpad. Includes charging capabilities and data transfer speeds. Describes left, right, and base views. Intended for users and support personnel needing XPS 9333 hardware details.
Page 1 Text Content
Views
Specifications
© 2013 Dell Inc. Trademarks used in this text: Dell™, the DELL logo, and XPS™ are trademarks of Dell Inc. Intel® is a registered trademark and Core™ is a trademark of Intel Corporation in the U.S. and other countries. Bluetooth® is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license. 2013 ‑ 10 Rev. A00 Regulatory model: P29G | Type: P29G003
NOTE: The images in this document may differ from your computer
Computer model: XPS 9333 depending on the configuration you ordered.
Page Summary Contents For Dell XPS 13 9333 Specifications

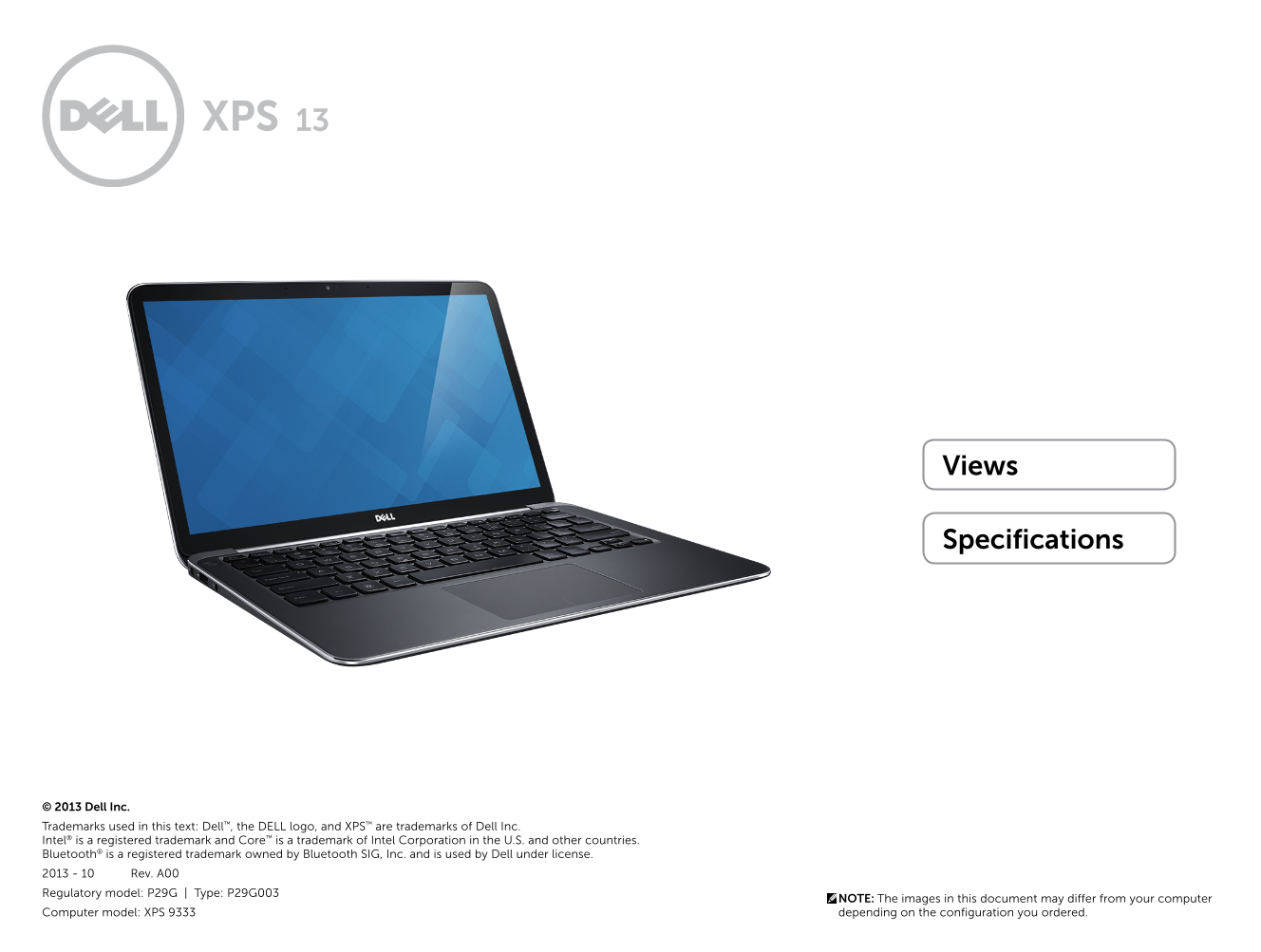

Page 1
Views Specifications © 2013 Dell Inc. Trademarks used in this text: Dell™, the DELL logo, and XPS™ are trademarks of Dell Inc. Intel® is a registered trademark and Core™ is a trademark of Intel Corpor...
Page 2
Views Specifications Power-adapter port Headset port USB 3.0 port with Power Share Display Power-adapter port USB 3.0 port with Power Share Connect a power adapter to provide power to your computer Co...
Page 3
Views Specifications Mini Display Port Battery-charge status lights (5) Battery-status button USB 3.0 port with Power Share Display Mini Display Port USB 3.0 port with Power Share Connect an external ...
Page 4
Views Specifications Power button Right-click area Left-click area Touchpad Display Power button Left-click area Press to turn on the computer if it is turned off or in Sleep state. Press to left‑clic...
Page 5
Views Specifications Display Camera-status indicator Camera Ambient-light sensor Digital microphones (2) Power-status light Display Camera Camera-status indicator Allows you to video chat, capture pho...
Page 6
Specifications Views Dimensions and Weight Height: 0.24 inches (6 mm) 0.71 inches (18 mm) Width 12.44 inches (316 mm) Depth 8.07 inches (205 mm) Weight (minimum) 2.94 lb (1.33 kg) NOTE: The weight of ...
Page 7
Specifications Views System Information Computer model XPS 9333 Processor Intel Core i3 (4th generation) Intel Core i5 (4th generation) Intel Core i7 (4th generation) Chipset Integrated Premium PCH Di...
Page 8
Specifications Views Memory Type Dual‑channel DDR3L Speed Up to 1600 MHz Configurations supported 4 GB and 8 GB Dimensions and System Ports and Memory Communications Video Audio Storage Weight Informa...
Page 9
Specifications Views Ports and Connectors External: USB Two USB 3.0 ports with Power Share Mini Display Port One mini Display Port Audio One headset (microphone and headphone combo) port Internal: NGF...
Page 10
Specifications Views Communications Wireless Wi‑Fi 802.11 ac, Wi‑Fi 802.11 n Bluetooth 4.0 Intel Wireless Display (Wi Di) Dimensions and System Ports and Memory Communications Video Audio Storage Weig...
Page 11
Specifications Views Video Controller Intel Integrated graphics HD4000 series Intel Integrated graphics HD5000 Memory Shared system memory External display support Mini Display Port Wireless Display (...
Page 12
Specifications Views Audio Controller Realtek ALC3661 Speakers Two Speaker output: Average 1 watt Peak 1.5 watt Microphone Digital array‑microphones in camera assembly Volume controls Program menus an...
Page 13
Specifications Views Storage Interface m SATA Solid‑state drive (SSD) One m SATA for primary storage (supports Intel Rapid Start Technology) Capacity 128 GB, 256 GB, and 512 GB Dimensions and System P...
Page 14
Specifications Views Display Type 13.3 inch WLED Resolution 1920 x 1080 full HD Dimensions: Height 7.54 inches (191.54 mm) Width 11.90 inches (302.27 mm) Diagonal 13.30 inches (337.82 mm) Refresh rate...
Page 15
Specifications Views Keyboard Type Backlit chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform seconda...
Page 16
Specifications Views Camera Resolution: Still image 1.3 megapixels Video (maximum) 1280 x 720 (HD) at 30 fps Diagonal viewing angle 66 degrees Dimensions and System Ports and Memory Communications Vid...
Page 17
Specifications Views Touchpad Resolution: Horizontal 1275 dpi Vertical 1656 dpi Dimensions: Width 3.81 inches (96.8 mm) Height 2.31 inches (58.8 mm) Dimensions and System Ports and Memory Communicatio...
Page 18
Specifications Views Battery Type 6‑cell ‘smart lithium’ ‑ 55 Whr Dimensions: Width 4.45 inches (113.16 mm) Depth 11.30 inches (287 mm) Height 0.20 inches (5.16 mm) Weight 0.68 lb (310 gm) Voltage 7.4...
Page 19
Specifications Views Power Adapter Type 45 W Input voltage 100 VAC–240 VAC Input current (maximum) 1.30 A Input frequency 50 Hz–60 Hz Output current (continuous) 2.31 A Rated output voltage 19.50 VDC ...
Page 20
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0 °C to 40 °C (32 °F to 104 °F) –40 °C to 65 °C (–40 °F to 149...
