Dell Wyse Latitude 5280 Mobile Thin Client User Guide
Summary
User guide for the Dell Wyse Latitude 5280 mobile thin client running Windows 10 IoT Enterprise. Covers hardware installation, BIOS configuration, user login and account management, Dell Wyse Management Suite agent setup, connectivity options including Wi-Fi and mobile broadband, display settings, peripheral connections, and system recovery procedures. Describes thin client-specific features such as write filters, centralized management, and remote configuration capabilities. Intended for end users and IT administrators deploying thin clients in SMB, finance, federal, and education sectors.
Page 1 Text Content
Dell Wyse Latitude 5280 Mobile Thin Client User Guide
Regulatory Model: P72S Regulatory Type: P72S001
Page Summary Contents For Dell Wyse Latitude 5280 Mobile Thin Client User Guide

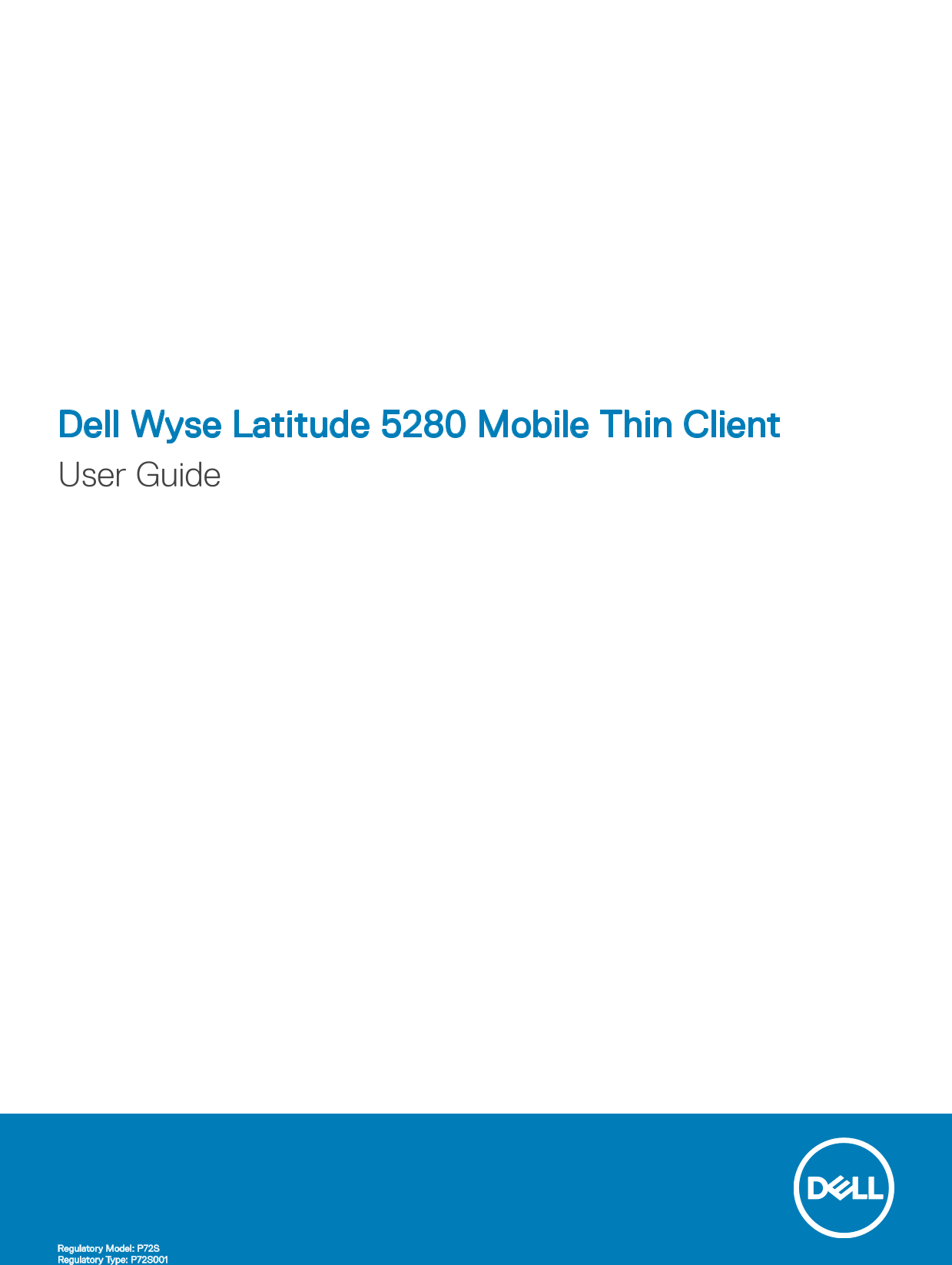

Page 1
Dell Wyse Latitude 5280 Mobile Thin Client User Guide Regulatory Model: P72S Regulatory Type: P72S001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Welcome to Wyse Latitude 5280 mobile thin client Dell Latitude 5280 is an affordable commercial-class mobile thin client that delivers relevant features to small and medium-sized businesses (SMBs). Ta...
Page 4
Hardware installation Dell Wyse Latitude 5280 mobile thin client hardware installation For more information on the hardware installation, see Dell Wyse Latitude 5280 mobile thin client Quick Start Gui...
Page 5
Logging in to the Wyse Latitude 5280 mobile thin client Whatever you view during the turn on or during the reboot of thin client device depends on the configurations done by the administrator. After c...
Page 6
Displays Connecting to monitor The Latitude 5280 Mobile thin client can connect to external monitors by using either or both of the following ports: HDMI port VGA port For more information on configur...
Page 7
Networks Using Dynamic Host Configuration Protocol (DHCP) A thin client is configured to obtain its IP address and network configurations from a DHCP server. The DHCP server provides the IP address or...
Page 8
Peripherals Configuring and using peripherals The thin client contains the following ports and slots: VGA port Security lock AC power RJ45 port HDMI port Display Port or USB 3.0 over Type-C port USB 3...
Page 9
Click Add a Device. The Add a Device wizard is displayed. To turn on Bluetooth on the Bluetooth-enabled device, refer to the device documentation and follow the instructions. When the thin client iden...
Page 10
Power state You can change the power state options of the thin client by following the steps mentioned here: 1 On the taskbar, click Start Menu. 2 From the Start menu, click Power and select any of th...
Page 11
Software Configuring connections locally When you log in to your mobile thin client as a User, the Windows desktop displays following notable features: Citrix Receiver Remote Desktop connection v Work...
Page 12
The Virtual desktop of the Citrix Receiver is displayed. 7 In the Virtual desktop window, click Add Apps (+) > All Applications. You can select or clear the application check boxes. The selected ap...
Page 13
The remote desktop is displayed with the connection bar on the top if you have selected the Display the connection bar when I use the full screen check box in step 3 b. Configuring v Workspace connect...
Page 14
Use all my monitors for the remote session Display connection bar Pin connection bar In the Device settings section, configure the following options: Select the following check boxes as per your requi...
Page 15
From the Domain drop-down list, select the domain where the server is located. Click Login. The VMware Horizon Client connects to the selected desktop. After connection is established, the list of pub...
Page 16
To end the Ericom Power Term Web Connect session, click Logout on the left side of the Power Term Web Connect Application Portal page. Software
Page 17
Management interface WDM software for remote administration WDM software enables you to configure, monitor, and manage the Dell Wyse endpoint devices. WDM provides the following important features: Re...
Page 18
Figure 1. Auto discovery The Auto Discovery option searches in the order of WDM and CCM and gets connected to the management server that is available. Configuring WDM by using WDA In the WDA UI, enter...
Page 19
NOTE: Whenever Client is registered to a WDM server, all the details that are configured for discovery are taken from that WDM server. To connect with WDA Management Server, enable any of the followin...
Page 20
System specifications The following table provides the specification of the Wyse Latitude 5280 mobile thin client: Table 1. System specifications Features Latitude 5280 Processor type Intel Kaby Lake ...
Page 21
Features Latitude 5280 Bluetooth BT 4.x through WLAN card I/O 1 x VGA 1 x Display Port 1 x USB 2.0 2x USB 3.0 Media card reader 1.3–megapixel camera Operating Systems Windows 10 Io T Enterprise Redsto...
Page 22
Troubleshooting Enhanced Pre-Boot System Assessment (e PSA) diagnostics The e PSA diagnostics (also known as system diagnostics) performs a complete check of your hardware. The e PSA is embedded with ...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 22 |
| File Size | 267.04 KB |
| Published | June 26, 2026 |
5 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I run a full hardware diagnostic check?
Start up the computer and press F12 key, then select the Diagnostics option to run the Enhanced Pre-boot System Assessment.
How many ports does the thin client include for peripherals?
It includes VGA port, HDMI port, RJ45 port, DisplayPort or USB 3.0 over Type-C port, and multiple USB 3.0 ports.
What operating system is compatible with this model?
The Latitude 5280 supports Windows 10 IoT Enterprise (WIE10).
When changing a user's password, what precautions are necessary?
You must disable the Unified Write Filter (UWF) before making changes and ensure you re-enable it afterward.
