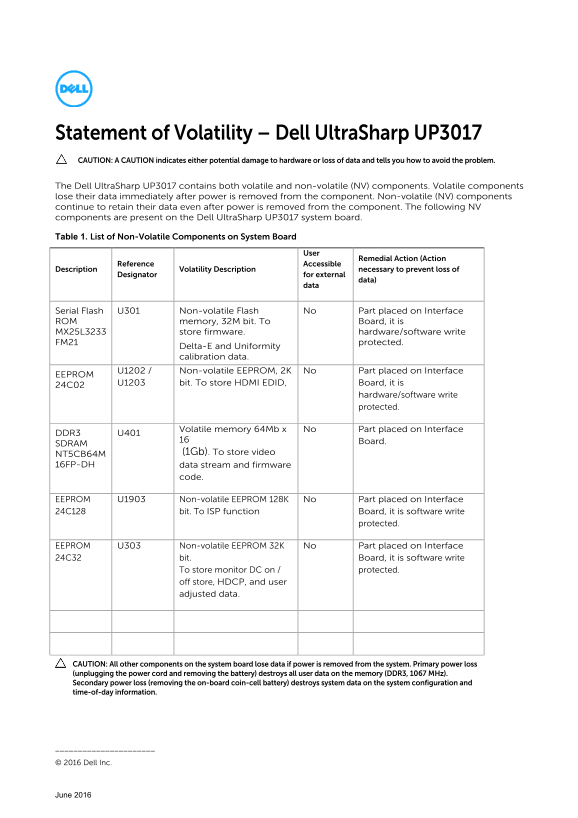

Statement of Volatility – Dell Ultra Sharp UP3017 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Ultra Sharp UP3017 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Dell Ultra Sharp UP3017 system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Reference Accessible
Description Volatility Description necessary to prevent loss of
Designator for external
data)
Serial Flash U301 Non-volatile Flash No Part placed on Interface ROM memory, 32M bit. To Board, it is MX25L3233 store firmware. hardware/software write FM21 protected.
Delta-E and Uniformity calibration data.
U1202 / Non-volatile EEPROM, 2K No Part placed on Interface
EEPROM
U1203 bit. To store HDMI EDID, Board, it is
hardware/software write protected.
No Part placed on Interface
DDR3 U401 Volatile memory 64Mb x
Board.
SDRAM
NT5CB64M (1Gb). To store video
16FP-DH data stream and firmware
code.
EEPROM U1903 Non-volatile EEPROM 128K No Part placed on Interface 24C128 bit. To ISP function Board, it is software write
protected.
EEPROM U303 Non-volatile EEPROM 32K No Part placed on Interface 24C32 bit. Board, it is software write
To store monitor DC on / protected. off store, HDCP, and user adjusted data.
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR3, 1067 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
© 2016 Dell Inc.
June 2016
